Timer/Control Unit: Service and Repair

ELECTRONIC TIME AND ALARM CONTROL MODULE




1. Disconnect the negative battery terminal.

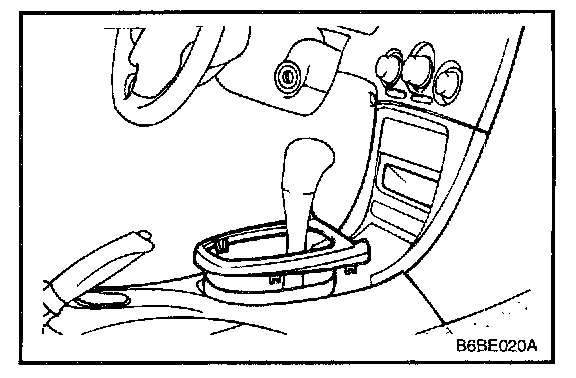

2. Remove the shift lever boot using a (-) driver.

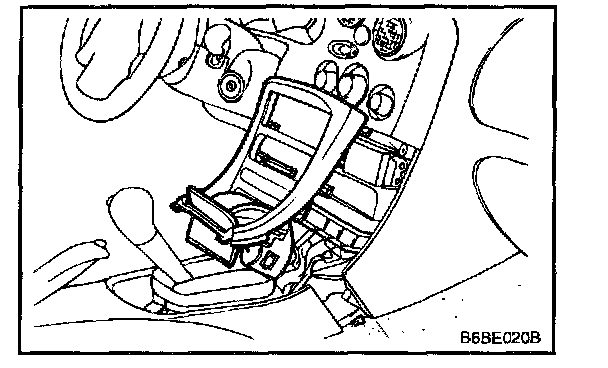

3. Remove the center facia panel.

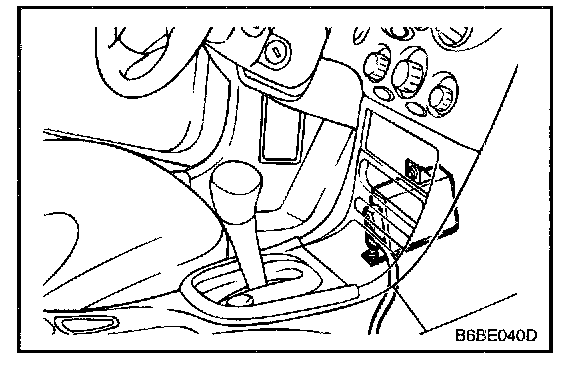

4. After removal of the ETACM (Electronic Time and Alarm Control Module) mounting bolts (2EA), disconnect its connector.
5. Installation is the reverse of removal.
