Connector Identification

A connector identification symbol Consists of a wiring harness location classification symbol corresponding to a wiring harness location and number corresponding to the connector. These connector locations can be found in the HARNESS LAYOUTS.

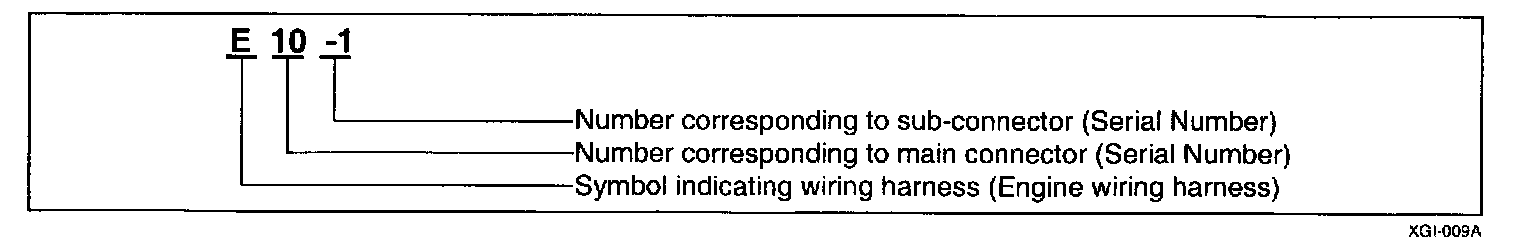

For example





NOTE: Connectors which connect each wiring harness are represented by the following symbols.

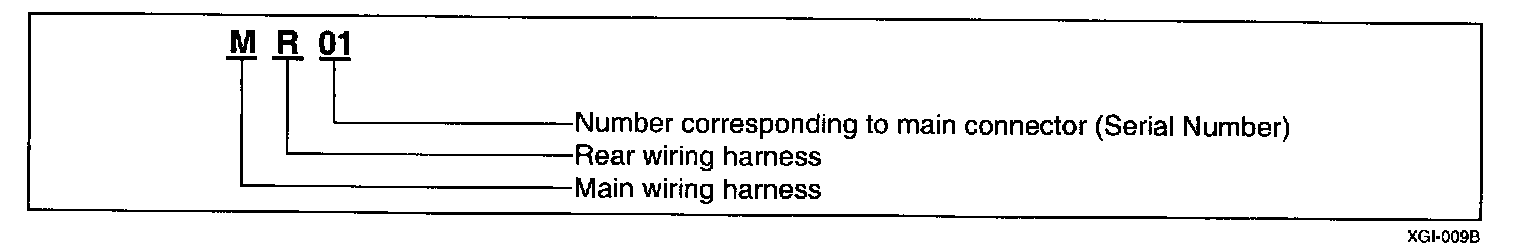

For example:
