Reassembly

Standard values, such as torques and certain adjustments, must be strictly observed when reassembling all parts.

If removed, replace the following parts should always be replaced with new ones.
1. Oil seals
2. Gaskets
3. O-rings
4. Lockwashers
5. Cotter pins (split pins)
6. Plastic nuts




Depending on their location

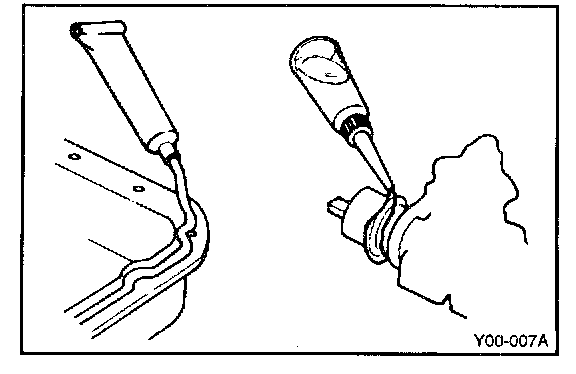

1. Sealant should be applied to gaskets.
2. Oil should be applied to the moving components of parts.
3. Specified oil or grease should be applied at the prescribed locations (oil seals, etc.) before assembling.
