Front Wheel Speed Sensor

Remove the front wheel speed sensor mounting bolt.

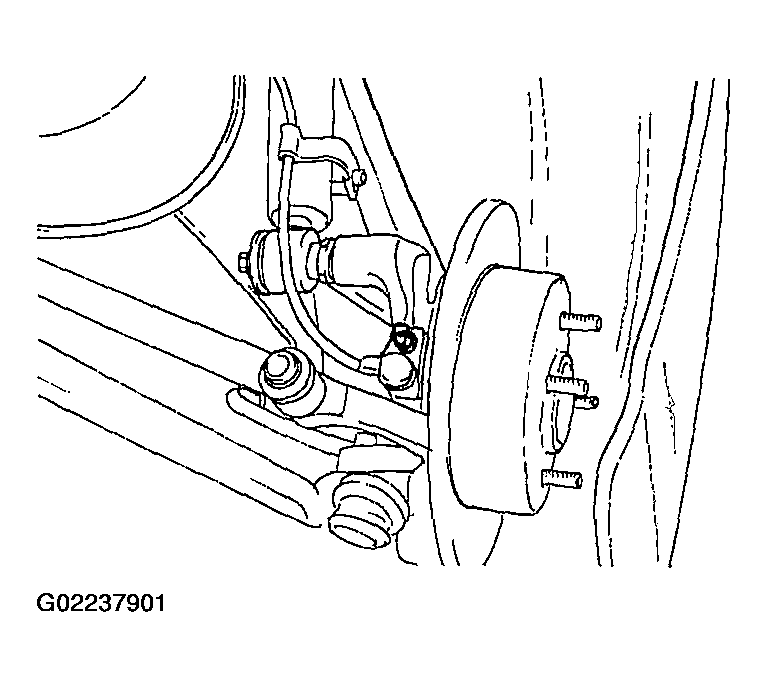

Fig 1: Identifying Front Wheel Speed Sensor Mounting Bolt
Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector.

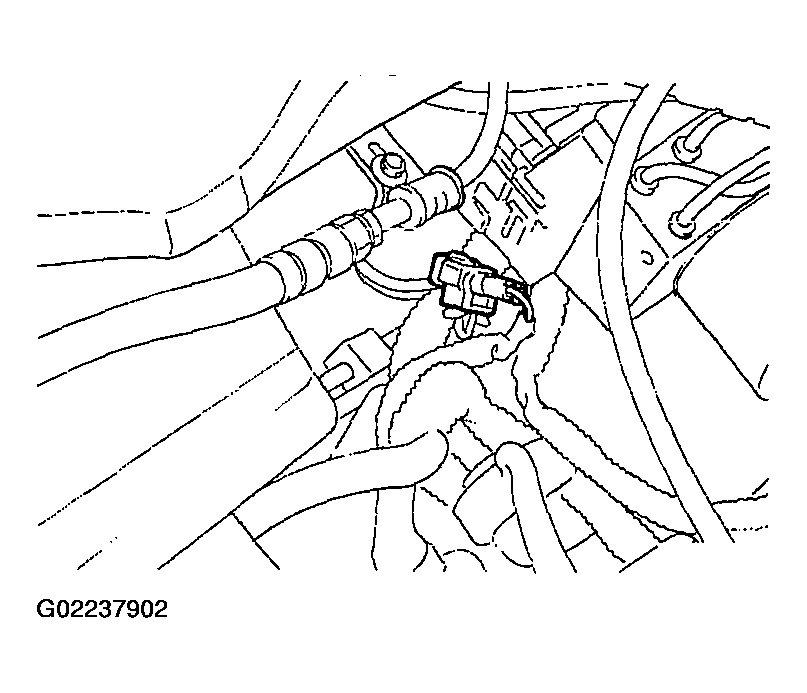

Fig 2: Identifying Front Wheel Speed Sensor Connector
