Timer/Control Unit, Accessory Control

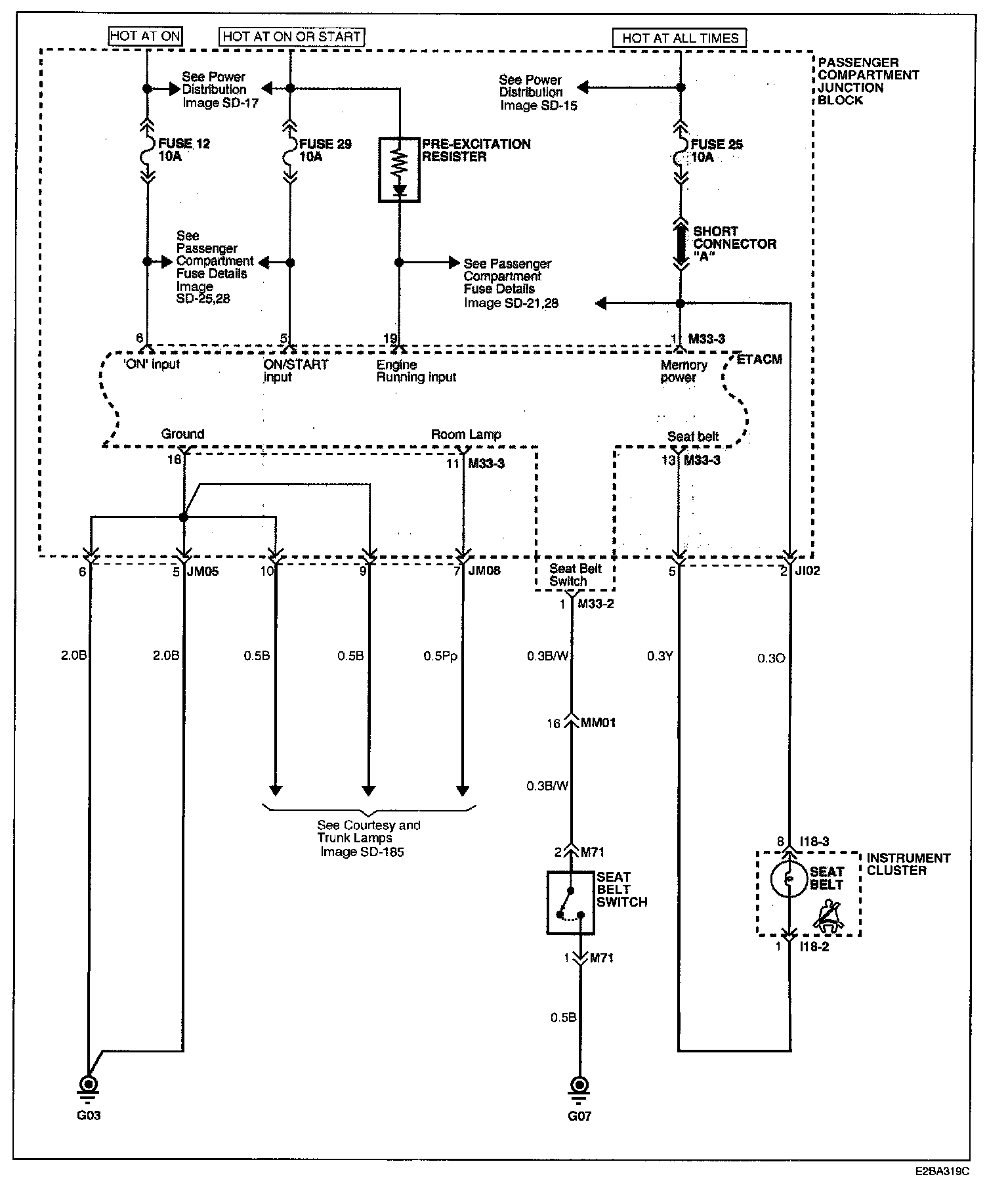

Image SD-103 - ETACS (Electronic Time & Alarm Control System) (2):

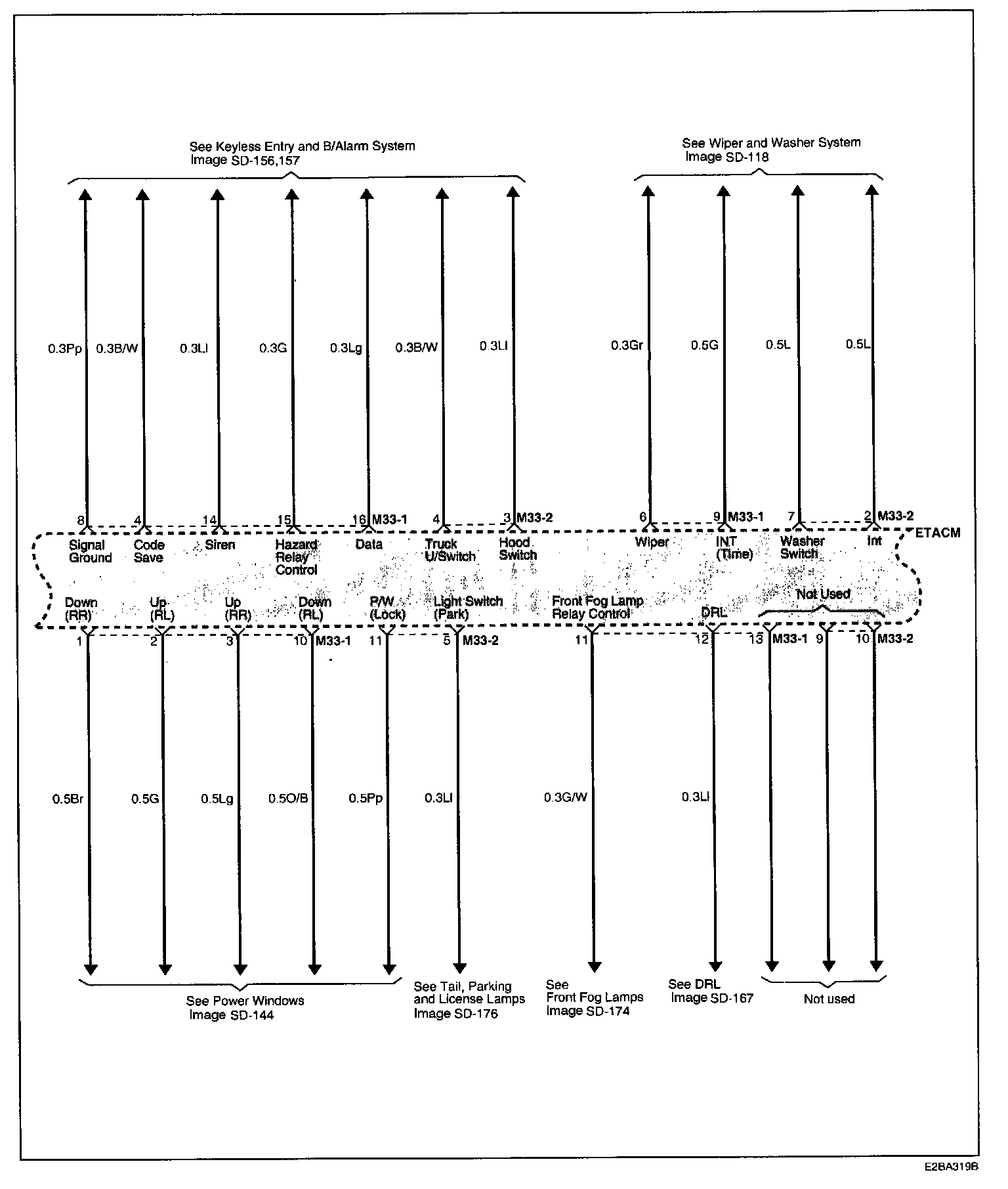

Image SD-104 - ETACS (Electronic Time & Alarm Control System) (3):

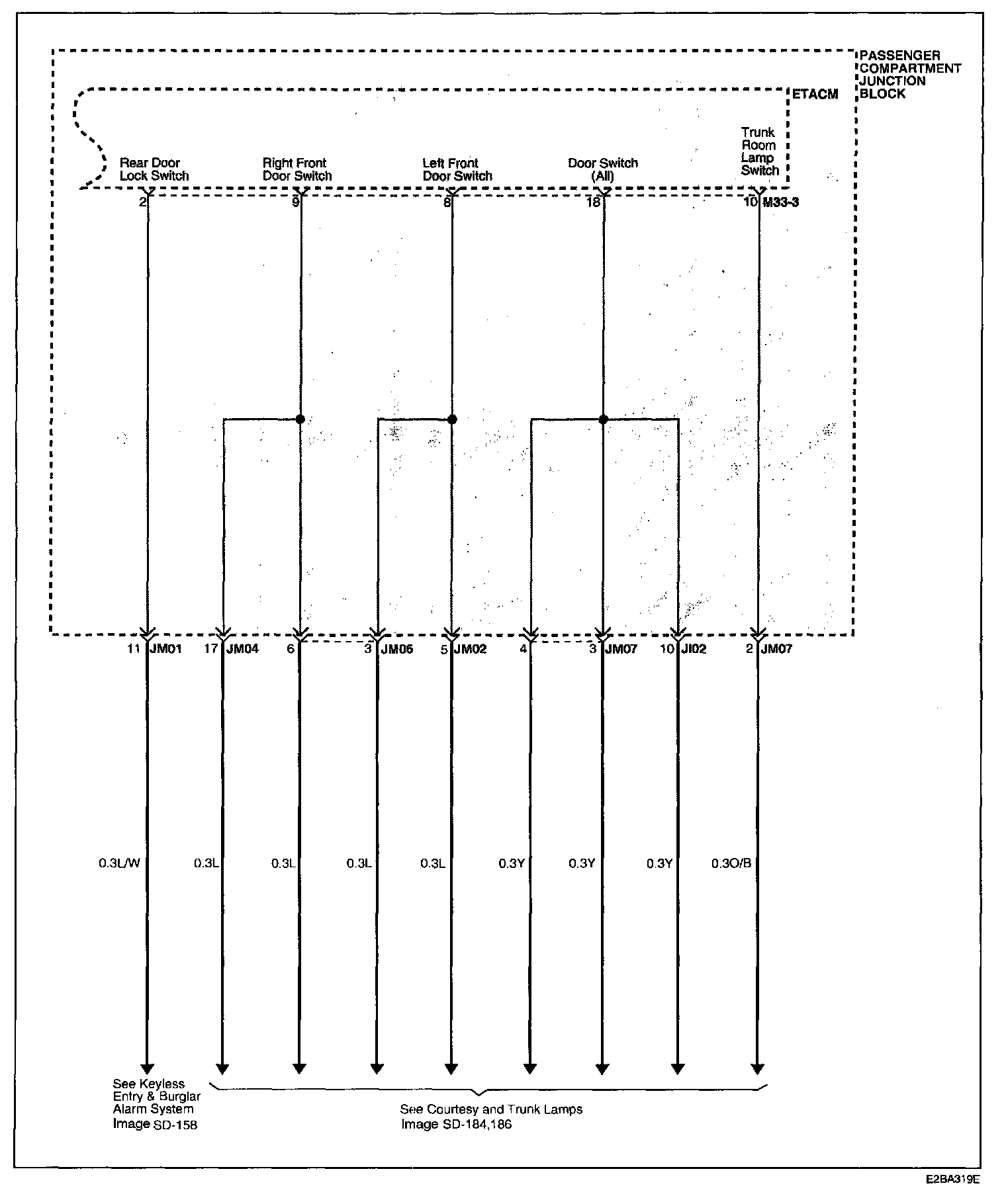

Image SD-105 - ETACS (Electronic Time & Alarm Control System) (4):

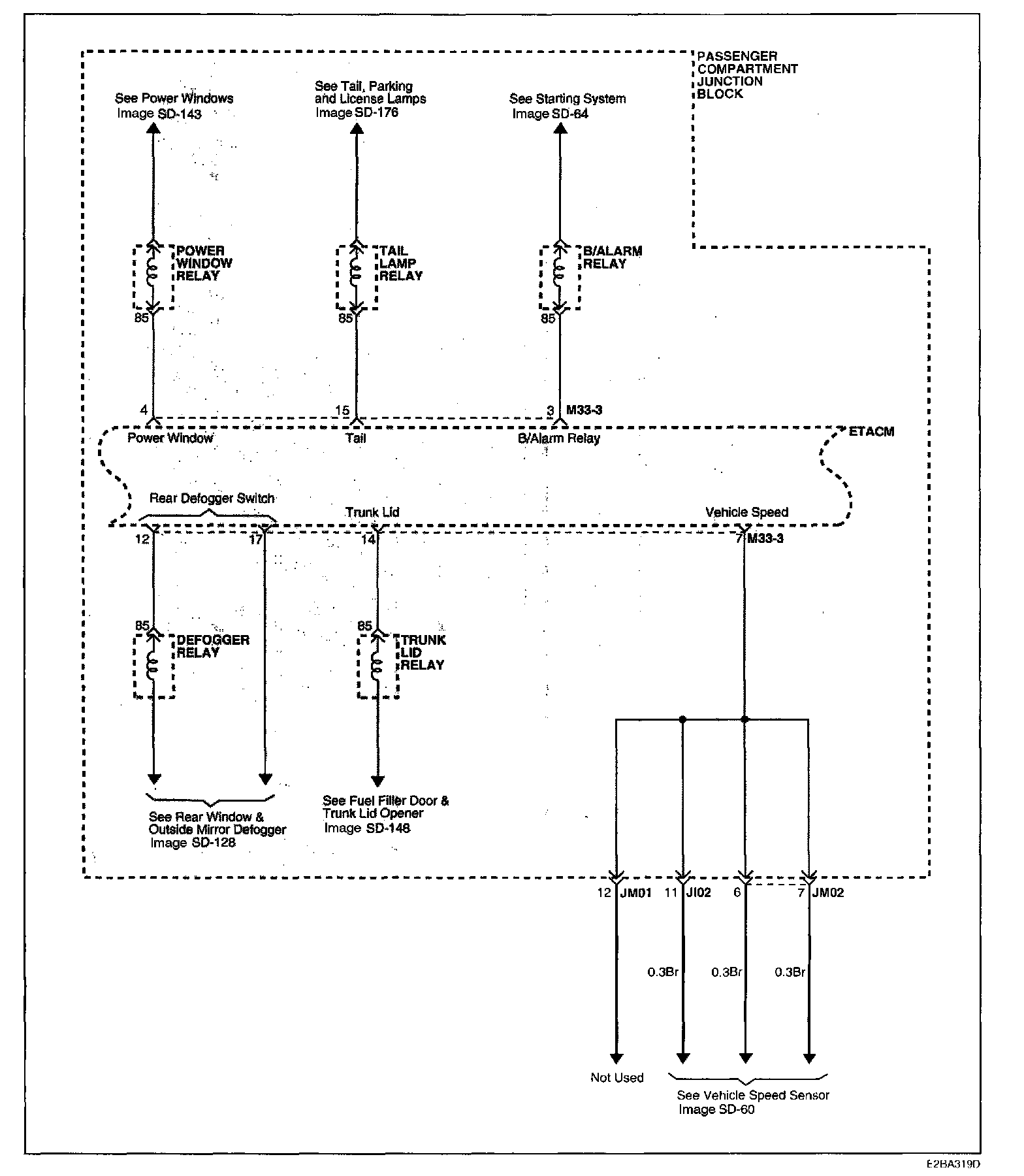

Image SD-106 - ETACS (Electronic Time & Alarm Control System) (5):



ETACS Circuit Diagram:
