Inspection Procedure 4

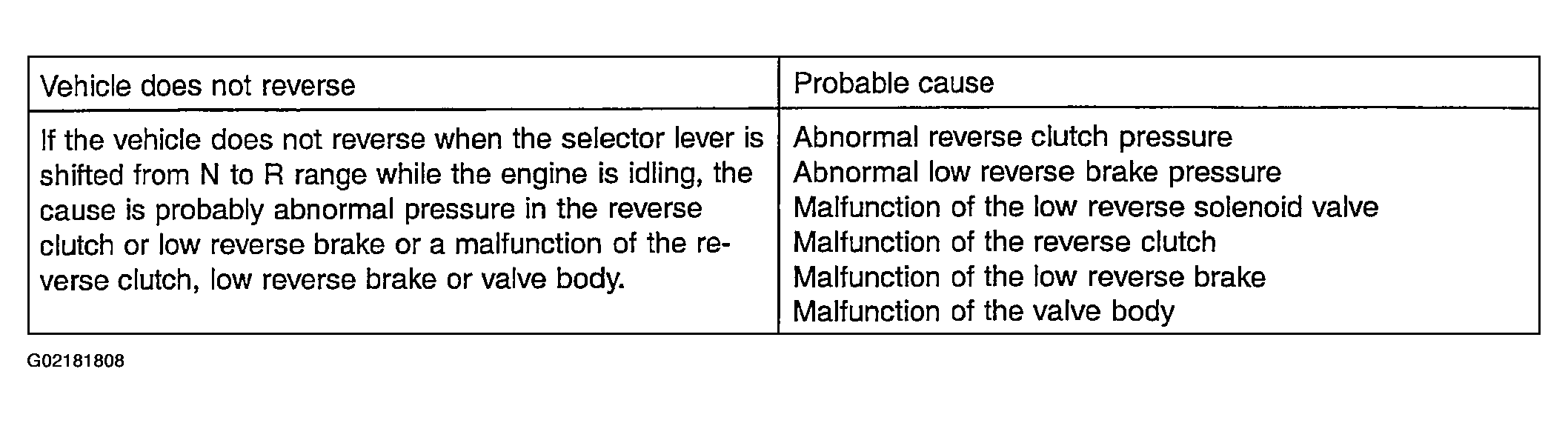

Fig 1: Vehicle Will Not Reverse Possible Causes Table
G02181808

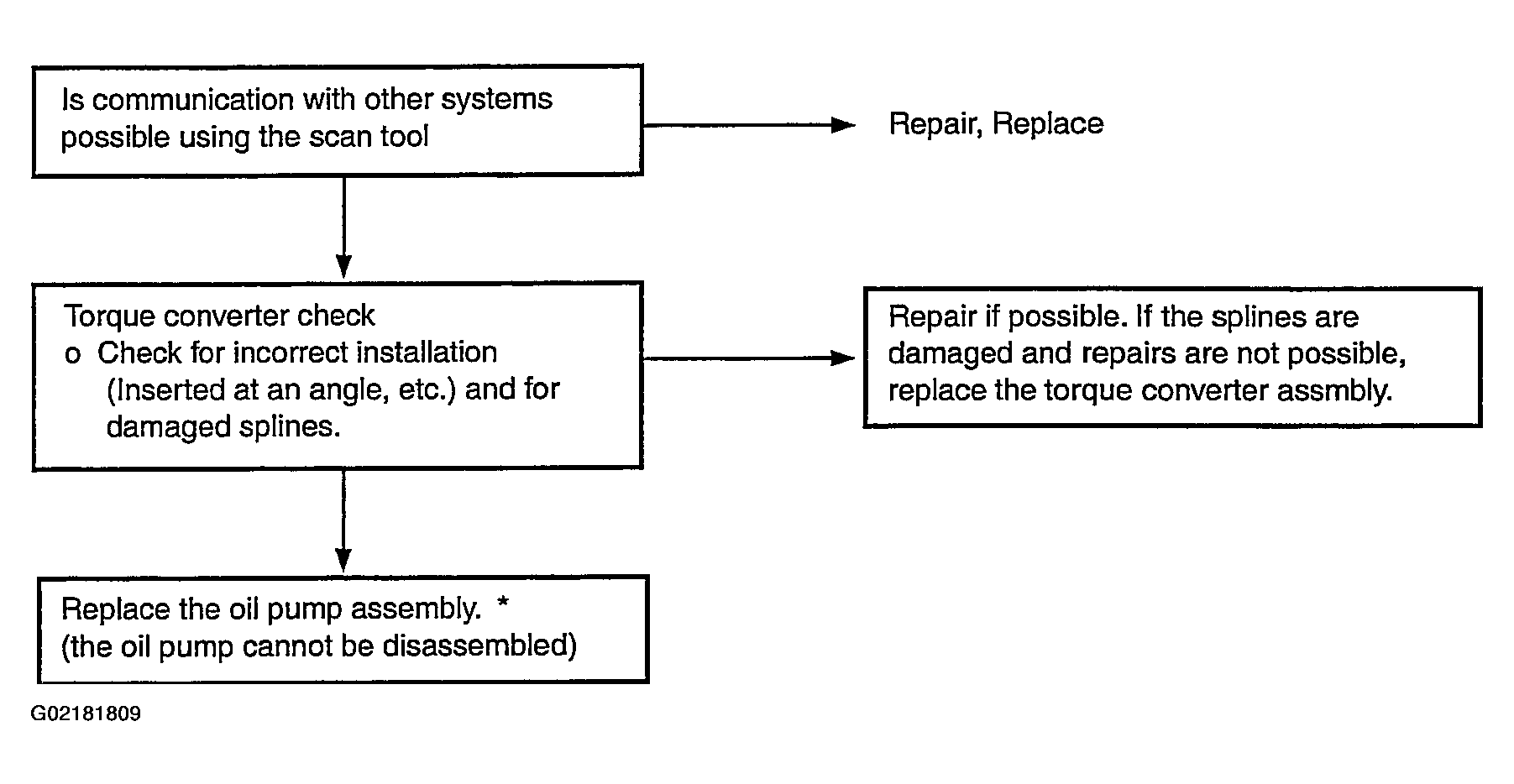

Fig 2: Vehicle Will Not Reverse Diagnostic Flow Chart
G02181809
