Vehicle Speed Sensor: Locations

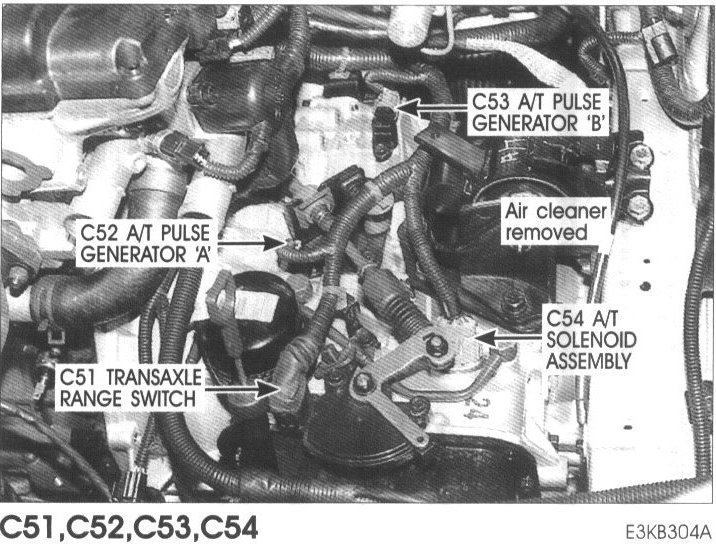

C51 Transaxle Range Switch, C52 A/T Pulse Generator 'A', C53 A/T Pulse Generator 'B', C54 A/T Solenoid Assembly:

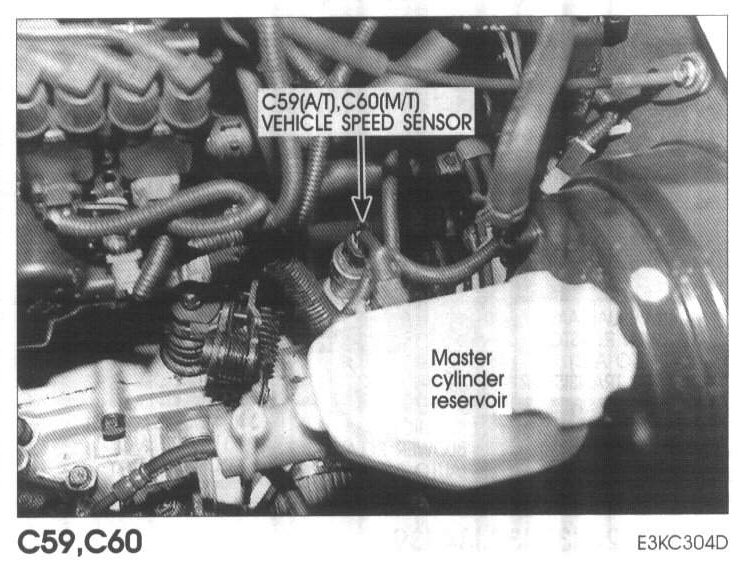

C59(A/T), C60(M/T) Vehicle Speed Sensor:
