Electronic Time & Alarm Control Module (ETACM)

To identify ETACM pin connector pins, see Fig 1 .

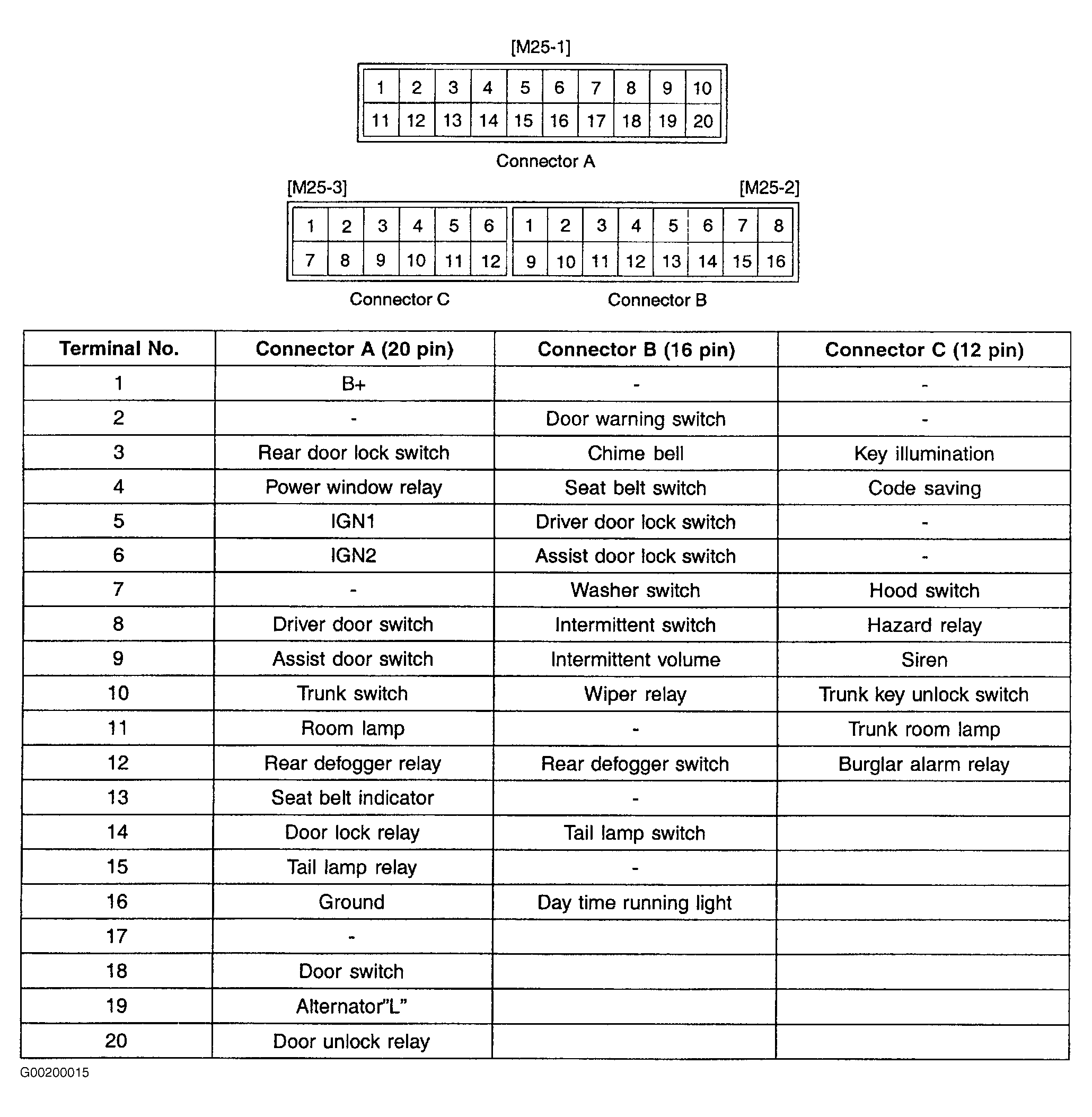

Fig 1: Identifying ETACM Connector Pins
G00200015Courtesy of HYUNDAI MOTOR CO.
