Powertrain Control Module & Engine Control Module, Location & Connector Identification

NOTE: Engine Control Module (ECM), can also be referred to as Powertrain Control Module (PCM).

Powertrain Control Module (PCM) and Engine Control Module (ECM) are located below center of instrument panel, near floor. To identifying component connectors terminals. See Fig 1 and Fig 2 .

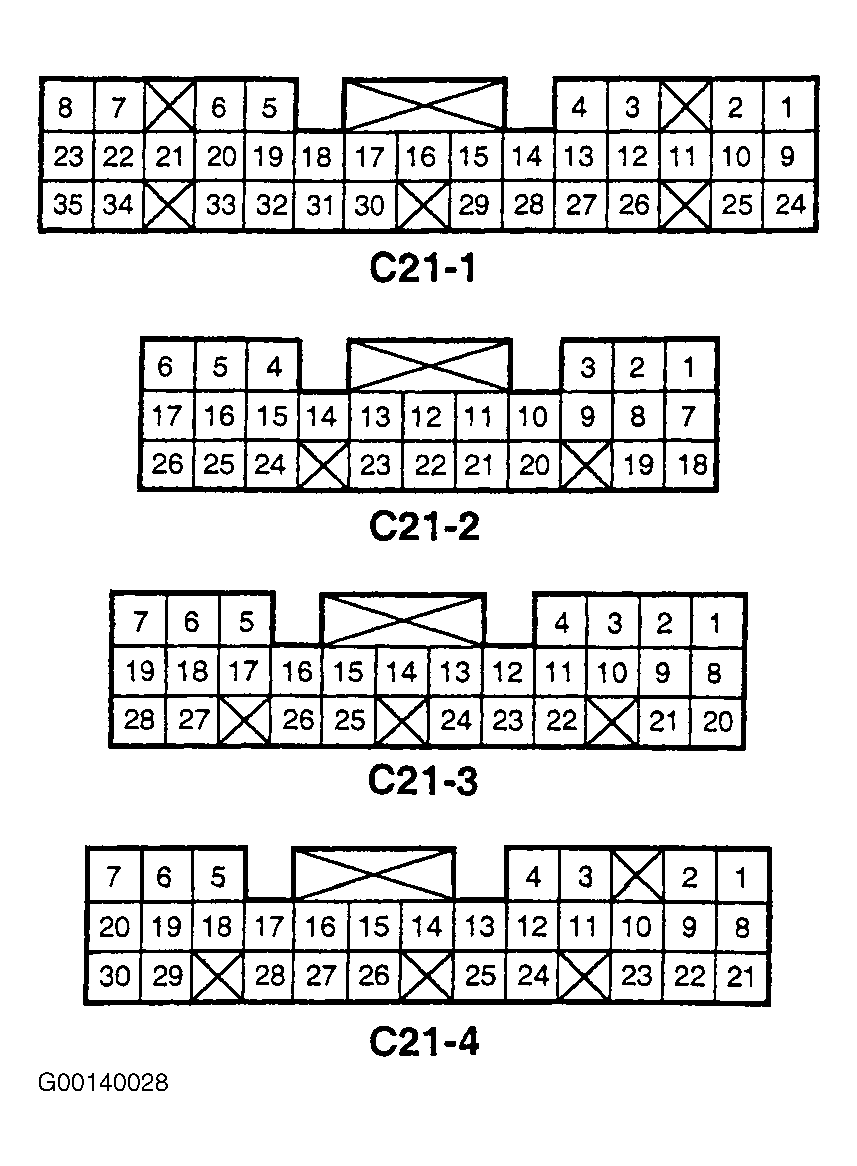

Fig 1: Identifying Powertrain Control Module Connectors Terminals (2.4L - A/T)

Courtesy of HYUNDAI MOTOR CO.

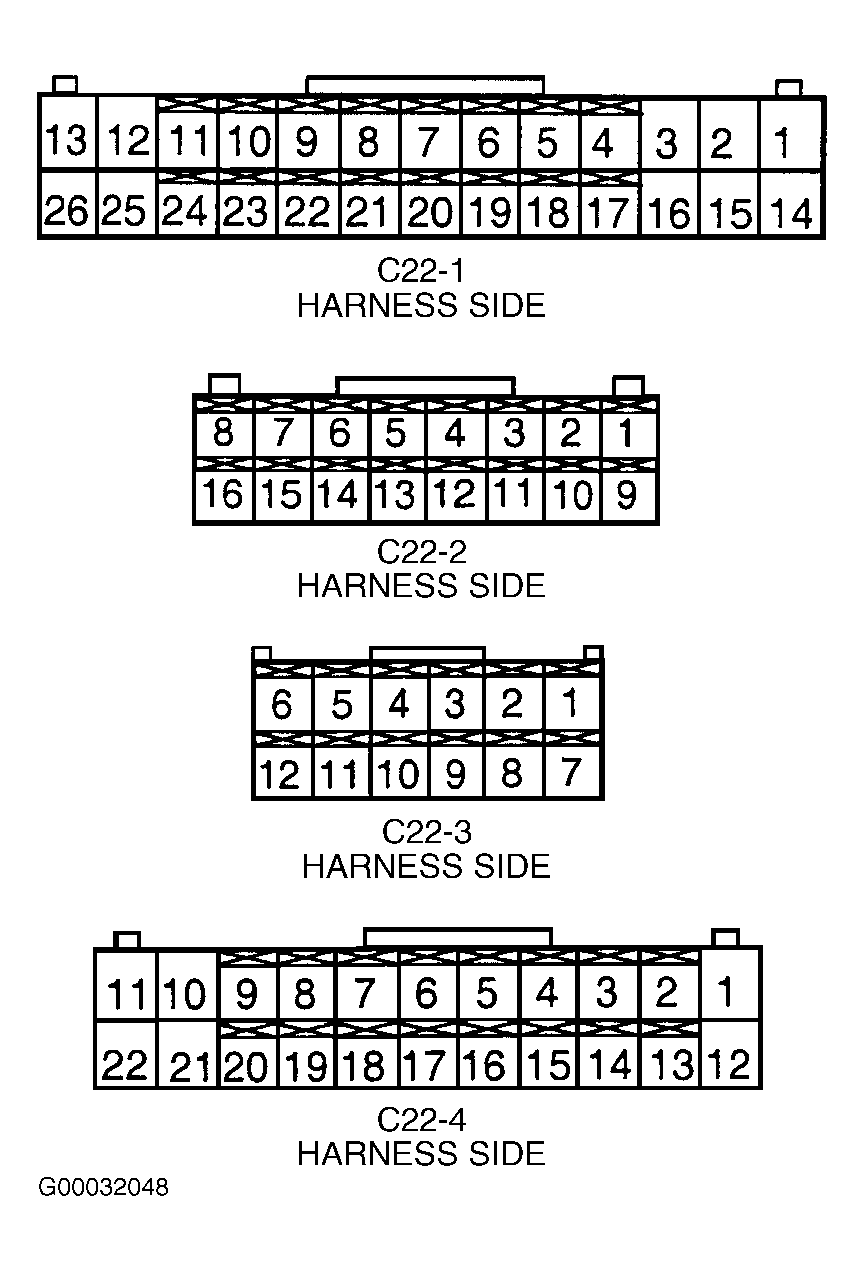

Fig 2: Identifying Engine Control Module Connectors Terminals (2.4L - M/T)

Courtesy of HYUNDAI MOTOR CO.
