DTC P0725: Crankshaft Position Sensor System

WARNING: This page is about a different variant/trim than selected.

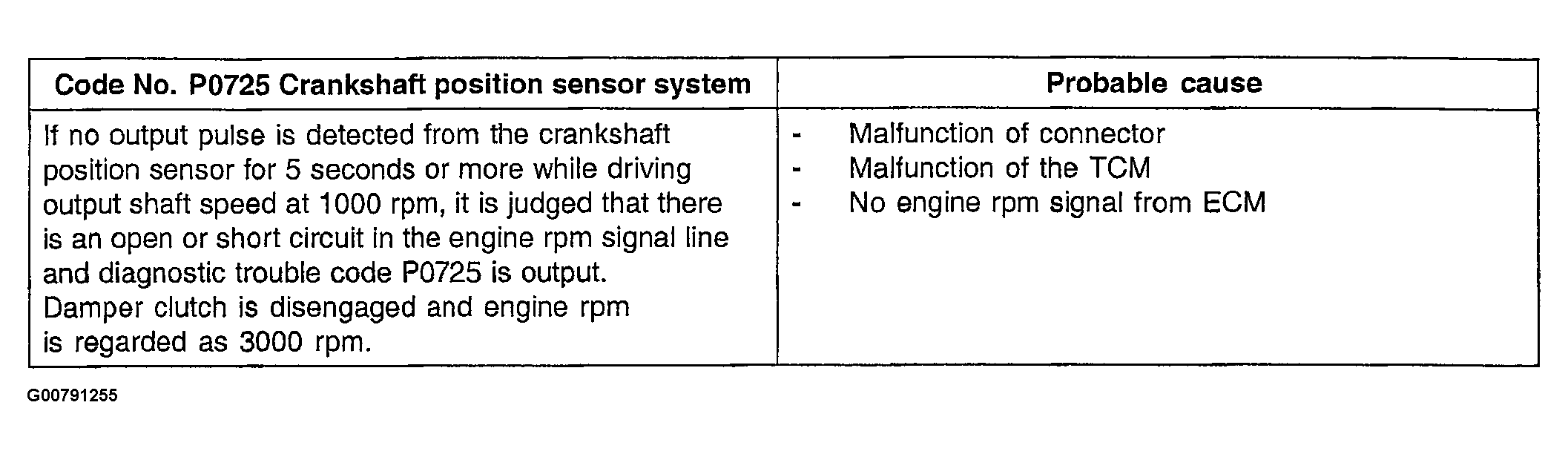

Fig 1: DTC P0725: Crankshaft Position Sensor System Definitions & Probable Causes
G00791255Courtesy of HYUNDAI MOTOR CO.

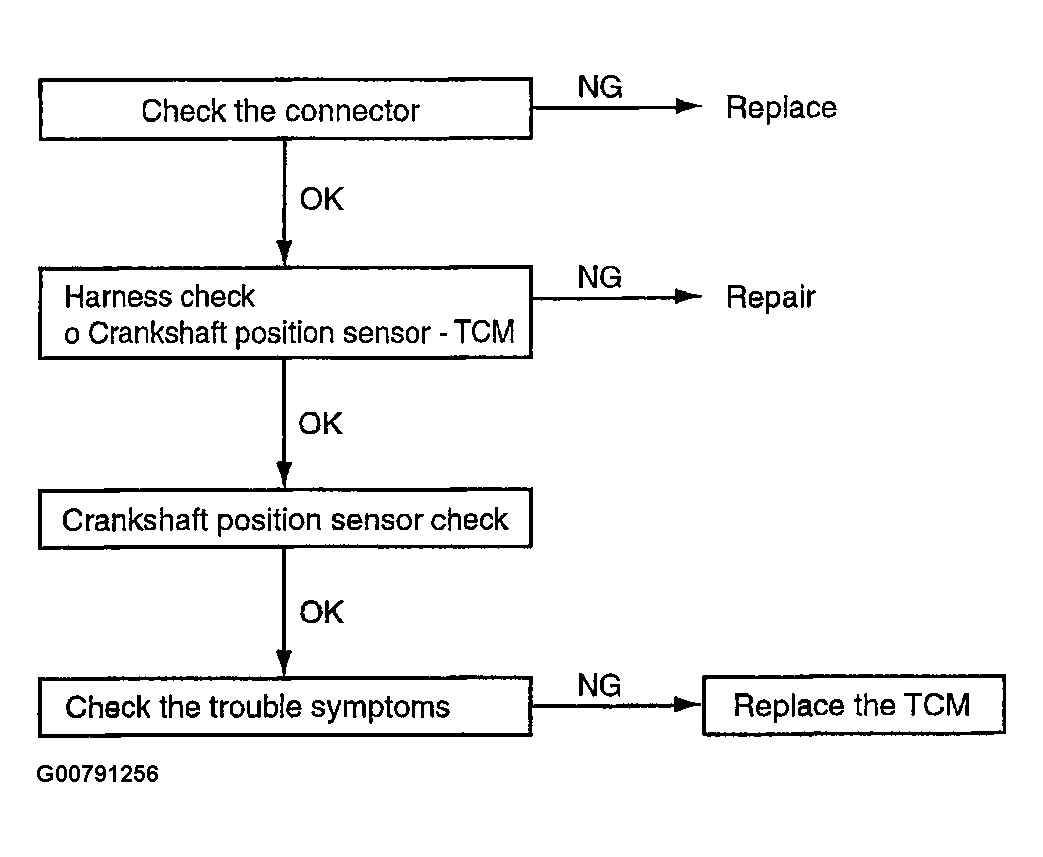

Fig 2: DTC P0725: Crankshaft Position Sensor System Diagnostic Flow Chart
G00791256Courtesy of HYUNDAI MOTOR CO.
