Body Control Module

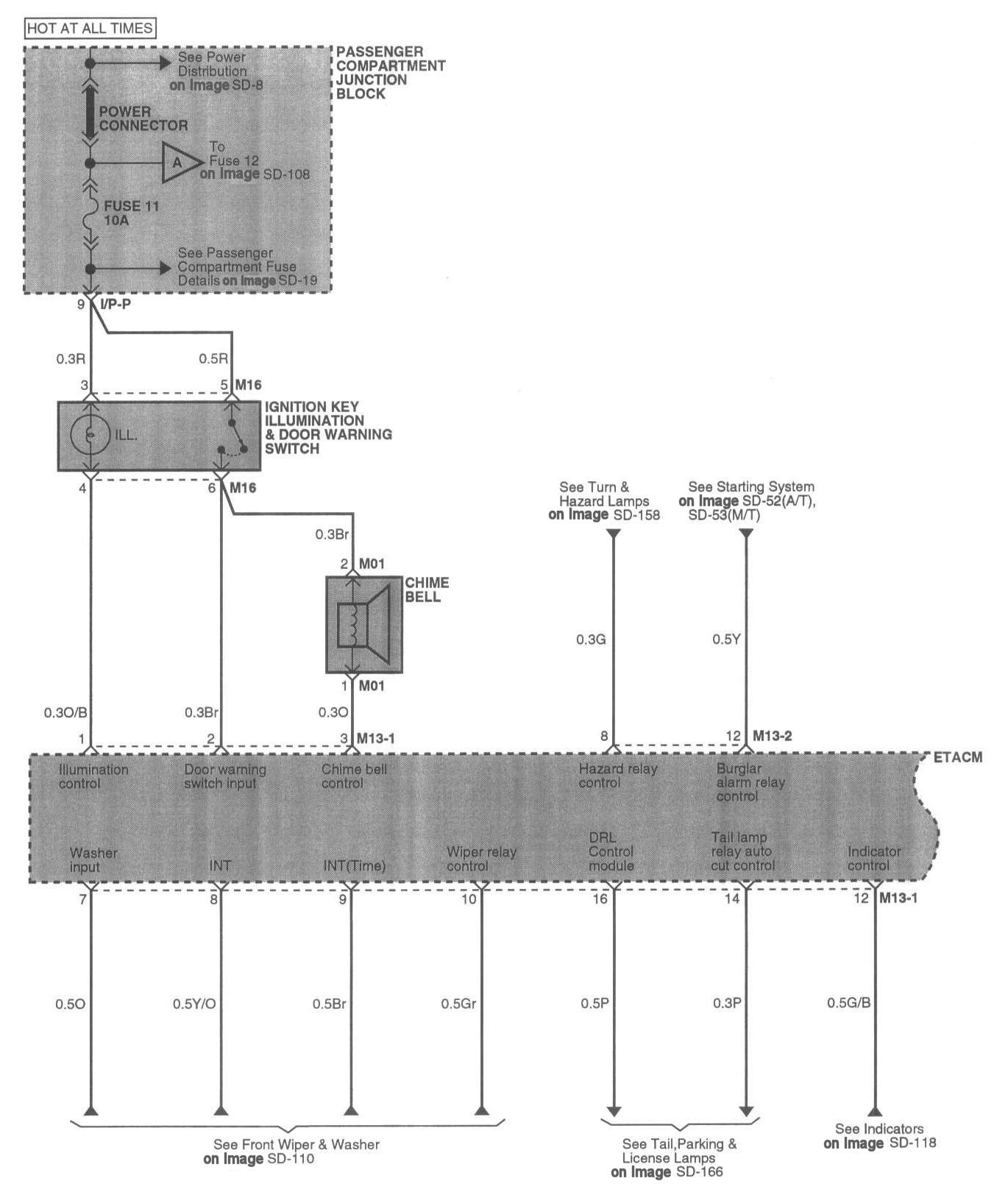

Image SD-106 ETACS (Electronic Time & Alarm Control System) (1):

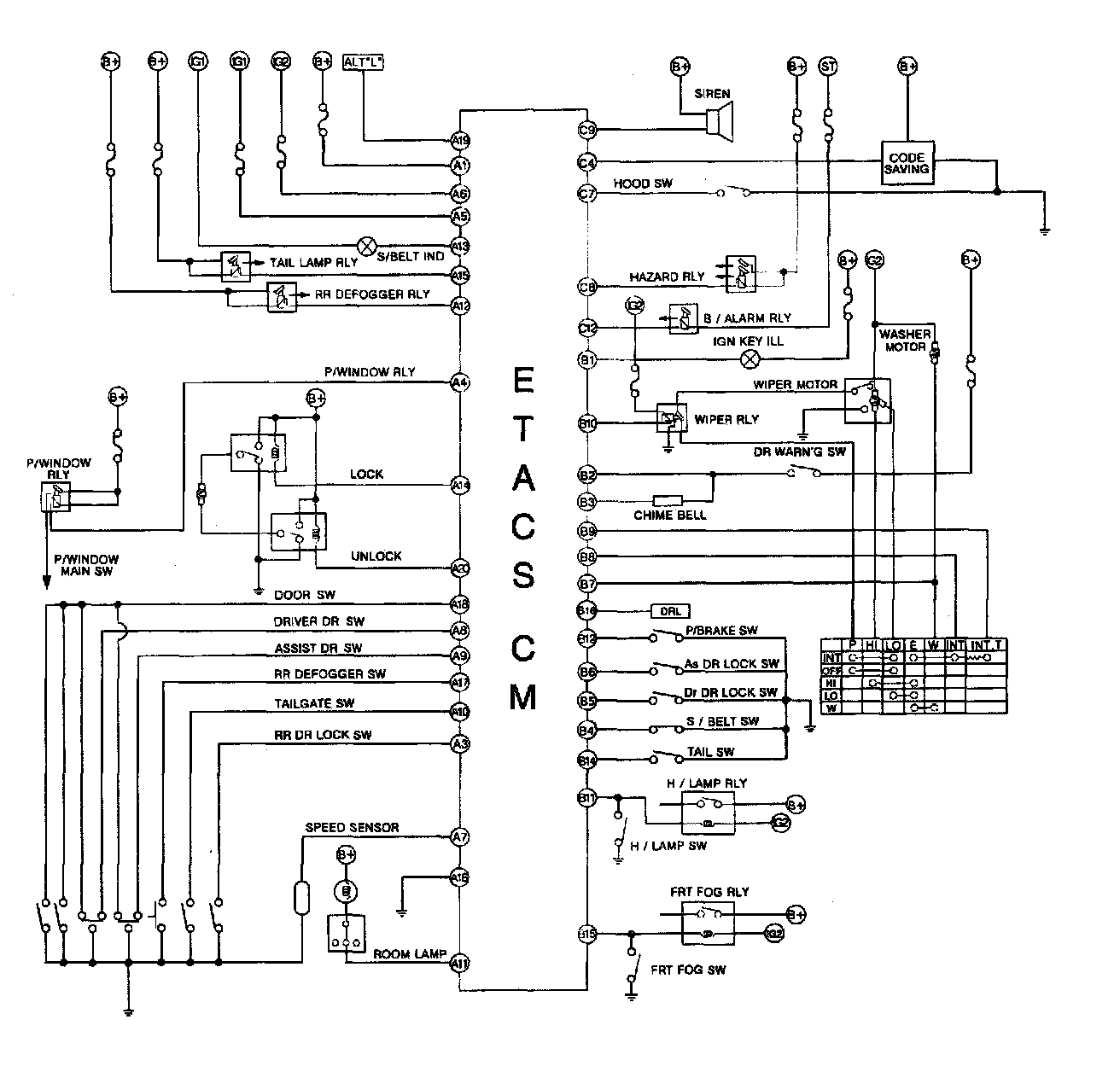

Image SD-107 ETACS (Electronic Time & Alarm Control System) (2):

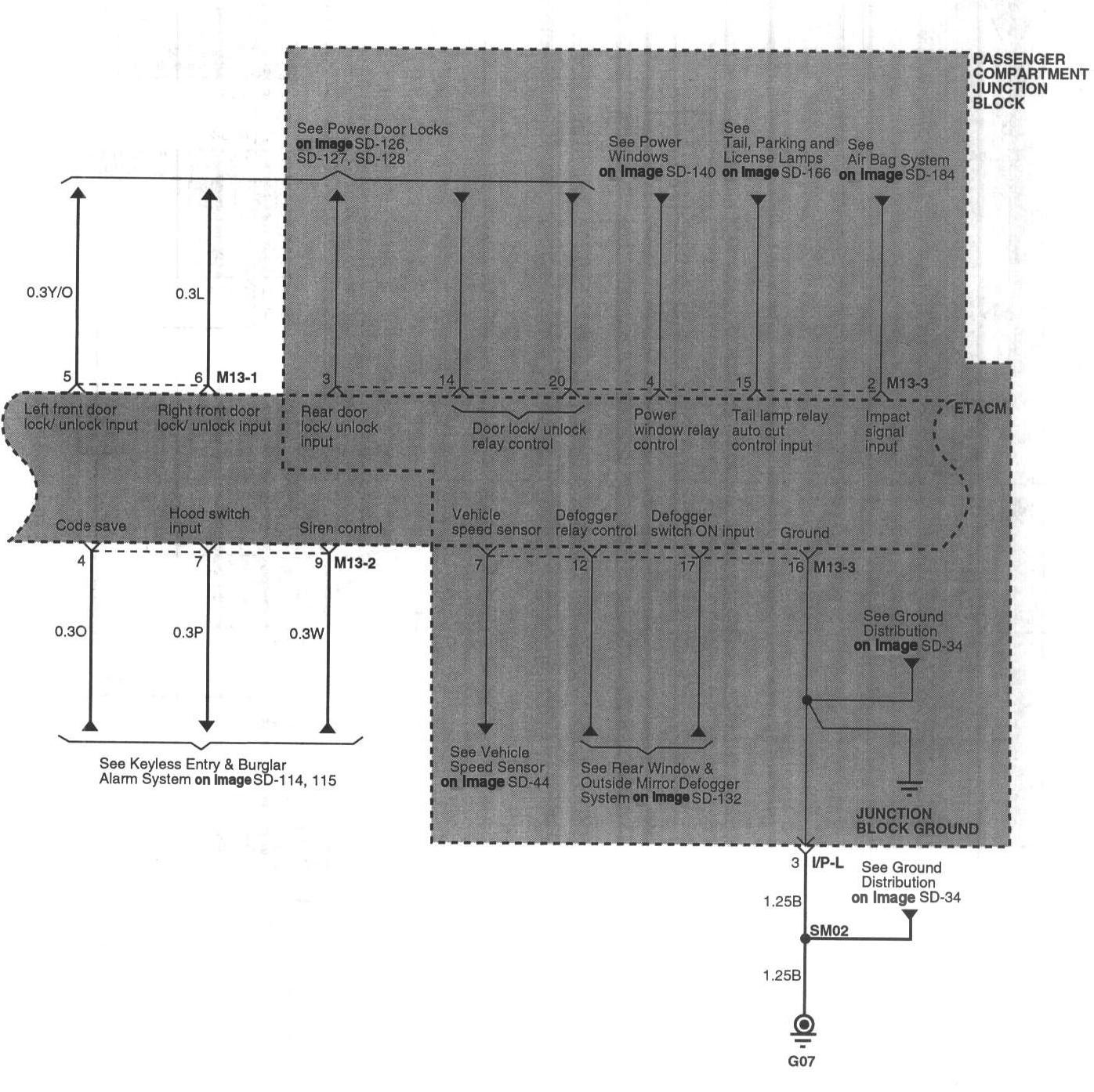

Image SD-108 ETACS (Electronic Time & Alarm Control System) (3):



Circuit Diagram:
