Control Module HVAC: Locations

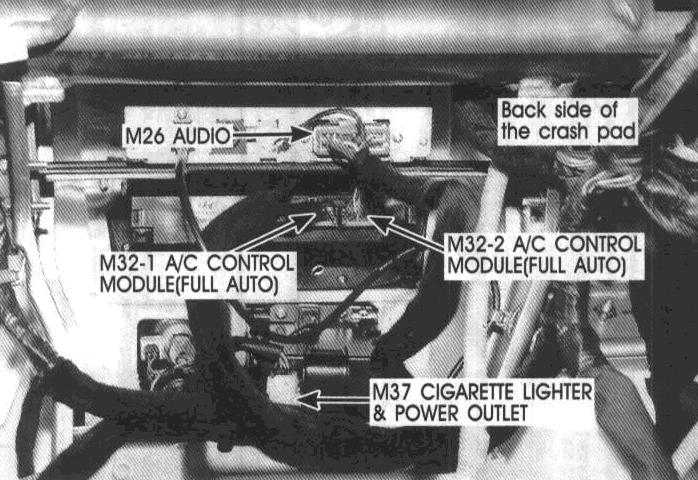

M26 Audio, M32-1 A/C Control Module, M32-2 A/C Control Module, M37 Cigarette Lighter:

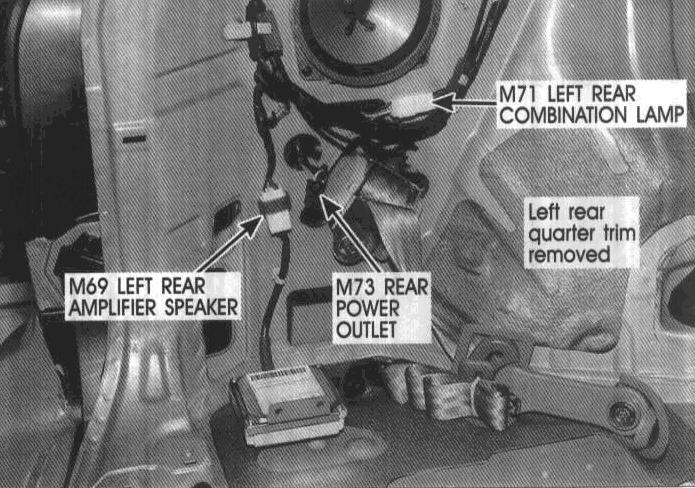

M69 Left Rear Amplifier Speaker, M71 Left Rear Combination Lamp, M73 Rear Power Outlet:
