Connector Locations

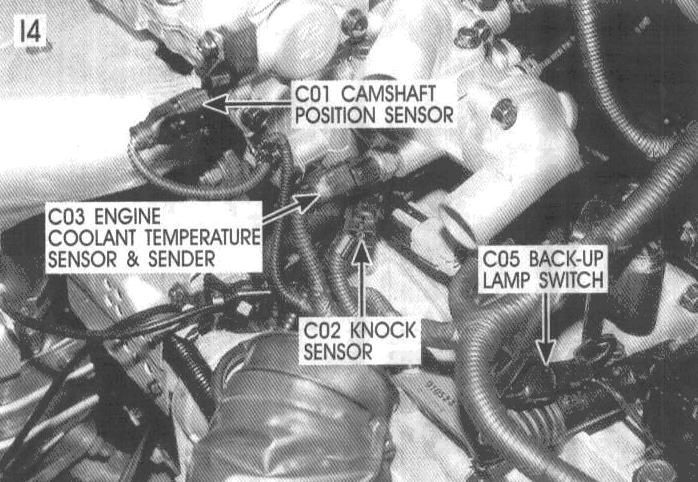

C01 Camshaft Position, C02 Knock Sensor, C03 Engine Coolant Temperature Sensor & Sender, C05 Back-up Lamp Switch:

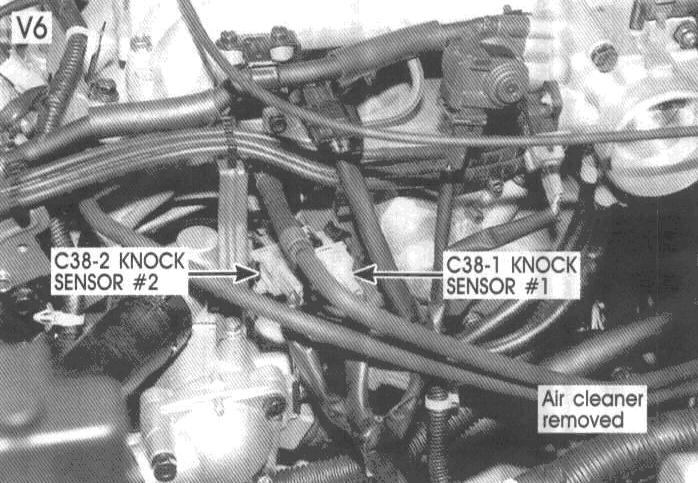

C38-1 Knock Sensor #1, C38-2 Knock Sensor #2:
