Engine Control Module, Location & Connector Identification

NOTE: Engine Control Module (ECM), can also be referred to as Powertrain Control Module (PCM).

Engine Control Module (ECM) are located below center of instrument panel, near floor. To identifying component connectors terminals. See Fig 1 .

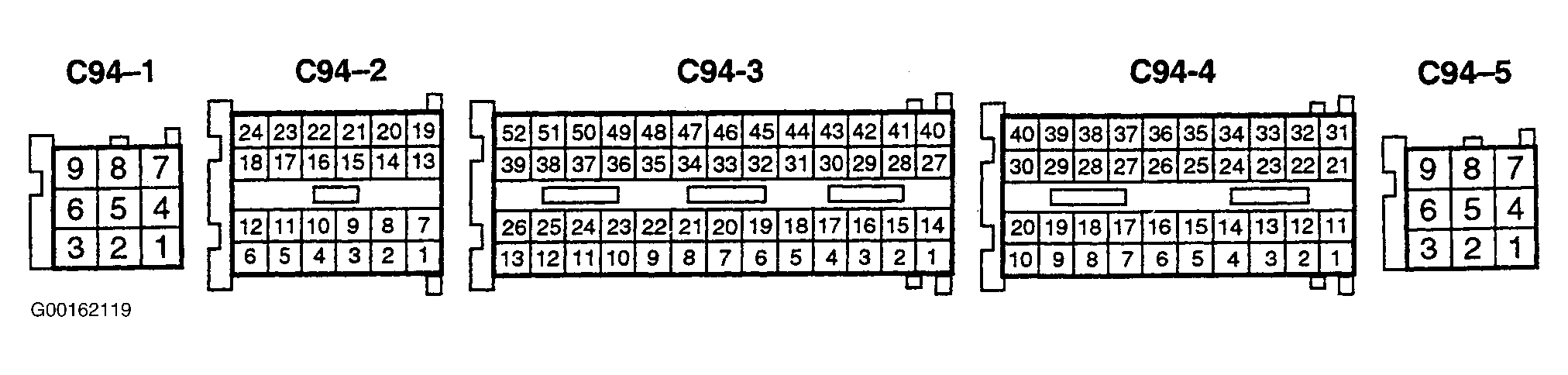

Fig 1: Identifying Engine Control Module Connector Terminals (2.7L)

Courtesy of HYUNDAI MOTOR CO.
