Automatic Transaxle Shift Control: Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Apply a coating of the specified grease to the interior of the bushing.
Specified grease: Chassis grease SAE J310, NLGI No.0

Fig 1: Applying Coating Of Grease To Interior Of Bushing
Courtesy of HYUNDAI MOTOR CO.
Move the shift lever and the transaxle range switch to the N position, and install the control cable.
When connecting the control cable to the transaxle mounting bracket, install the clip until it contacts the control cable.

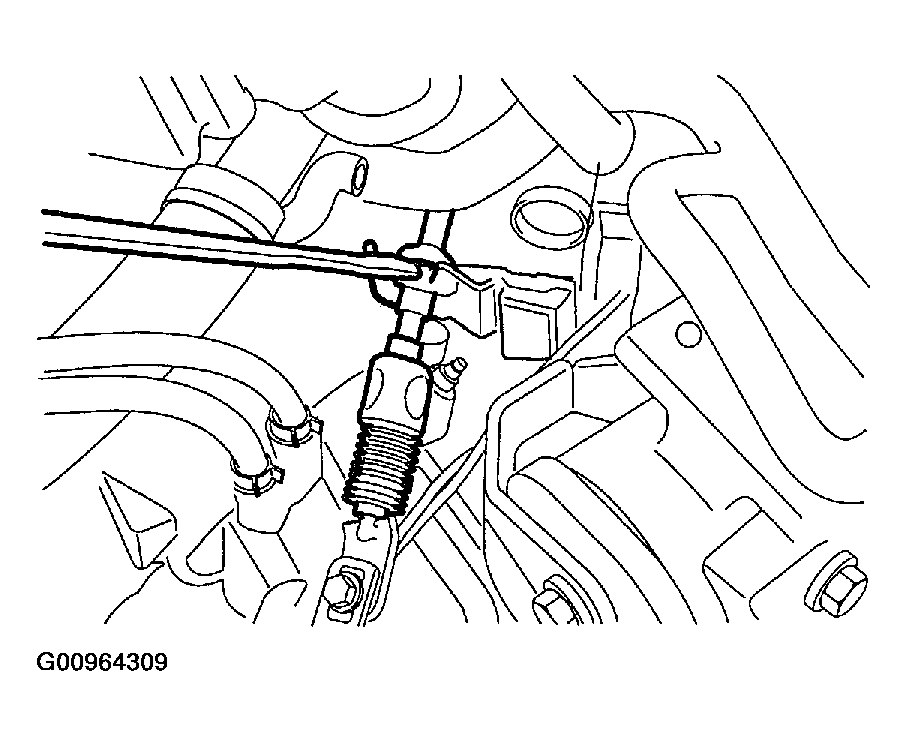

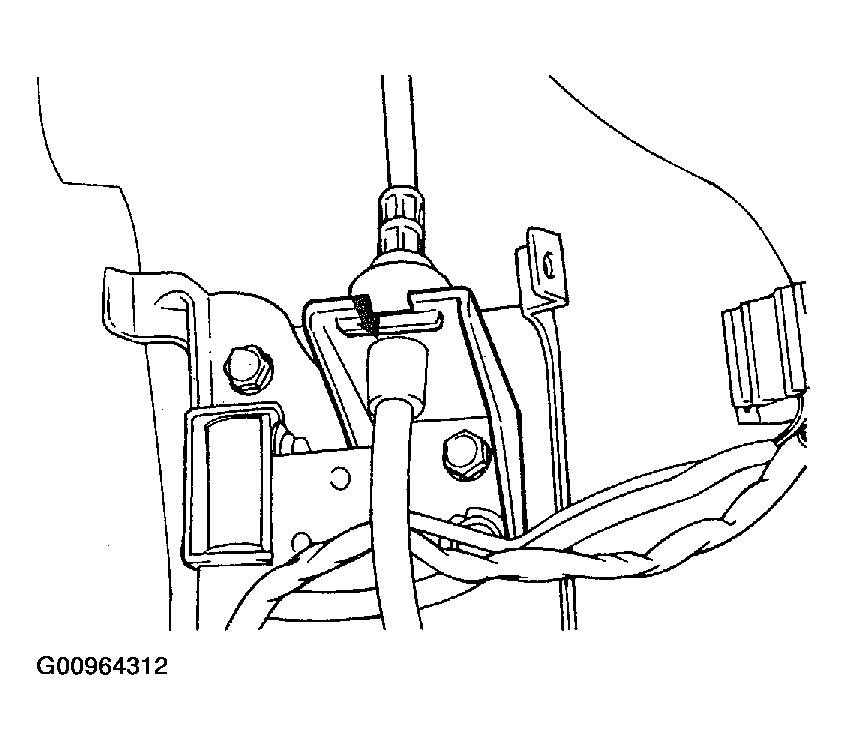

Fig 2: Connecting Control Cable To Transaxle Mounting Bracket (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

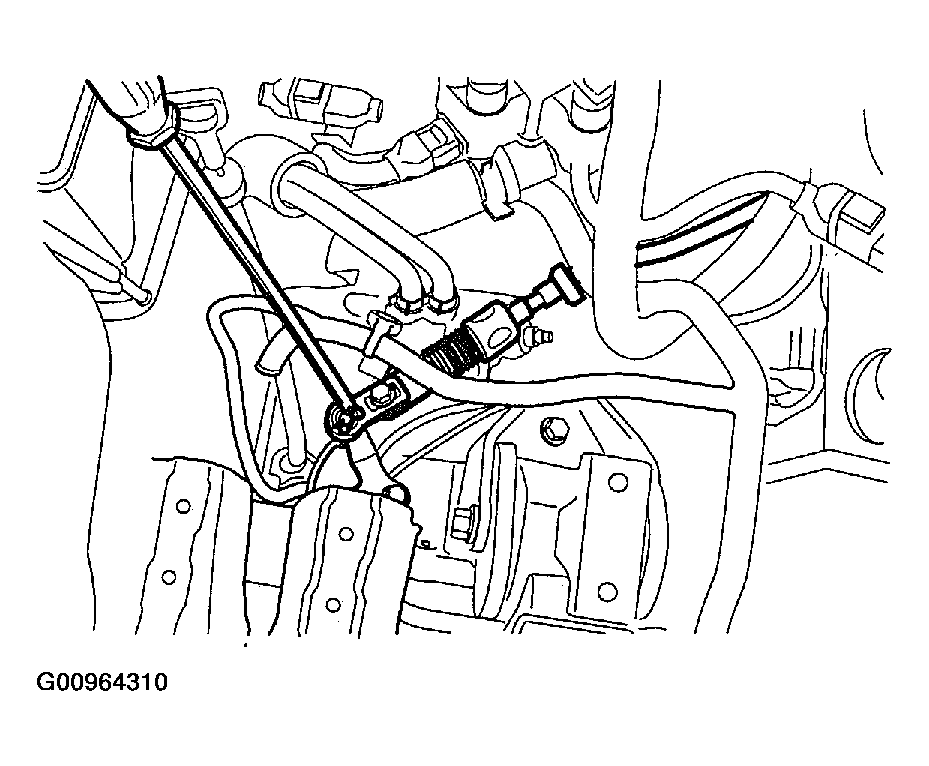

Fig 3: Connecting Control Cable To Transaxle Mounting Bracket (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.

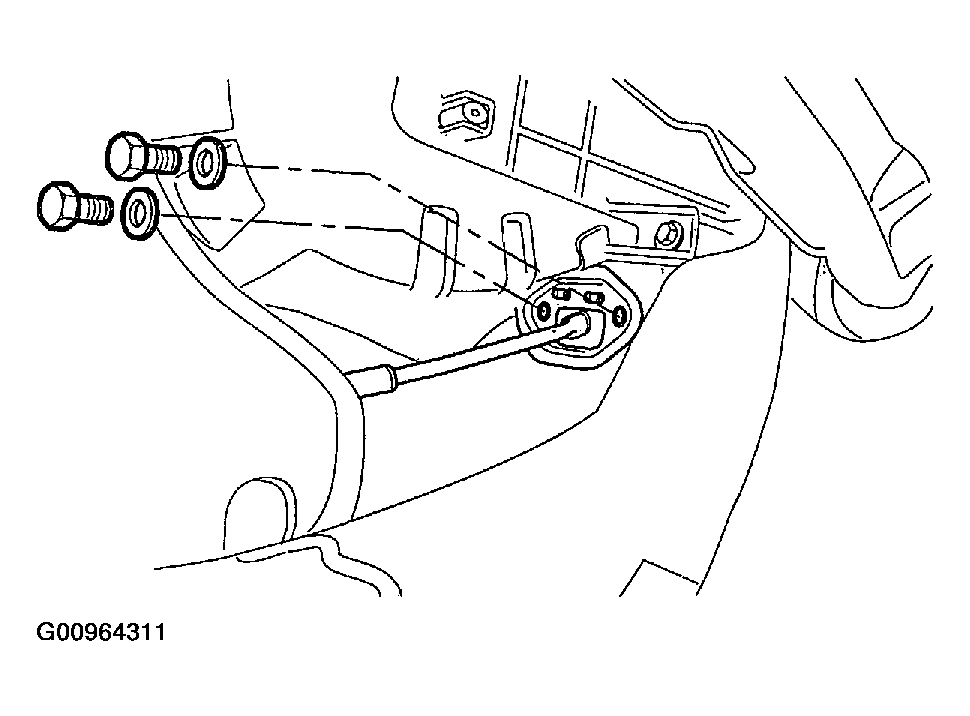

Install the bolt-washer assembly and nut.

Fig 4: Installing Bolt-Washer Assembly & Nut
Courtesy of HYUNDAI MOTOR CO.
Install the clip pin and self lock pin.

Fig 5: Installing Clip Pin & Self Lock Pin
Courtesy of HYUNDAI MOTOR CO.

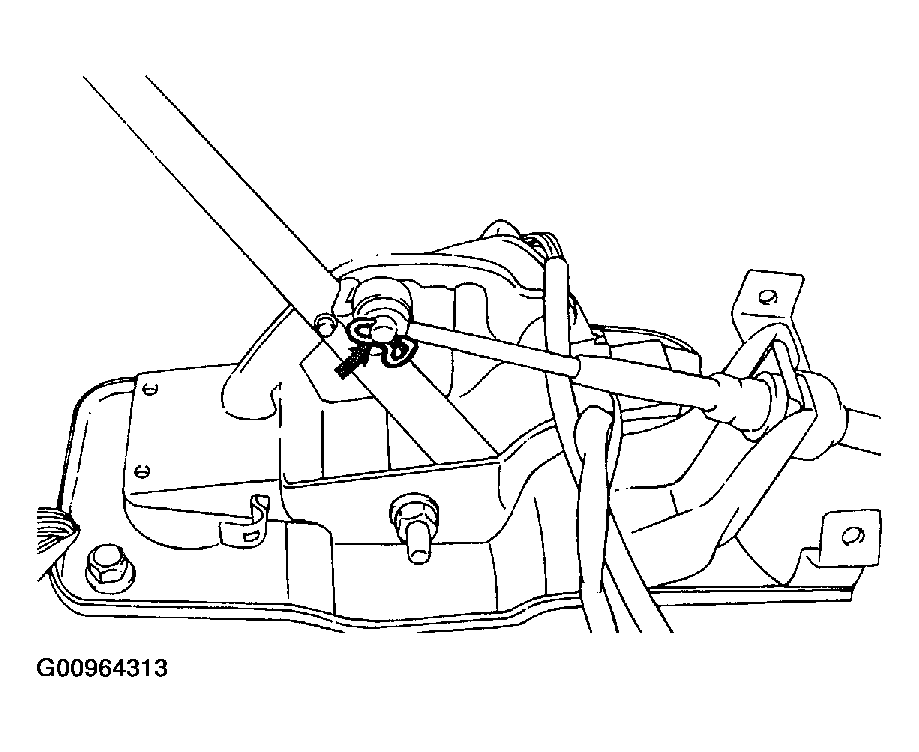

Install the cotter pin.

Fig 6: Installing Cotter Pin
Courtesy of HYUNDAI MOTOR CO.

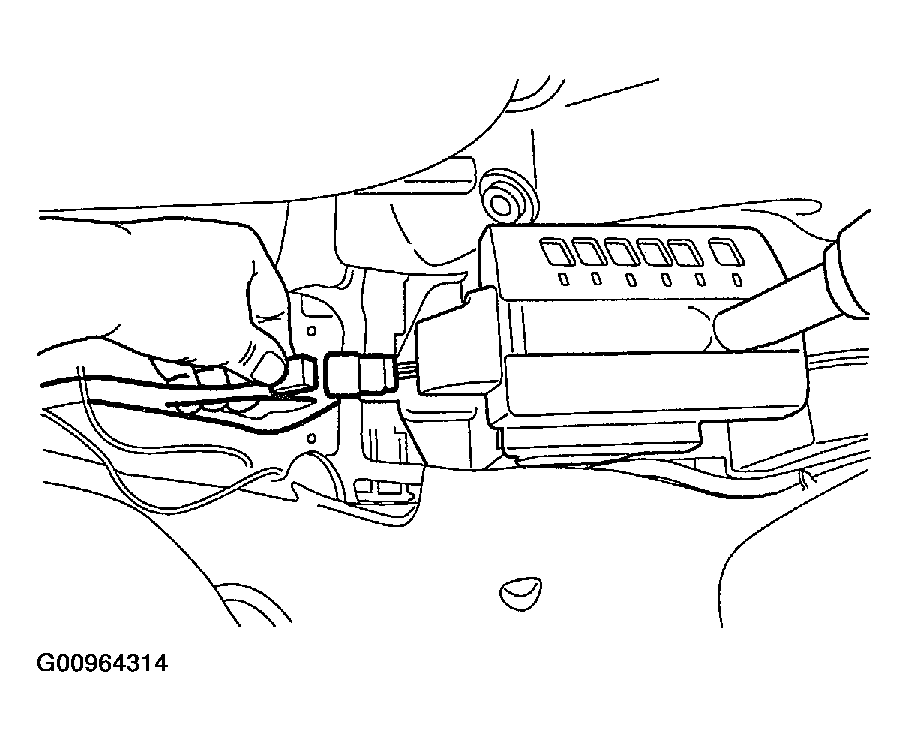

Connect the position indicator light connector, the O/D switch connector, the parking position switch connector, normal/economy select switch connector and the shift lock solenoid connector.

Fig 7: Connecting Position Indicator Light Connector, O/D Switch Connector, Parking Position Switch Connector, Normal/Economy Select Switch Connector & Shift Lock Solenoid Connector
Courtesy of HYUNDAI MOTOR CO.

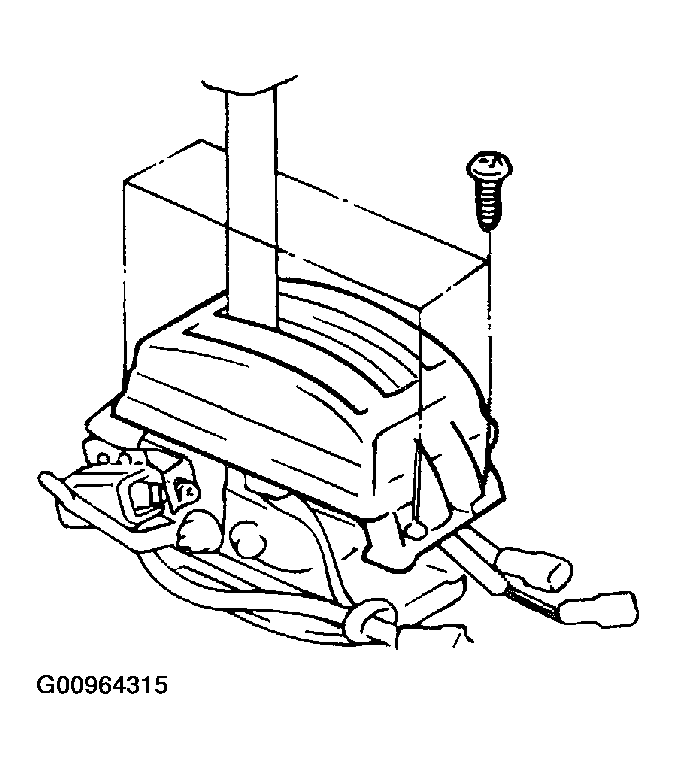

Install the shift lever indicator assembly.

Fig 8: Installing Shift Lever Indicator Assembly
Courtesy of HYUNDAI MOTOR CO.
Apply the specified grease at the place shown in the figure.
Specified grease: Multipurpose grease SAE J310, NLGI No.2

Fig 9: Applying Specified Grease
Courtesy of HYUNDAI MOTOR CO.
Install the shift lever assembly.

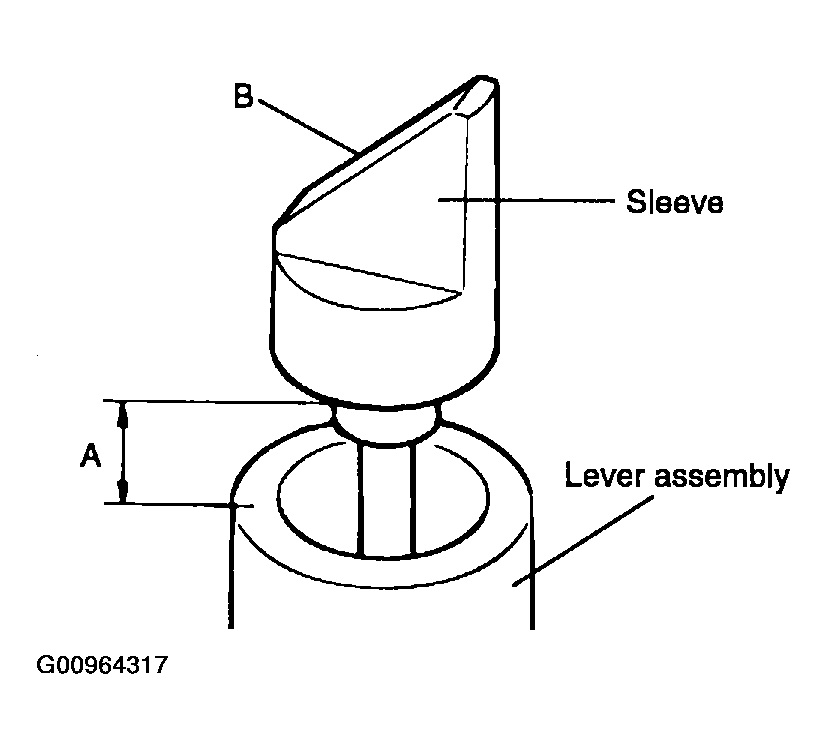

Place the shift lever in the N position, and then turn the cam adjusting so that the clearance between the cam adjusting and the lever assembly end in within the standard value.
1. Standard value (A) 15.2-15.9 mm (0.598-0.625 in.)
NOTE: Be sure to face B of the adjusting cam to the push button (driver's side).

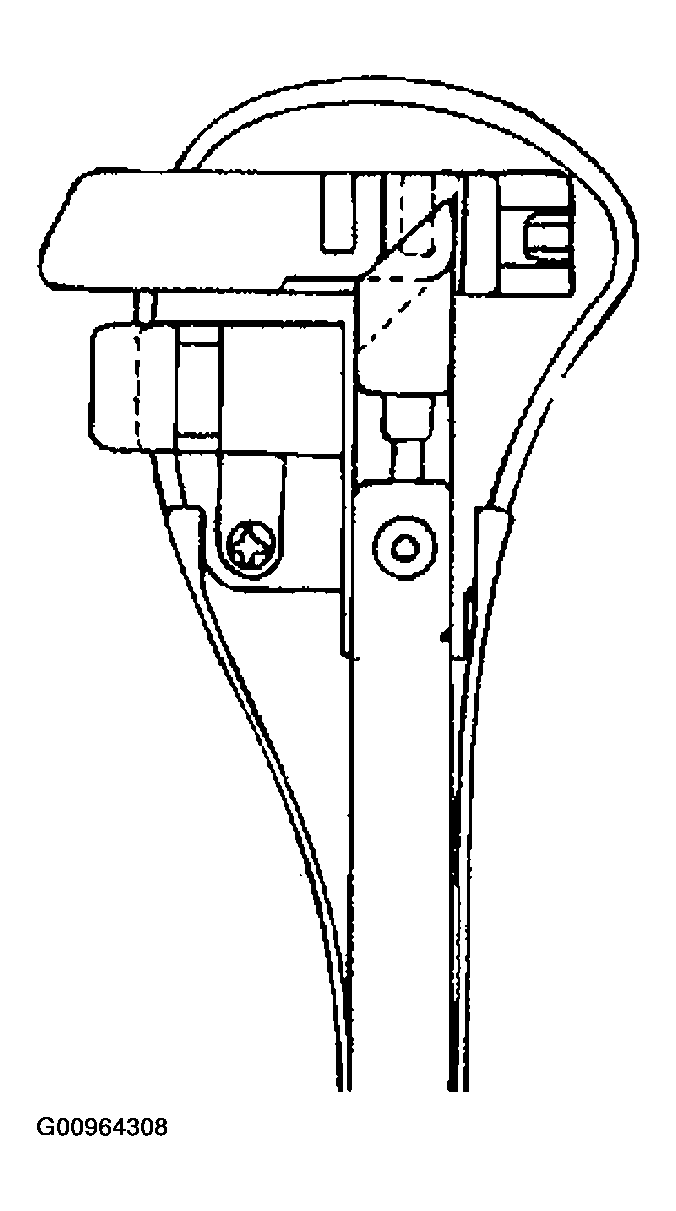

Fig 10: Adjusting Clearance Between Cam Adjusting & Lever Assembly
Courtesy of HYUNDAI MOTOR CO.

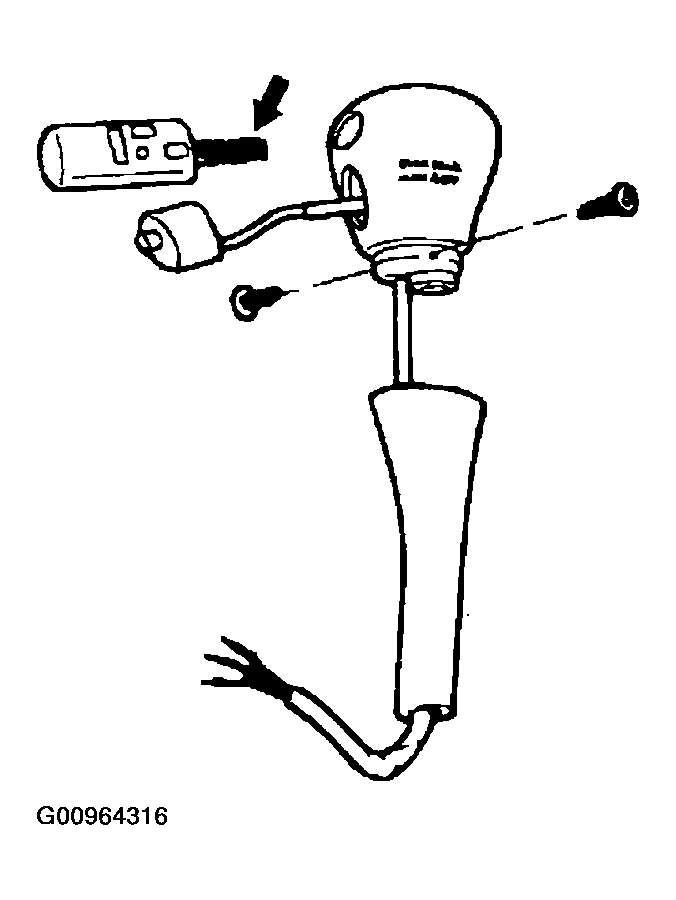

Insert the O/D switch wiring to the shift lever cover, and then assemble the pin into the O/D switch connector.
Install the front console.

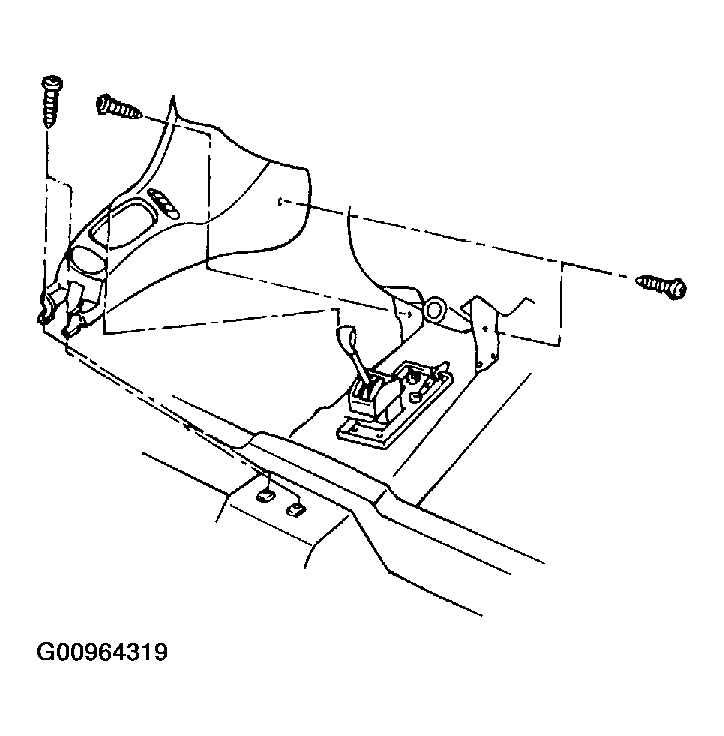

Fig 11: Installing Front Console
Courtesy of HYUNDAI MOTOR CO.
Install the rear console.

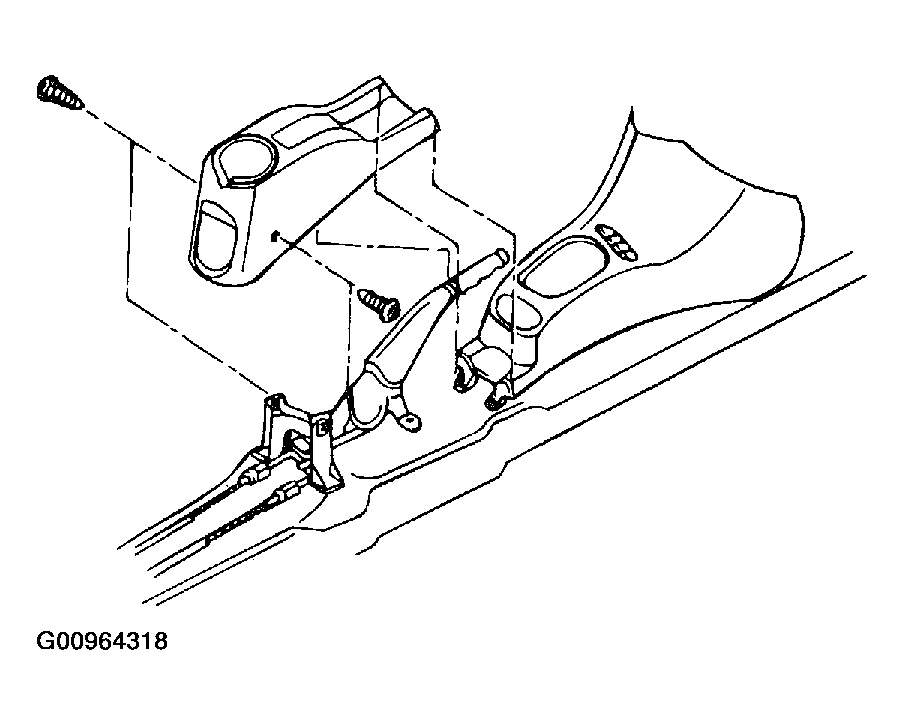

Fig 12: Installing Rear Console
Courtesy of HYUNDAI MOTOR CO.
