Inspection Procedure 10

WARNING: This page is about a different variant/trim than selected.
Fig 1: Shocks & Flare Shifts Probable Cause Table
G00963504Courtesy of HYUNDAI MOTOR CO.

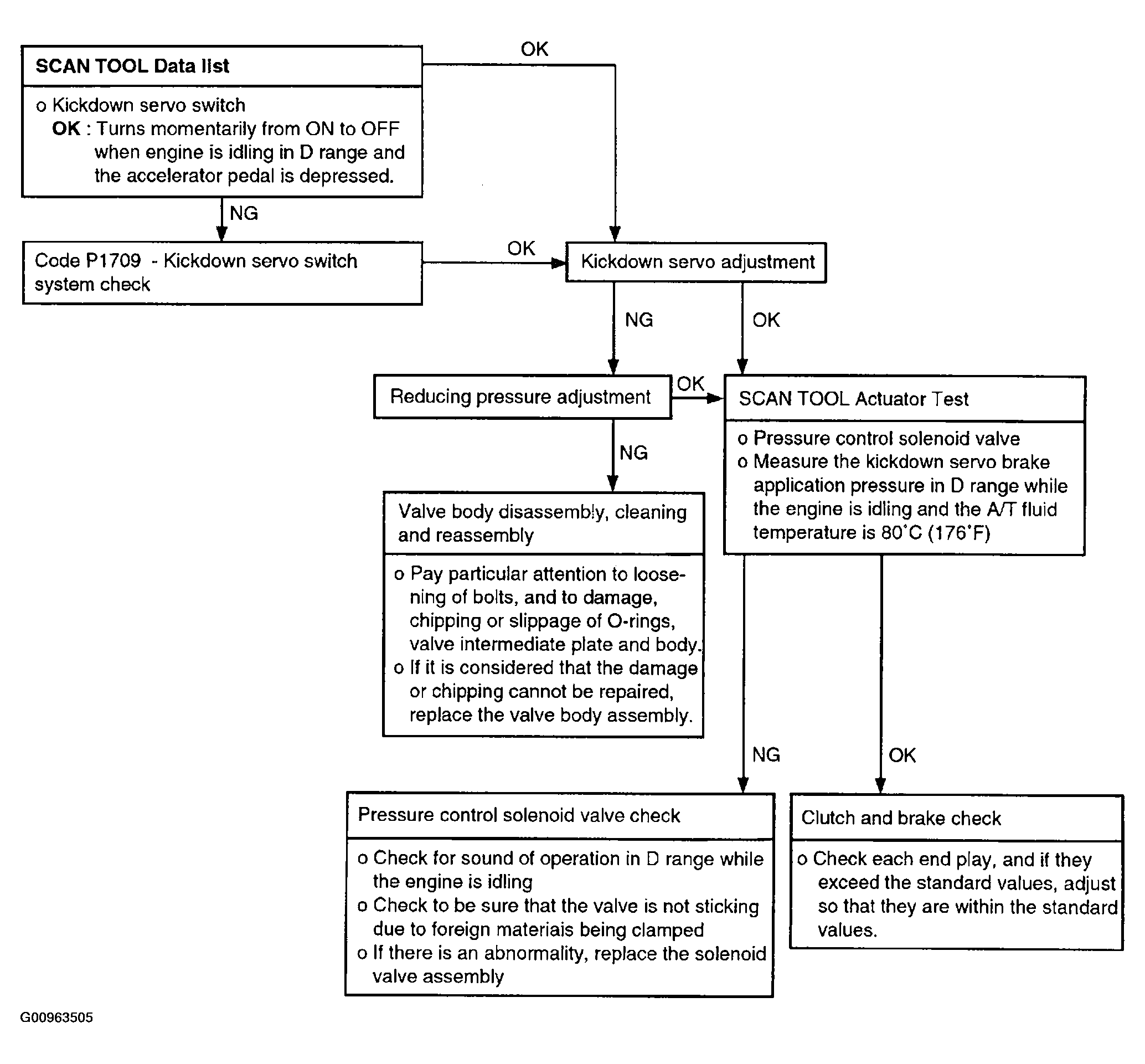

Fig 2: Shocks & Flare Shifts Flow Chart
G00963505Courtesy of HYUNDAI MOTOR CO.
