Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| Dash Fuse Box | Behind left kick panel. |
| Diode (Z01) | In dash fuse box. |
| Diode (Z02) | In dash fuse box. |
| Diode (Z03) | Taped to rear of dash fuse box. |
| Diode (Z04) | In engine compartment relay & fuse box. |
| Diode (Z05) | In engine compartment relay & fuse box. |
| Diode (Z06) | Taped to harness, beside passenger compartment relay box. |
| Diode (Z07) | Taped to harness, behind heater unit. |

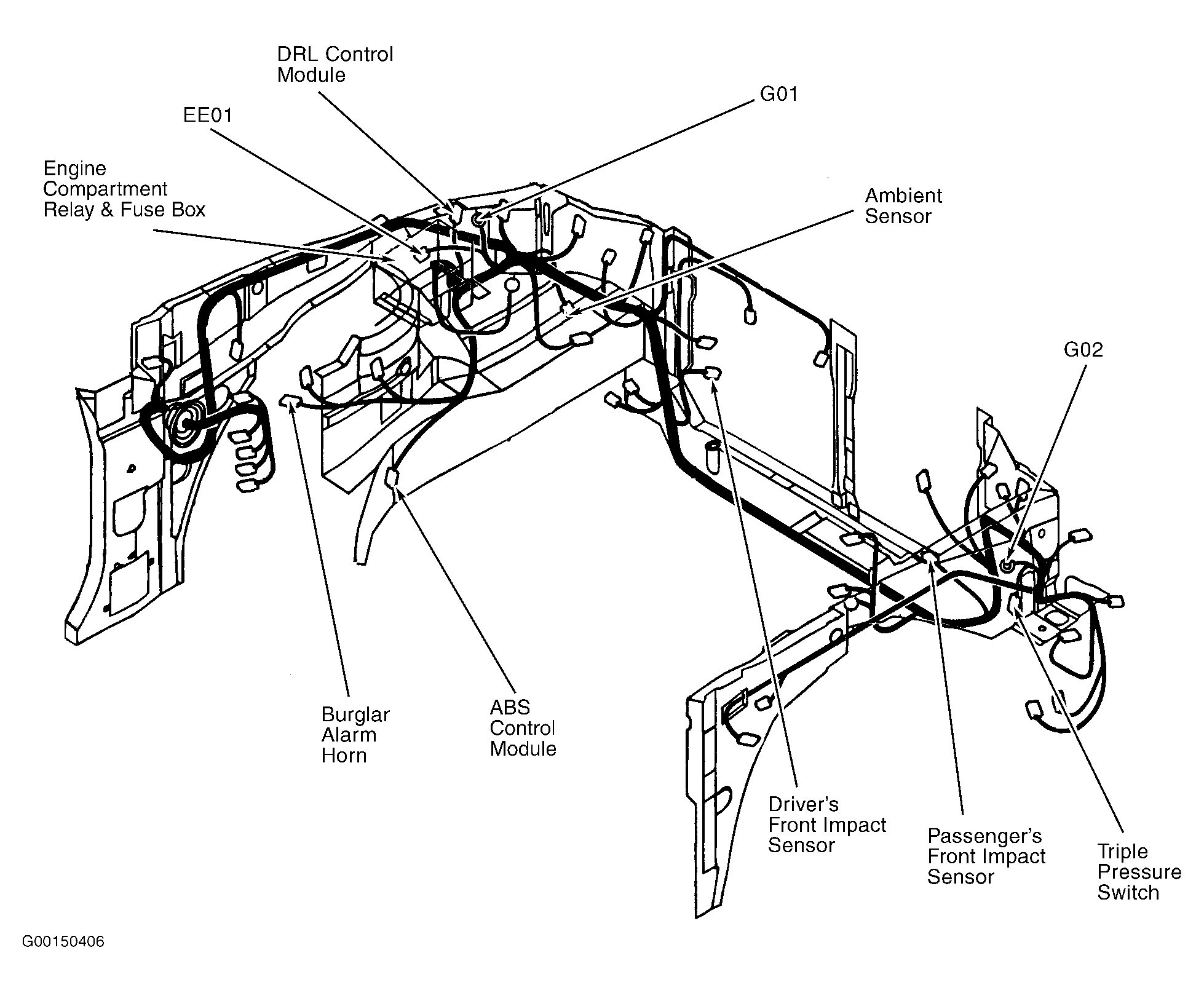

| Engine Compartment Relay & Fuse Box | On left side of engine compartment, in front of strut tower. See Figure. |

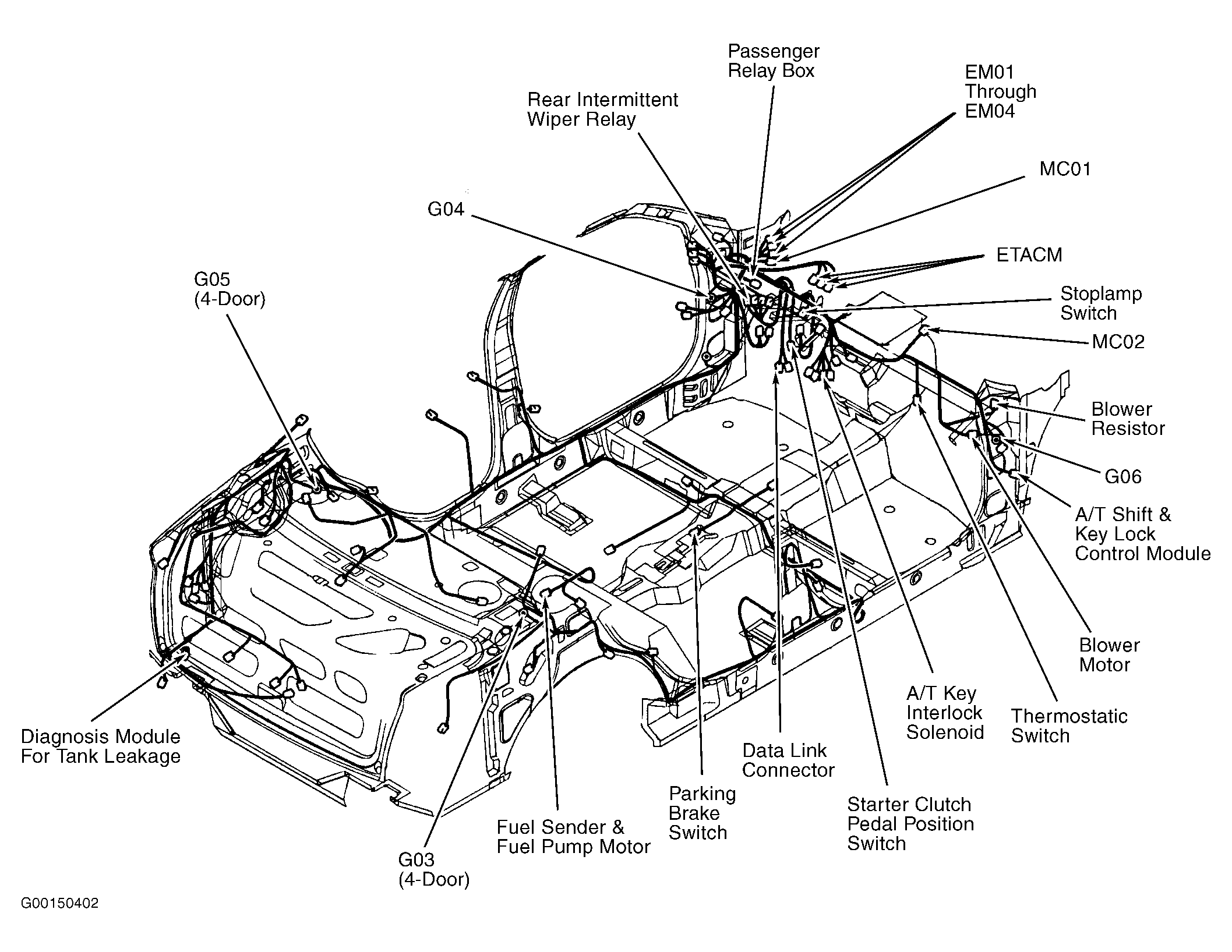

| Passenger Relay Box | Behind left side of dash. See Figure. |
