Strut Assembly: Reassembly

Install the spring lower pad with the protrusions fitted in the holes of the spring lower seat.

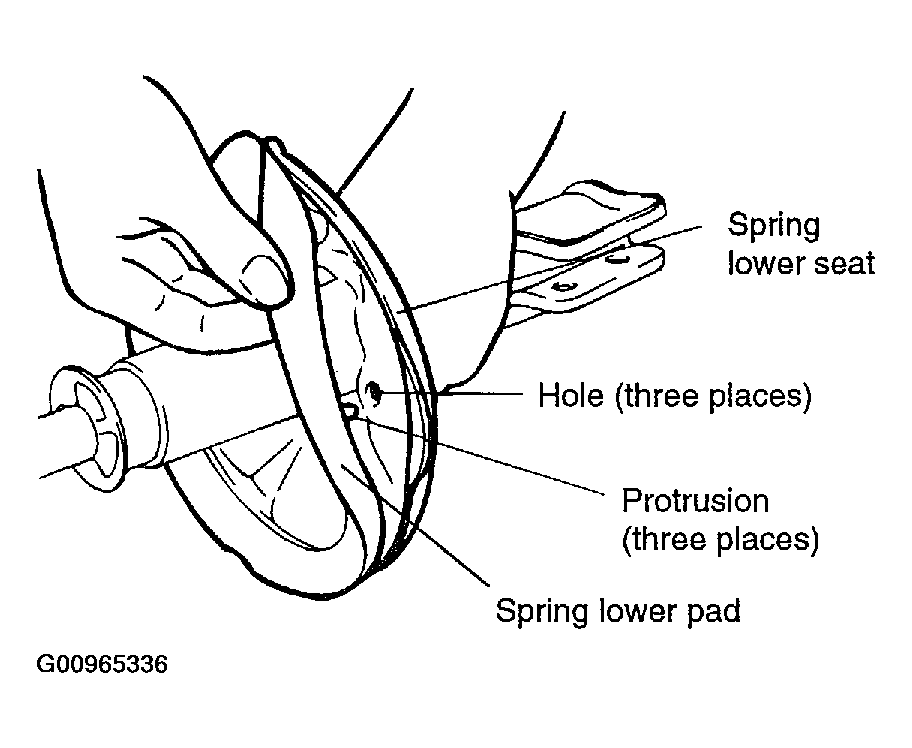

Fig 1: Installing Spring Lower Pad
Courtesy of HYUNDAI MOTOR CO.
Install the strut dust cover on the shock absorber.
Using Special Tool (J38402, A-42), compress the coil spring.
After the spring is fully compressed, install it on the shock absorber.

NOTE: Install the coil spring with the identification color mark facing toward the knuckle.
After fully extending the piston rod, install the spring seat assembly and the strut insulator.
NOTE: Align the D-shaped hole in the spring seat assembly with the indentation on the piston rod.

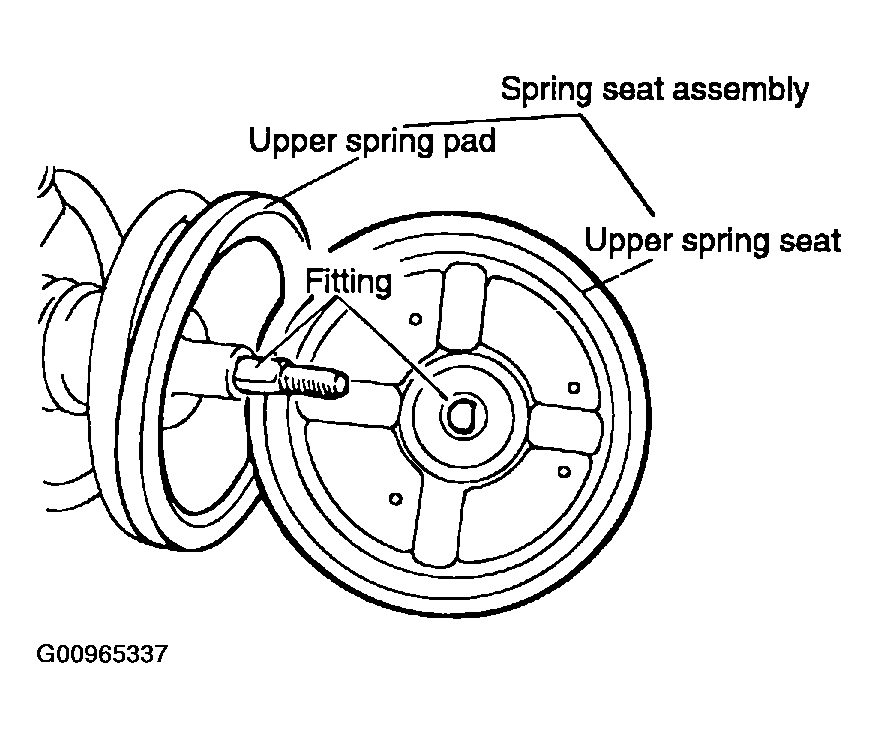

Fig 2: Installing Spring Seat & Strut Insulator
Courtesy of HYUNDAI MOTOR CO.
After having correctly seated the upper and lower ends of the coil spring in the upper and lower spring seat grooves, install the new self-locking nut but do not tighten it.

Fig 3: Identifying Proper Coil Spring Installation
Courtesy of HYUNDAI MOTOR CO.
Remove the Special Tool (J38402, A-42).
Tighten the self-locking nut to the specified torque.
Tightening torque 60-70 N.m (600-700 kg.cm, 43-51 lb.ft)
Pack grease in the strut insulator bearing and install the insulator dust cover.

CAUTION: Make sure that no grease is on the insulator rubber. Refer to LUBRICANTS .
