Ignition Cable: Locations








SPARK PLUG CABLE
Improper arrangement of spark plug cables will induce flash over between the cables, causing misfiring and surging at acceleration in high-speed operations.

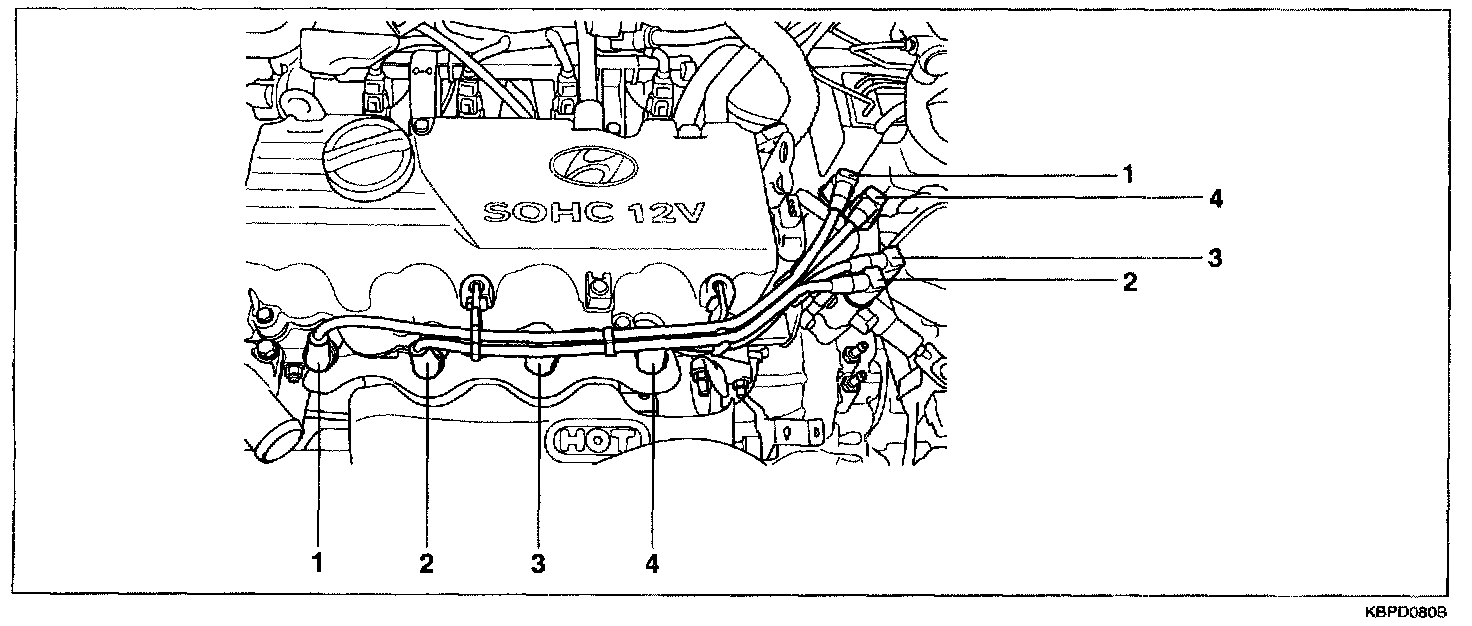

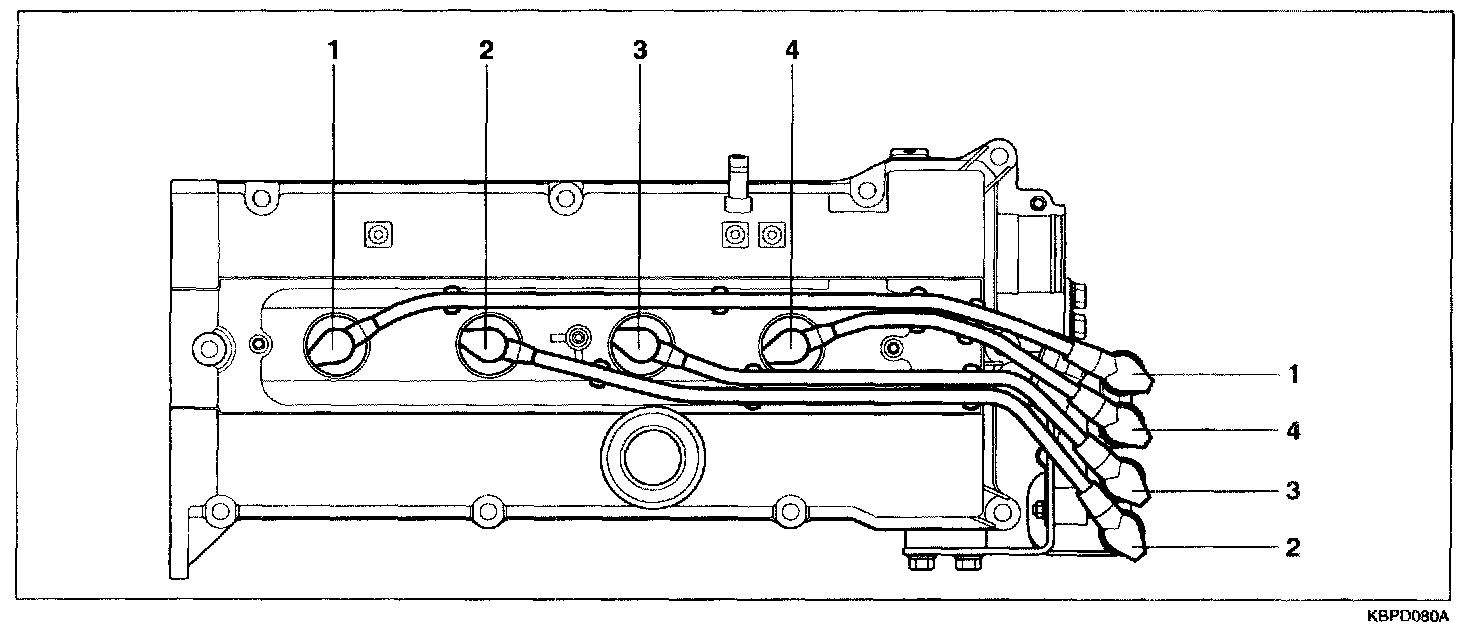

Therefore be careful to arrange the spark plug cables properly as shown.
