A/T Control Component Check

  1. THROTTLE POSITION SENSOR CHECK.

    The TPS is a variable resistor type that rotates with the throttle body shaft to sense the throttle valve angle. As the throttle shaft rotates, the output voltage of the TPS changes. The ECM detects the throttle valve opening based on voltage change. Refer to THROTTLE POSITION (TP) SENSOR .

  2. OIL TEMPERATURE SENSOR CHECK
    1. Remove the oil temperature sensor.
    2. Measure the resistance between terminals 1 and 2 of the oil temperature sensor connector.

    STANDARD VALUE:

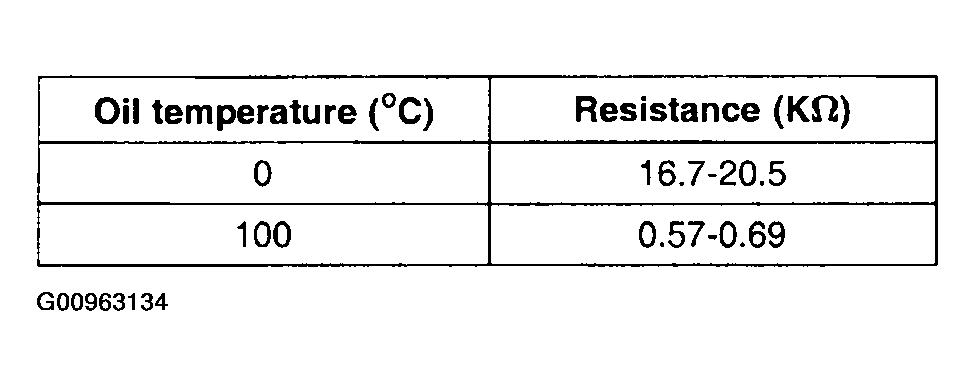

    Fig 1: Oil Temperature Sensor Resistance Table
    G00963134Courtesy of HYUNDAI MOTOR CO.

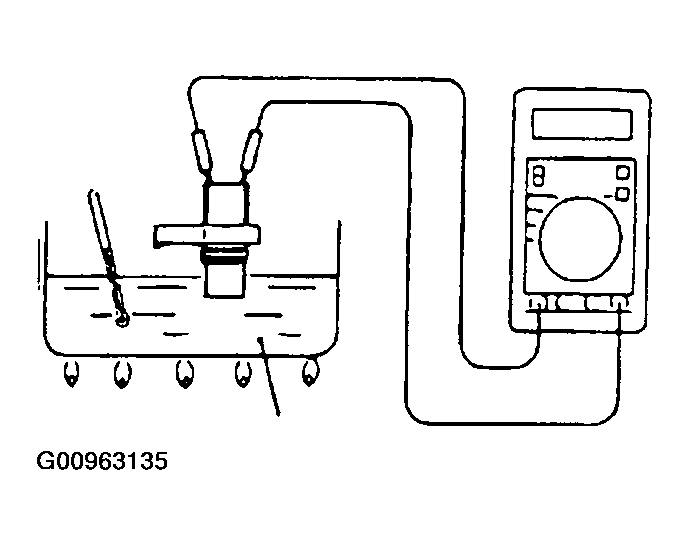

    Fig 2: Checking Oil Temperature Sensor Resistance
    G00963135Courtesy of HYUNDAI MOTOR CO.
  3. VEHICLE SPEED SENSOR CHECK
    1. Remove the vehicle speed sensor and connect a 3-10 Kohm resistance as shown in the illustration.
    2. Turn the shaft of the vehicle speed sensor and check that there is voltage between terminals 2-3 (1 turn = 4 pulses).

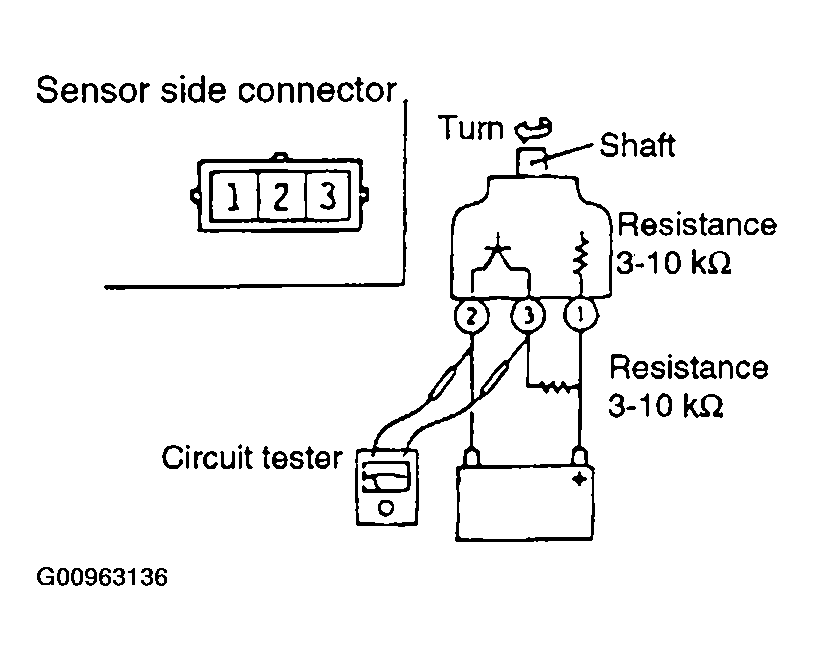

    Fig 3: Identifying Vehicle Speed Sensor Connector Terminals & Checking Resistance
    G00963136Courtesy of HYUNDAI MOTOR CO.
  4. A/T CONTROL RELAY CHECK
    1. Remove the A/T control relay.
    2. Use jumper wires to connect A/T control relay terminal 2 to the battery (+) terminal and terminal 4 to the battery (-) terminal.
    3. Check the continuity between terminal 1 and terminal 3 of the A/T control relay when the jumper wires are connected and disconnected from the battery.
    4. If there is a problem, replace the A/T control relay.

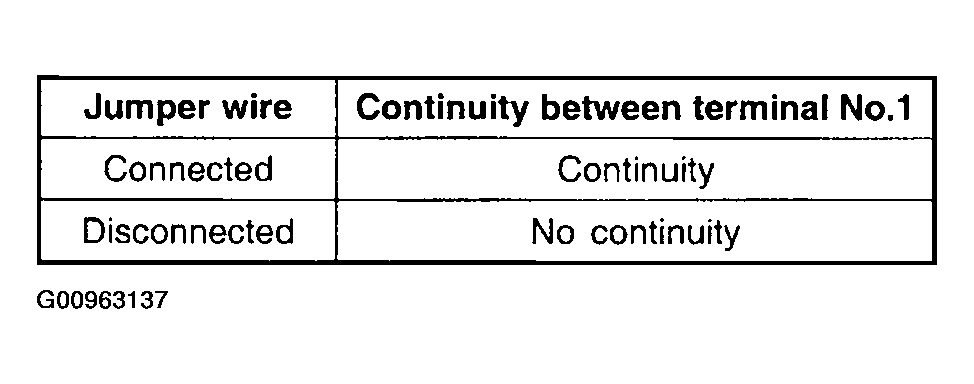

    Fig 4: A/T Control Relay Continuity Table
    G00963137Courtesy of HYUNDAI MOTOR CO.

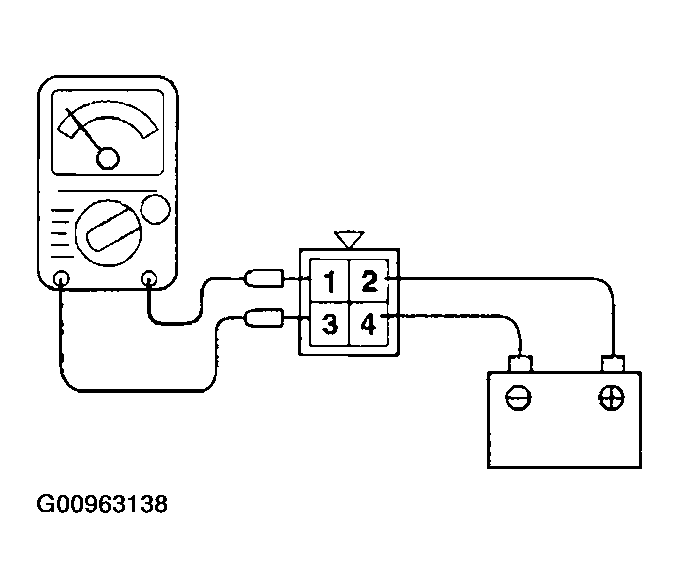

    Fig 5: Checking A/T Control Relay Continuity
    G00963138Courtesy of HYUNDAI MOTOR CO.
  5. SOLENOID VALVE CHECK
    1. Remove the valve body cover.
    2. Disconnect the connectors of each solenoid valve.

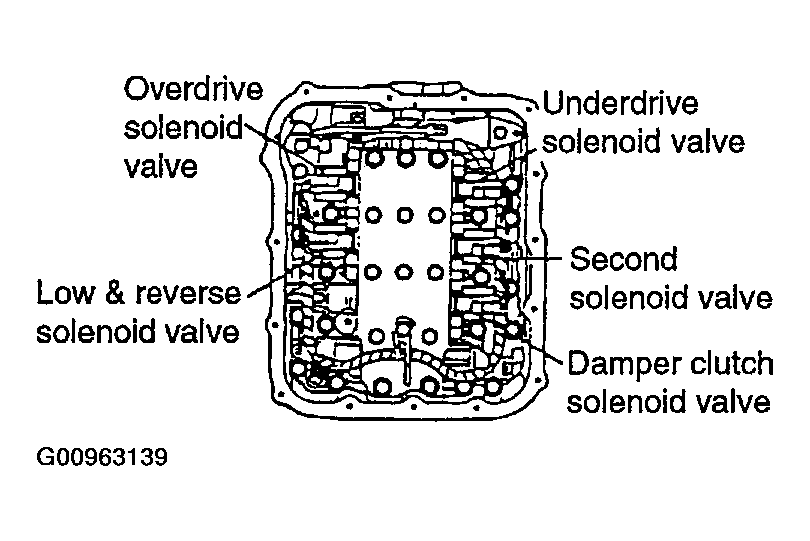

      Fig 6: Identifying Solenoid Valves
      G00963139Courtesy of HYUNDAI MOTOR CO.
    3. Measure the resistance between terminals 1 and 2 of each solenoid valve.

      STANDARD VALUE:

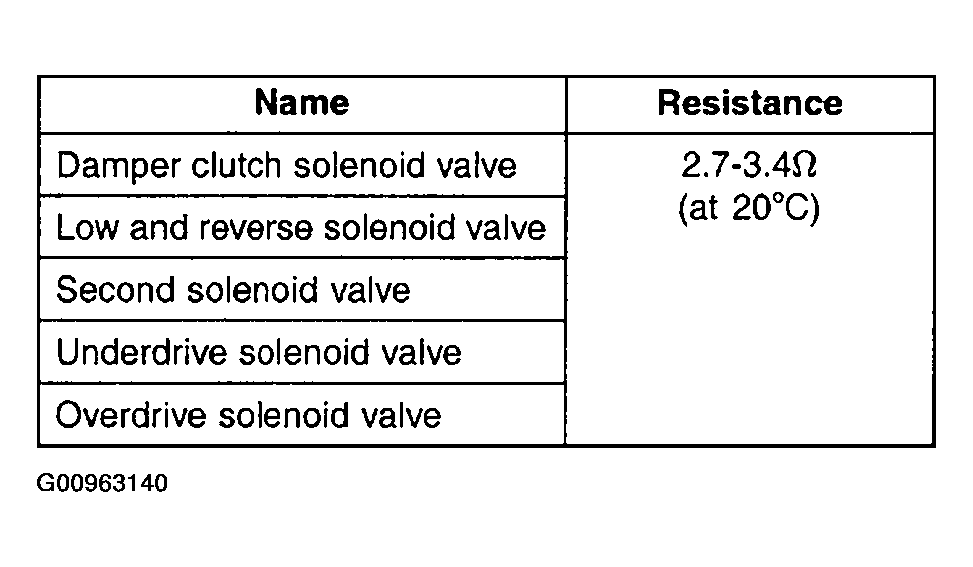

      Fig 7: Solenoid Valves Standard Value Table
      G00963140Courtesy of HYUNDAI MOTOR CO.

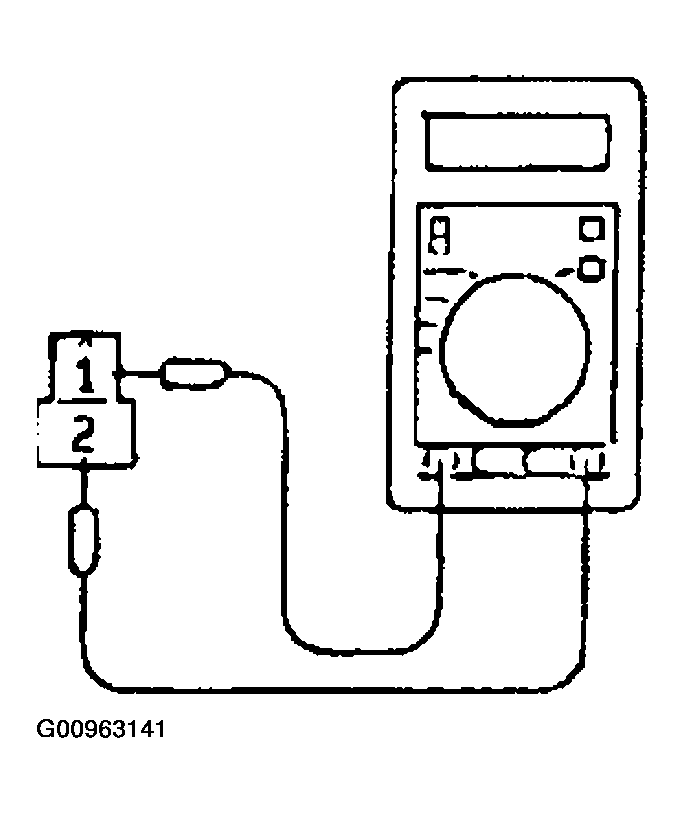

      Fig 8: Checking Solenoid Valve Resistance
      G00963141Courtesy of HYUNDAI MOTOR CO.
    4. If the resistance is outside the standard value, replace the solenoid valve.
    NOTE: Resistance of the solenoid valve connector.

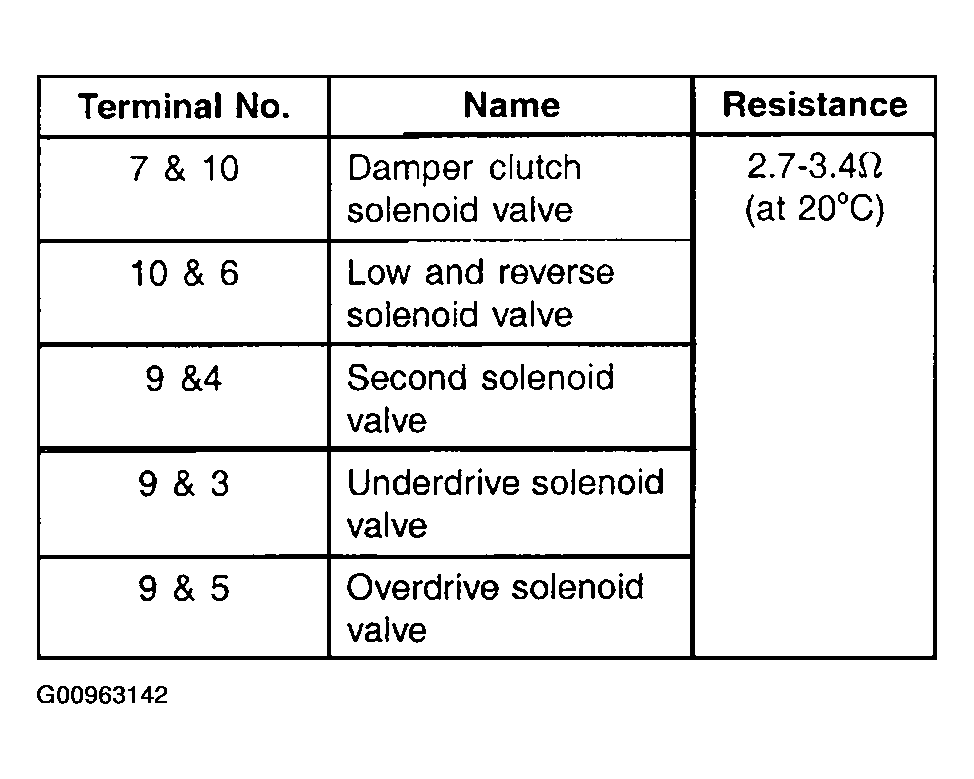

    Fig 9: Identifying Solenoid Valves Resistance Values & Connector Terminals
    G00963142Courtesy of HYUNDAI MOTOR CO.

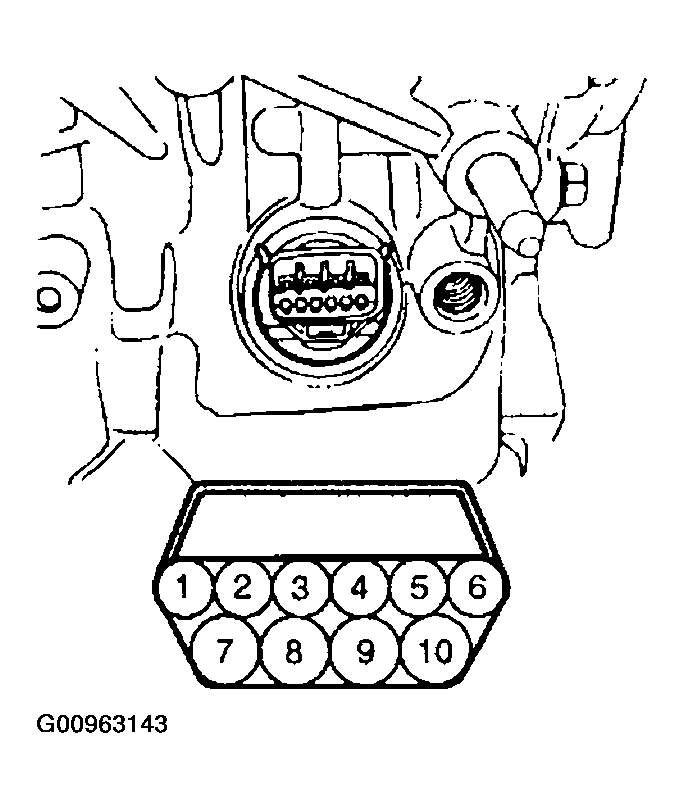

    Fig 10: Identifying Solenoid Valves Connector
    G00963143Courtesy of HYUNDAI MOTOR CO.
