Elements In Use In Each Gear
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Elements In Use In Each Gear: Notes

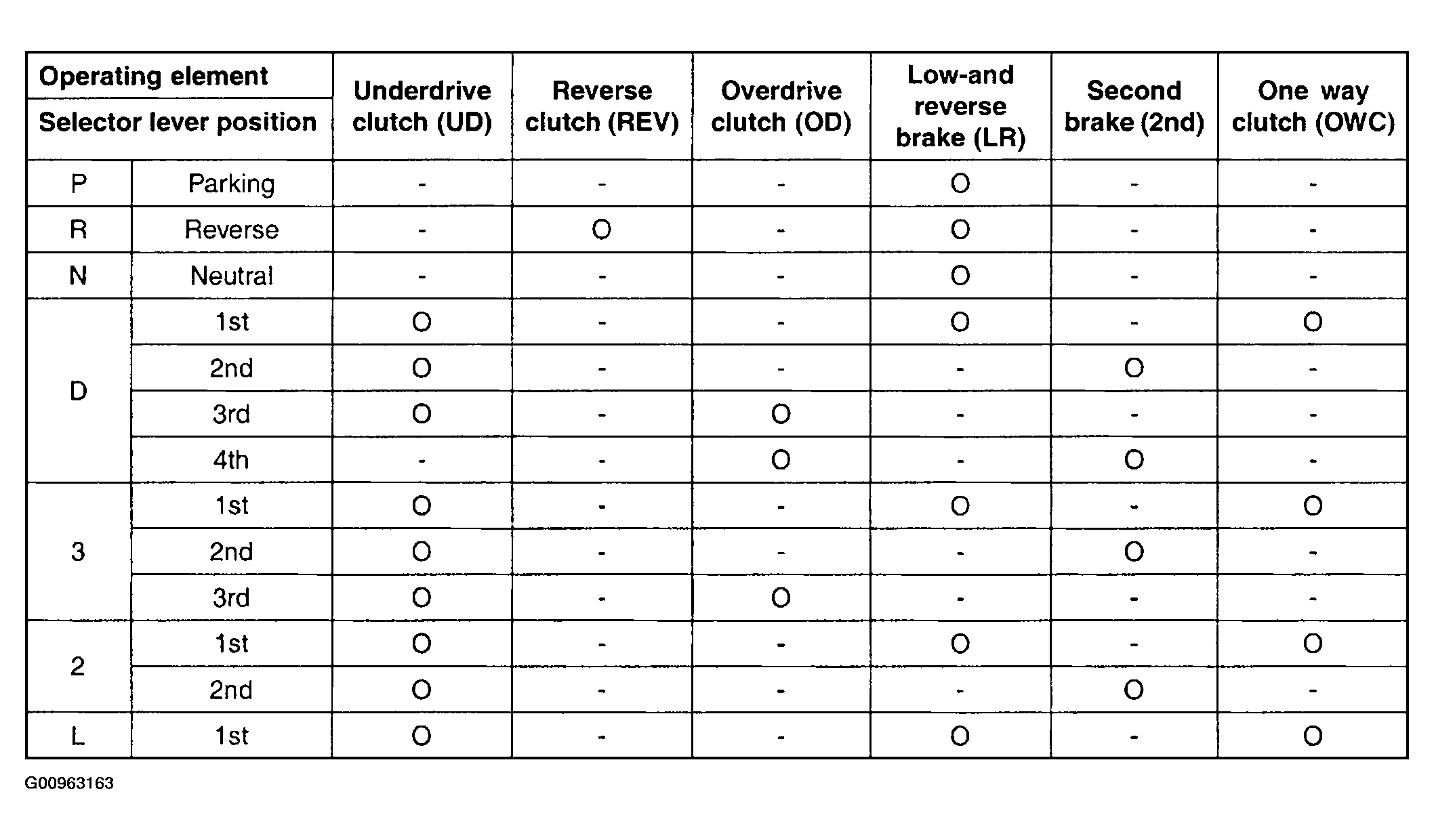

Fig 1: Elements In Use Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
