Timer/Control Unit: Service and Repair

ETACS CM

REMOVAL AND INSTALLATION




1. Disconnect the negative (-) battery terminal.

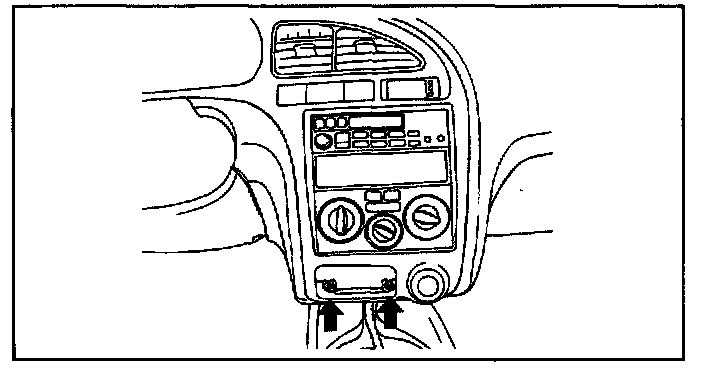

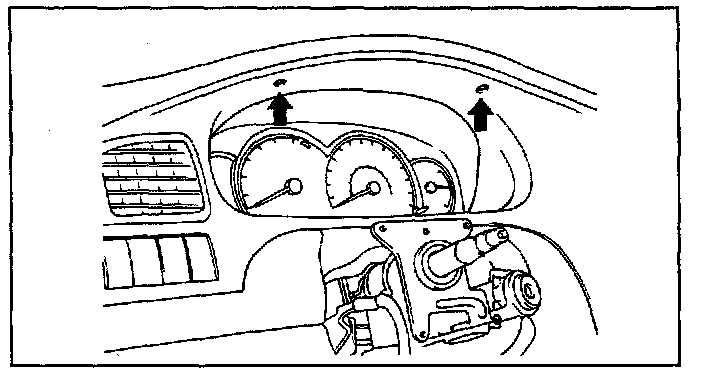

2. Remove the screws holding the instrument facia panel.

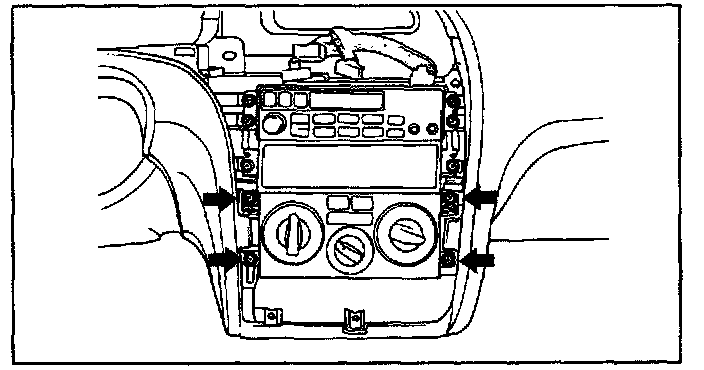

3. After removal of the ash tray, remove the screws holding the instrument facia panel and remove the instrument facia panel.




4. Remove the air conditioner and disconnect the connectors.

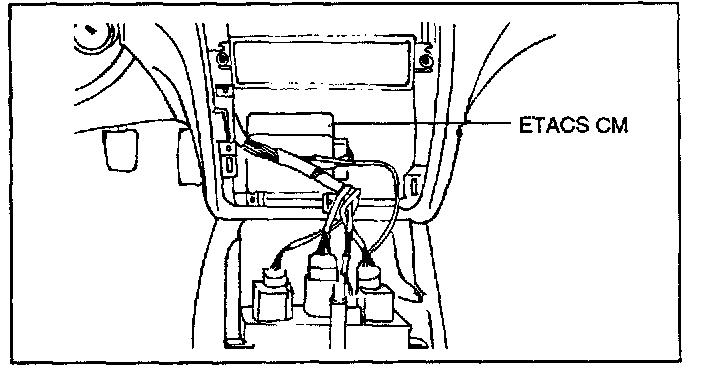

5. Remove the ETACS CM.
6. Installation is the reverse of removal.
