Water Pump Torque

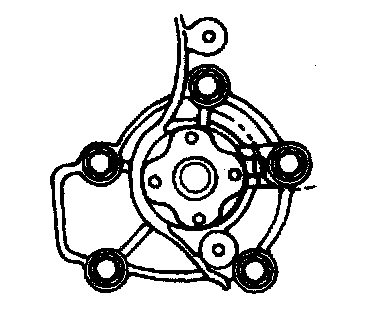

Coolant Pump to Cylinder Block Torque Specification:
20-27Nm(15-20 lb. ft.)

Tighten bolts in a criss cross pattern.
