Powertrain Control Module Location

NOTE: Powertrain Control Module (PCM) may also be referred to as Engine Control Module (ECM).

PCM is located below center of instrument panel, near floor. See Fig 1.

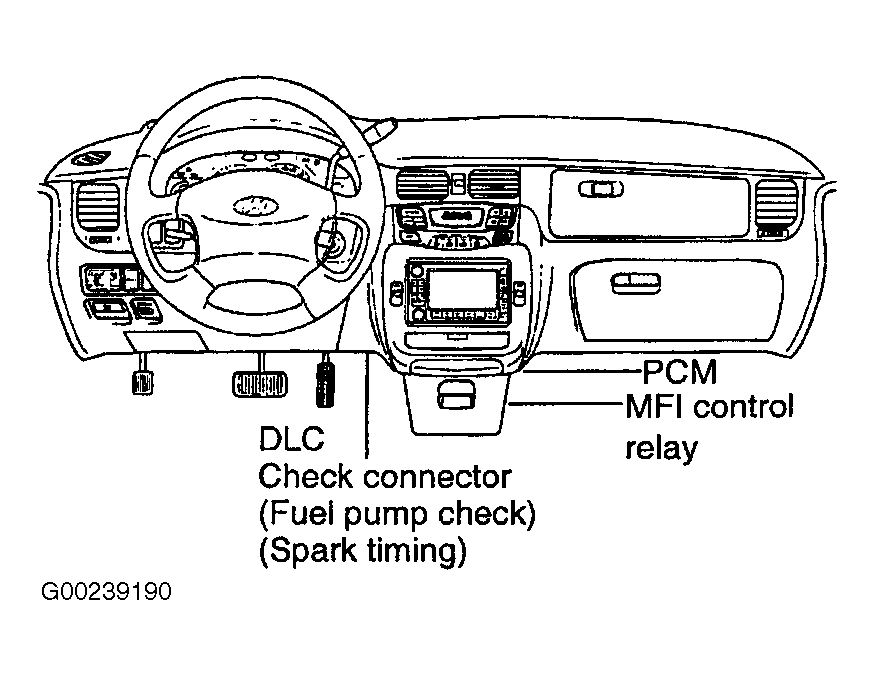

Fig 1: Locating Powertrain Control Module
G00239190Courtesy of HYUNDAI MOTOR CO.
