Transaxle Range Switch Continuity Check

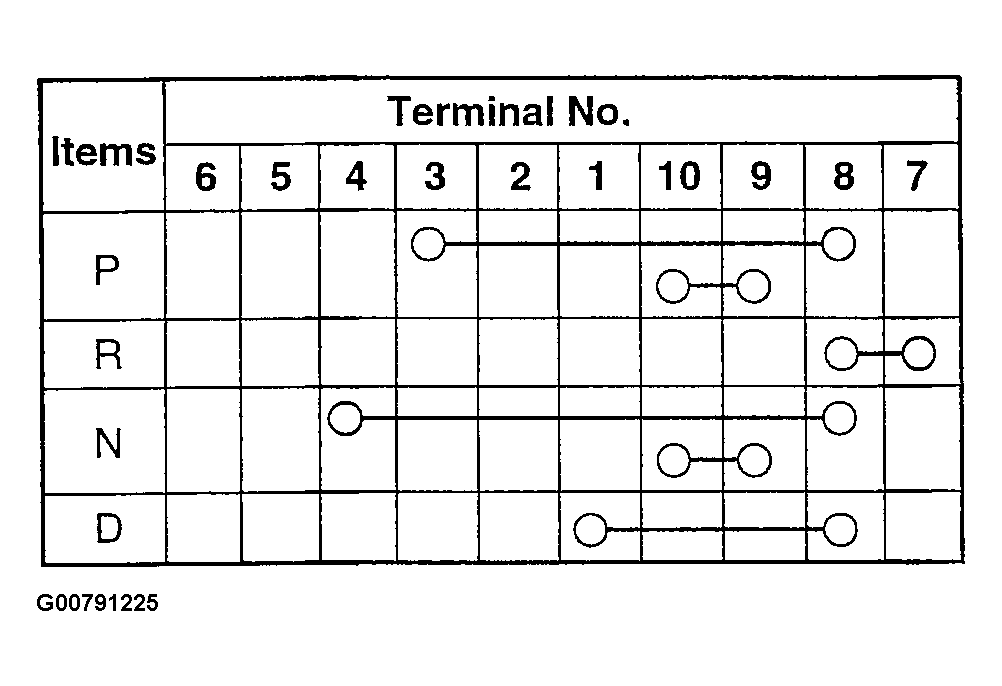

Fig 1: Transaxle Range Switch Continuity Check Table
G00791225Courtesy of HYUNDAI MOTOR CO.

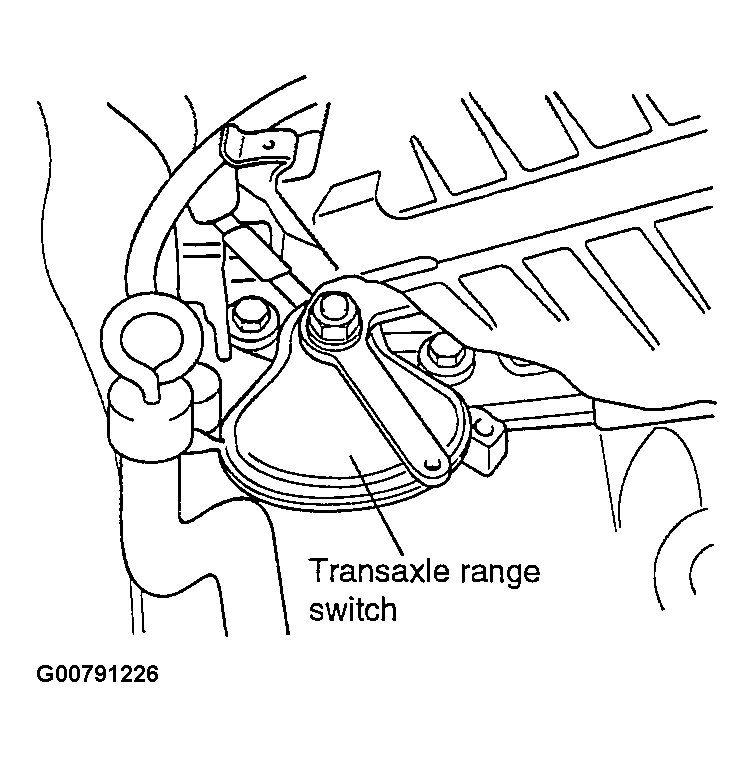

Fig 2: Locating Transaxle Range Switch
G00791226Courtesy of HYUNDAI MOTOR CO.

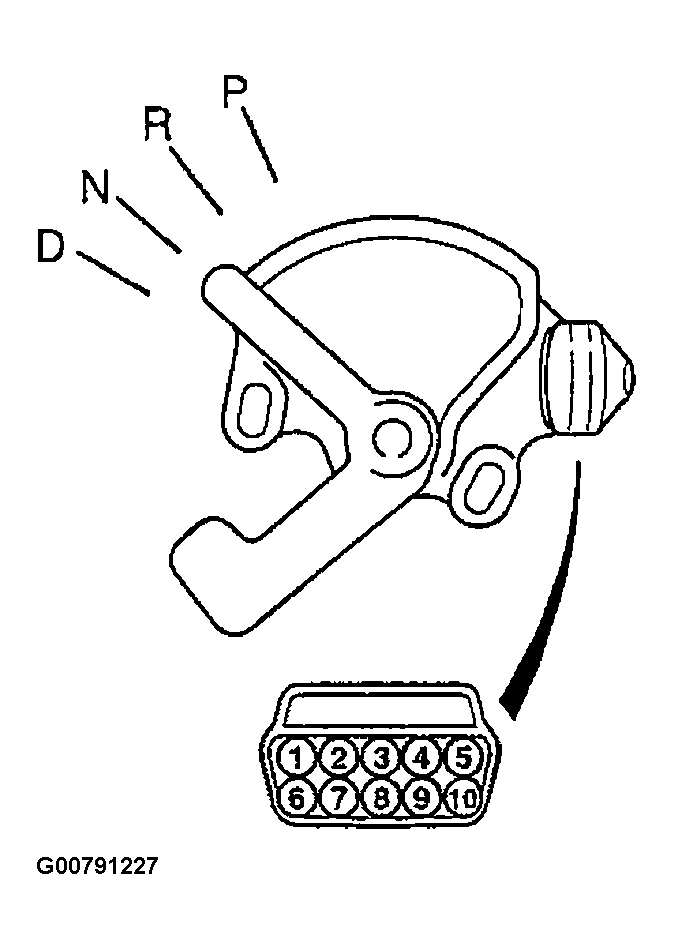

Fig 3: Identifying Transaxle Range Switch Positions & Connector Terminals
G00791227Courtesy of HYUNDAI MOTOR CO.
