Engine Control Module: Locations

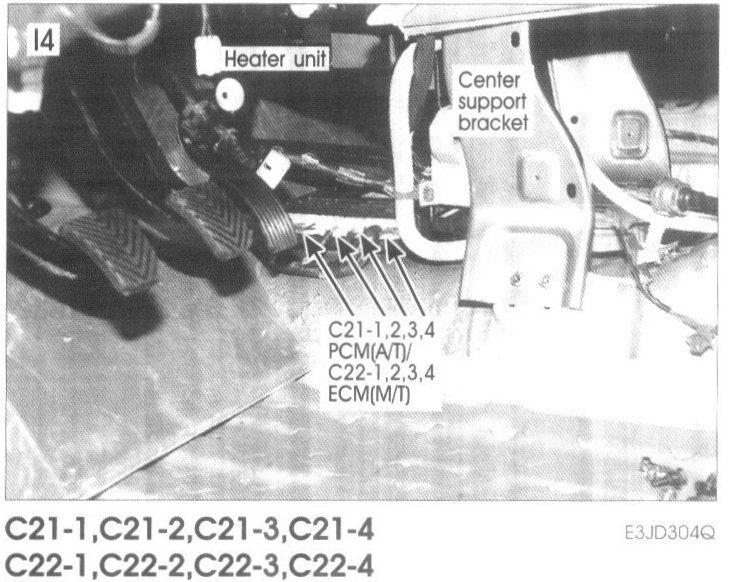

C21-1, C21-2, C21-3, C21-4, C22-1, C22-2, C22-3, C22-4:

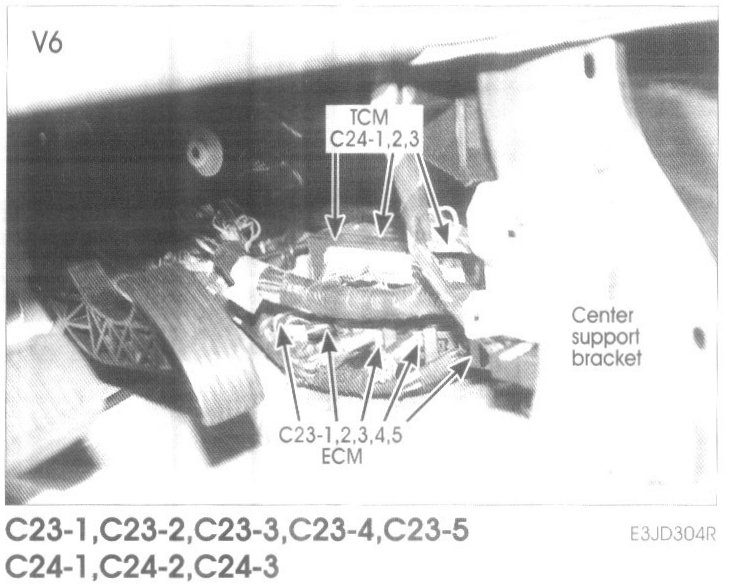

C23-1, C23-2, C23-3, C23-4, C23-5, C24-1, C24-2, C24-3:



C35 Joint Connector, C36 ATM Control Relay:
