Actuator Driving

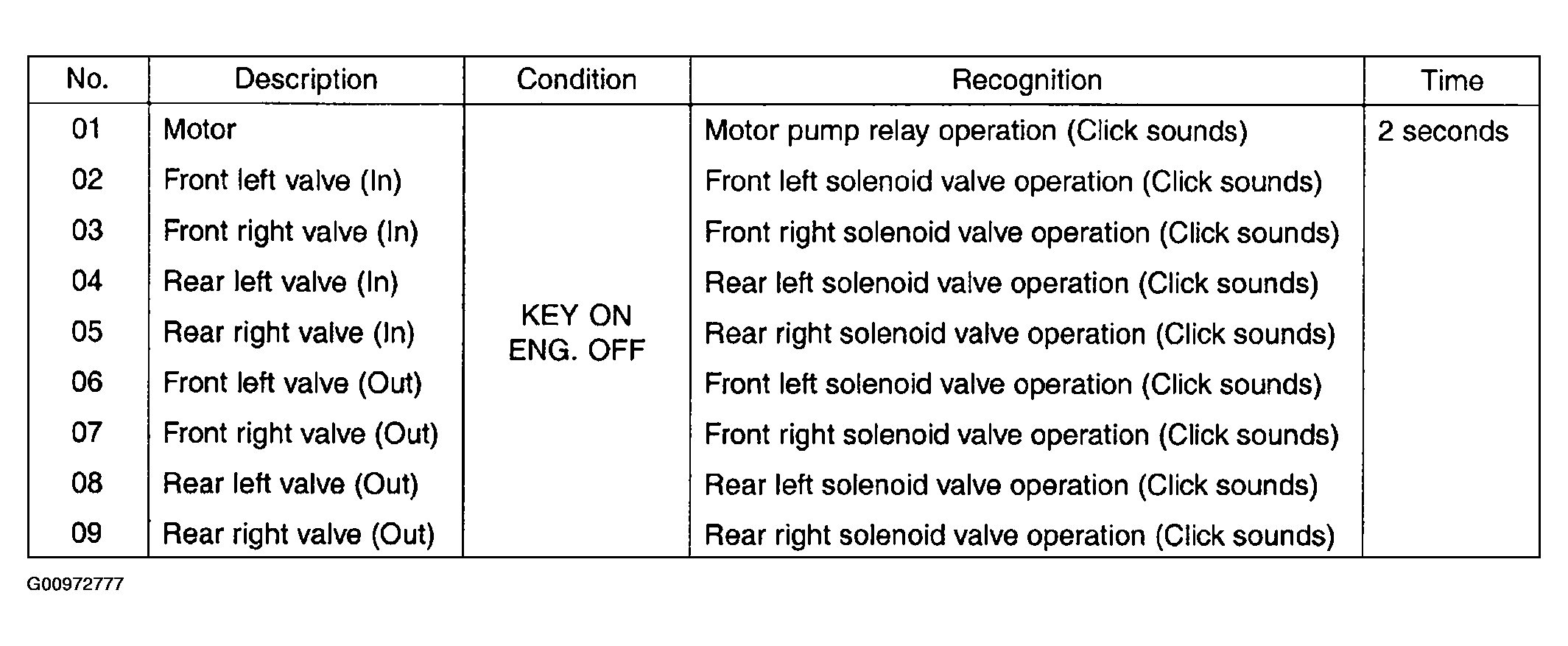

Fig 1: Actuator Driving Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
