Exhaust System

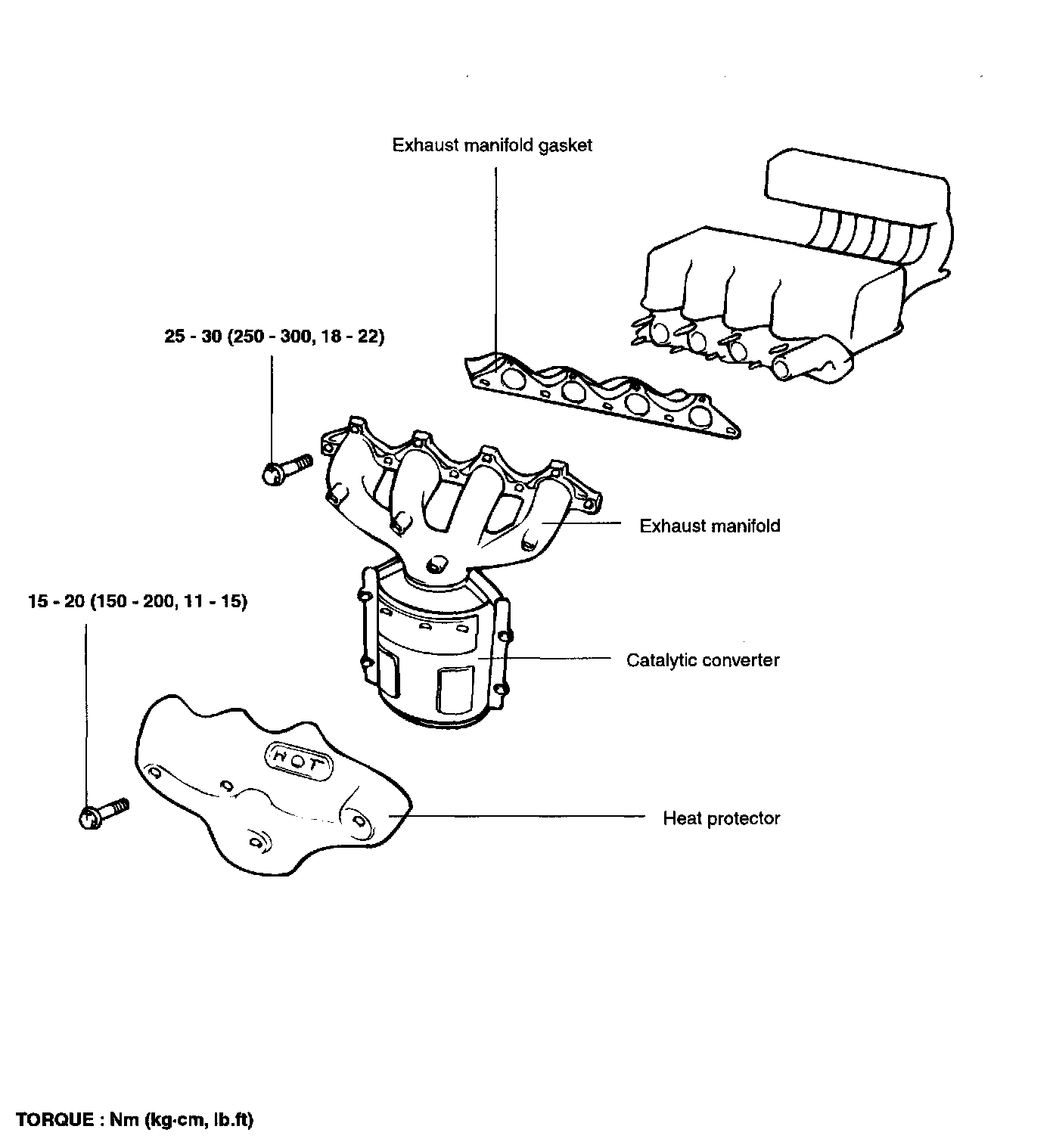

EXHAUST MANIFOLD:

Exhaust manifold to cylinder head nuts 43-55 Nm (430-550 kg-cm, 32-40 ft. lbs.)

Exhaust manifold cover to exhaust manifold bolts 15-20 Nm (150-200 kg-cm, 11-14 ft. lbs.)

Oxygen sensor to exhaust manifold 50-60 Nm (500-600 kg-cm, 36-43 ft. lbs.)

Front exhaust pipe to exhaust manifold nuts 30-40 Nm (300-400 kg-cm, 22-29 ft. lbs.)
