Programming and Relearning

TRANSMITTER CODE SAVING METHOD

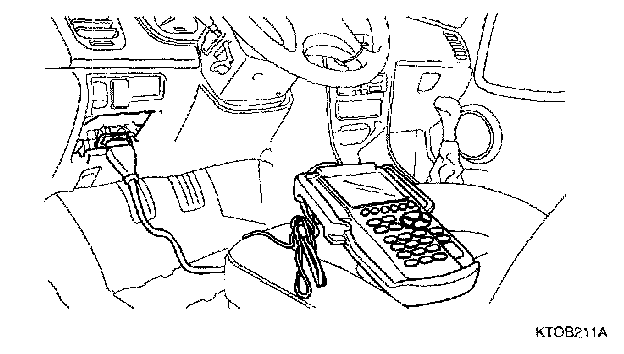

1. To store transmitter code, first connect the hi-scan (pro) to the Data Link Connector (DLC) in driver side crash pad lower panel.
2. Turn the power on hi-scan (pro) with the ignition switch ON.
3. Select the vehicle model on hi-scan (pro).
4. After selecting "CODE SAVING" menu then button "ENTER" key.
5. Proceed as follow steps and then code saving is completed.
1. Press [ENTER] key, if you are ready.
2. Press the transmitter [LOCK] button above 1 second.
3. If you save transmitter one more, press other transmitter [LOCK] button above 1 second.
4. Turn the hi-scan (pro) off, and check the keyless entry system.
