Intake Manifold

INTAKE MANIFOLD 2.7L:

Air intake surge tank to intake manifold (bolt) 15 - 20 Nm (11 - 14 ft. lbs.)
Air intake surge tank to intake manifold (nut) 15 - 20 Nm (11 - 14 ft. lbs.)
Throttle body to surge tank bolt 15 - 20 Nm (11 - 14 ft. lbs.)

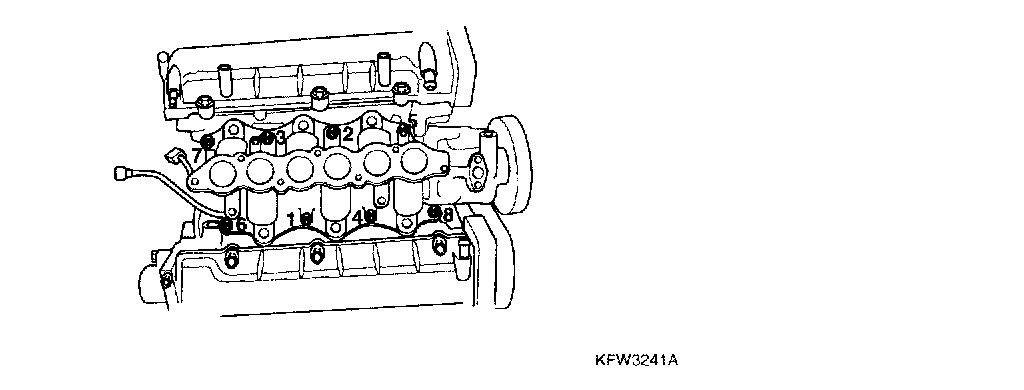

Intake Manifold to Cylinder Head Bolt Sequence:

Intake manifold to cylinder head 19 - 21 Nm (14 - 15 ft. lbs.)
