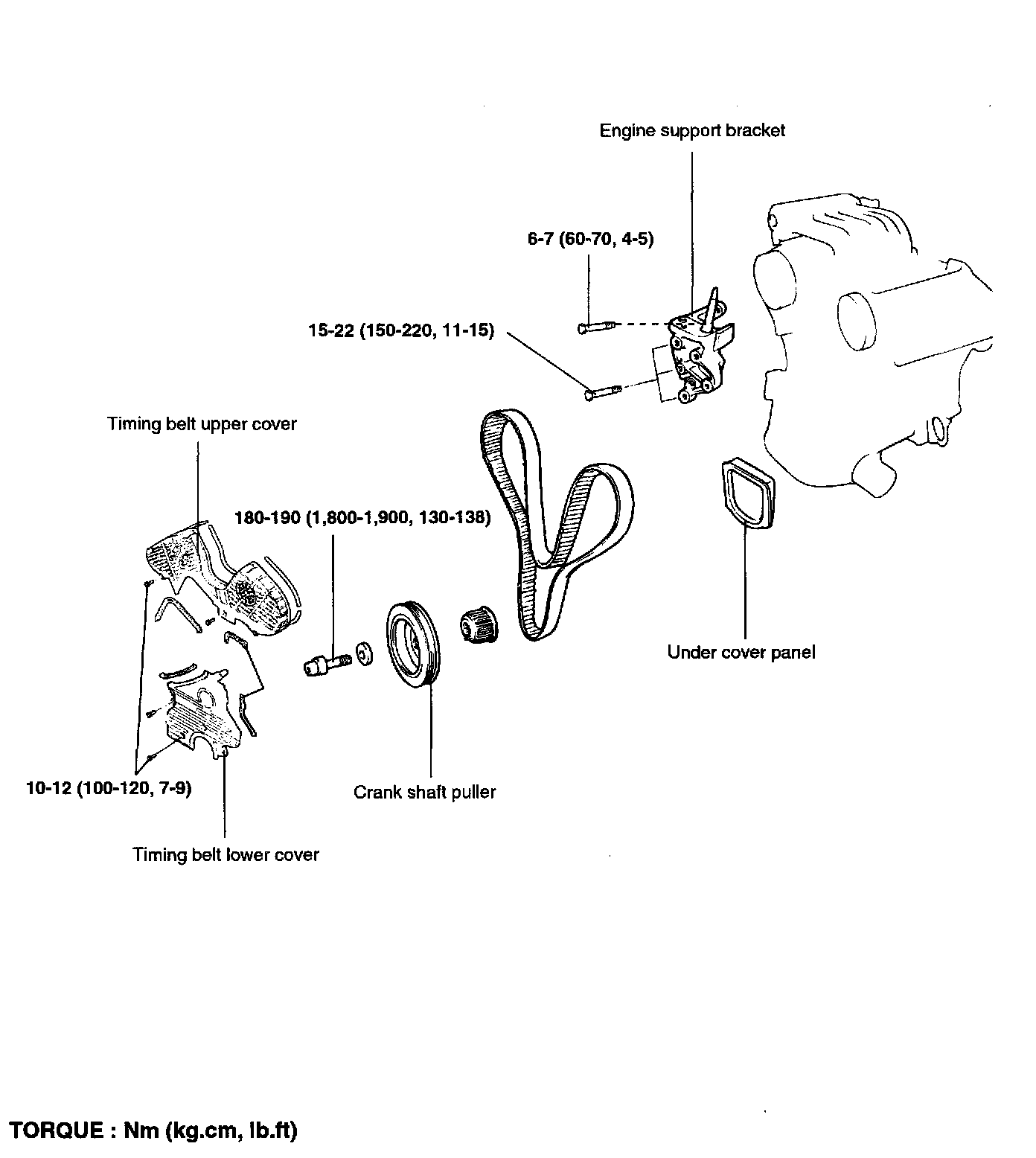

Timing Components

TIMING BELT 2.7L:

Timing belt tensioner pulley bolt 43 - 55 Nm (31 - 40 ft. lbs.)
Timing belt idler pulley bolt 50 - 60 Nm (36 - 43 ft. lbs.)
Timing belt tensioner arm Fixed bolt 35 - 55 Nm (25 - 40 ft. lbs.)
Auto tensioner fixed bolt 20 - 27 Nm (14 - 20 ft. lbs.)
