Fail Safe

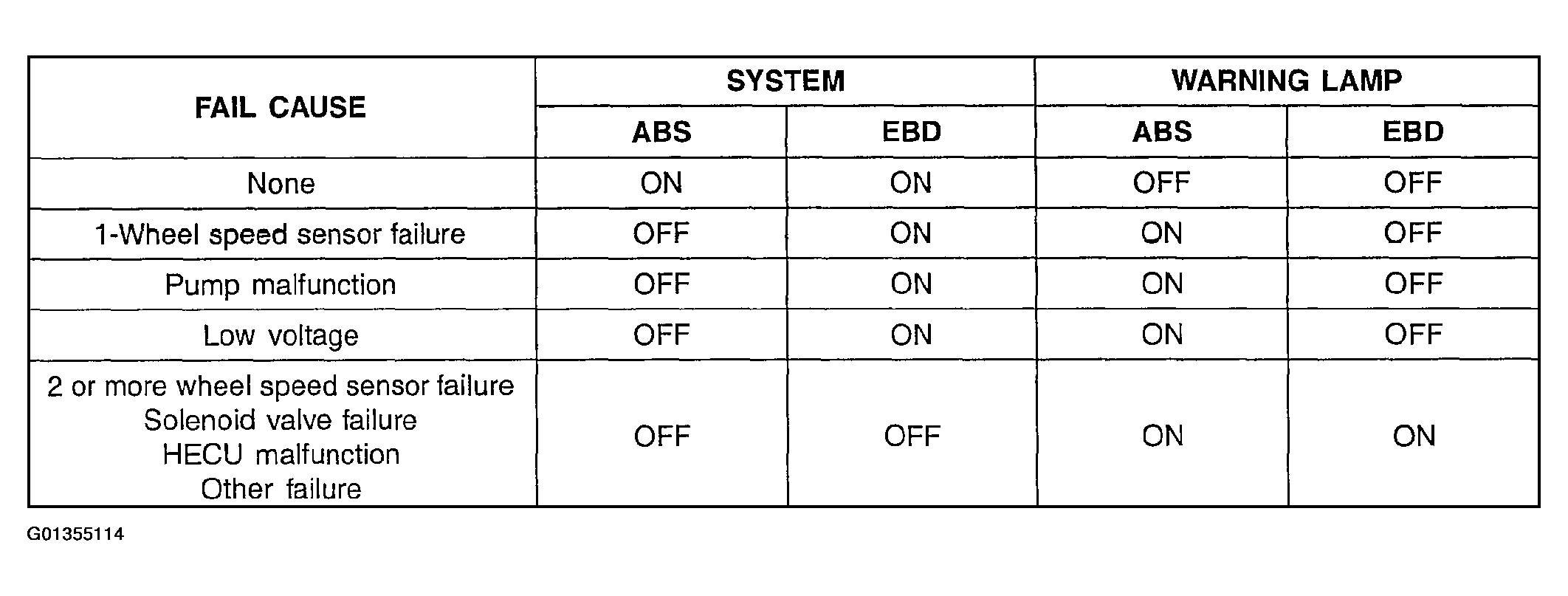

Fig 1: Anti-Lock Brake System State & Warning Lamp State During Fail Safe Mode
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
