Inspection At HECU Terminals

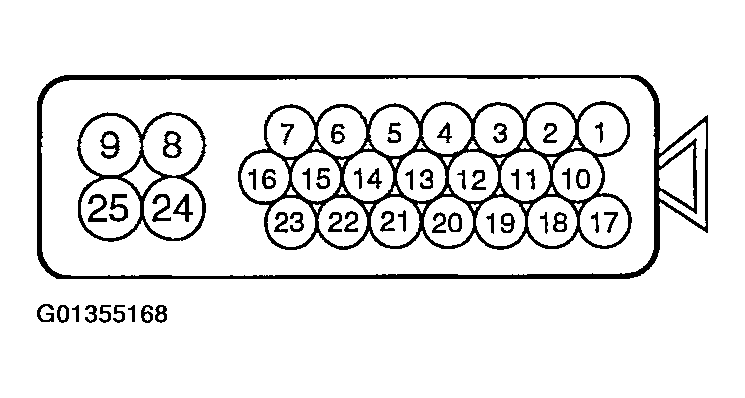

Fig 1: Identifying HECU Wiring Harness Side Connector Terminals
G01355168Courtesy of HYUNDAI MOTOR CO.

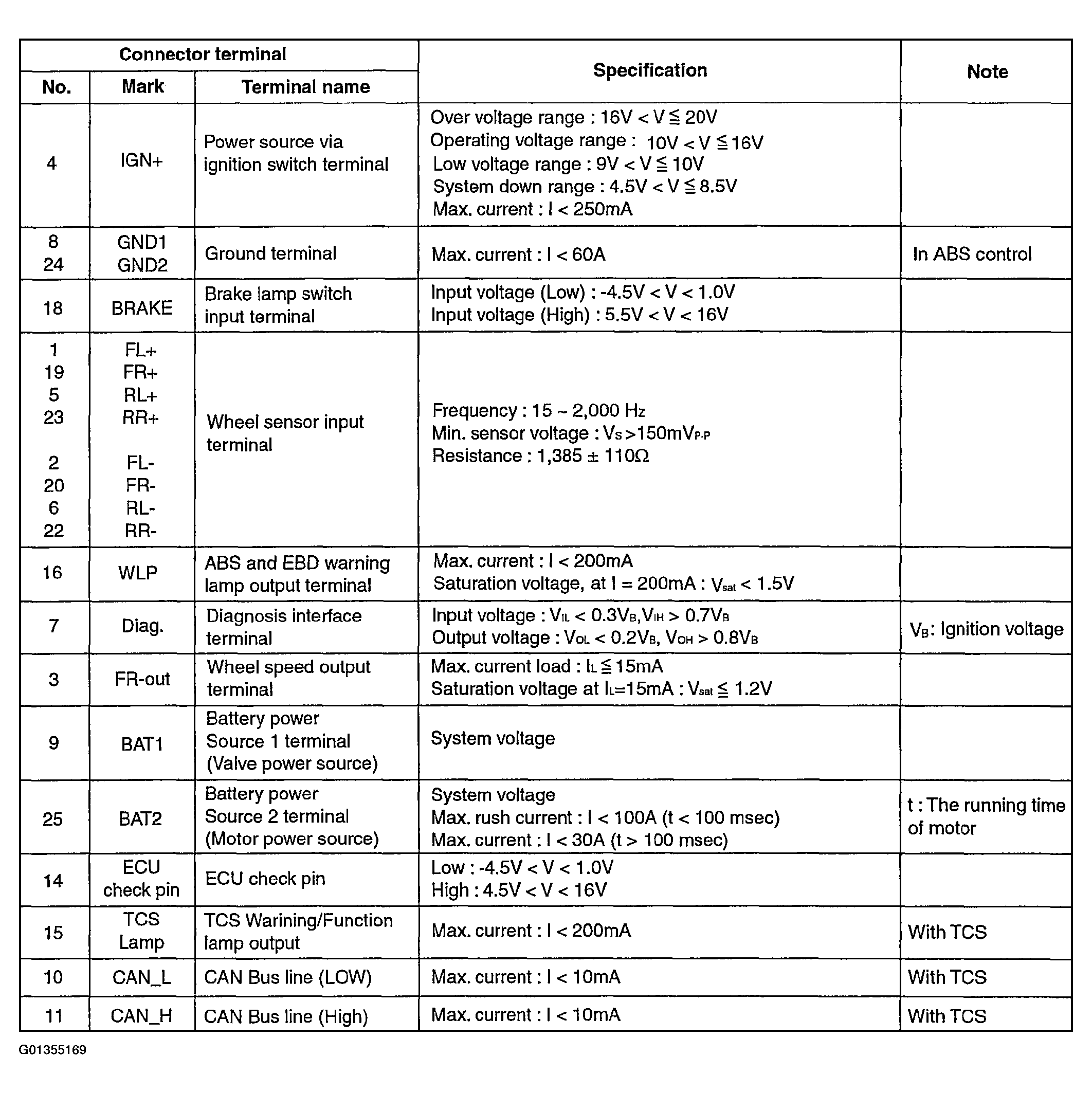

Fig 2: Identifying HECU Wiring Harness Side Connector Terminals & Specifications
G01355169Courtesy of HYUNDAI MOTOR CO.
