Power Windows: Components

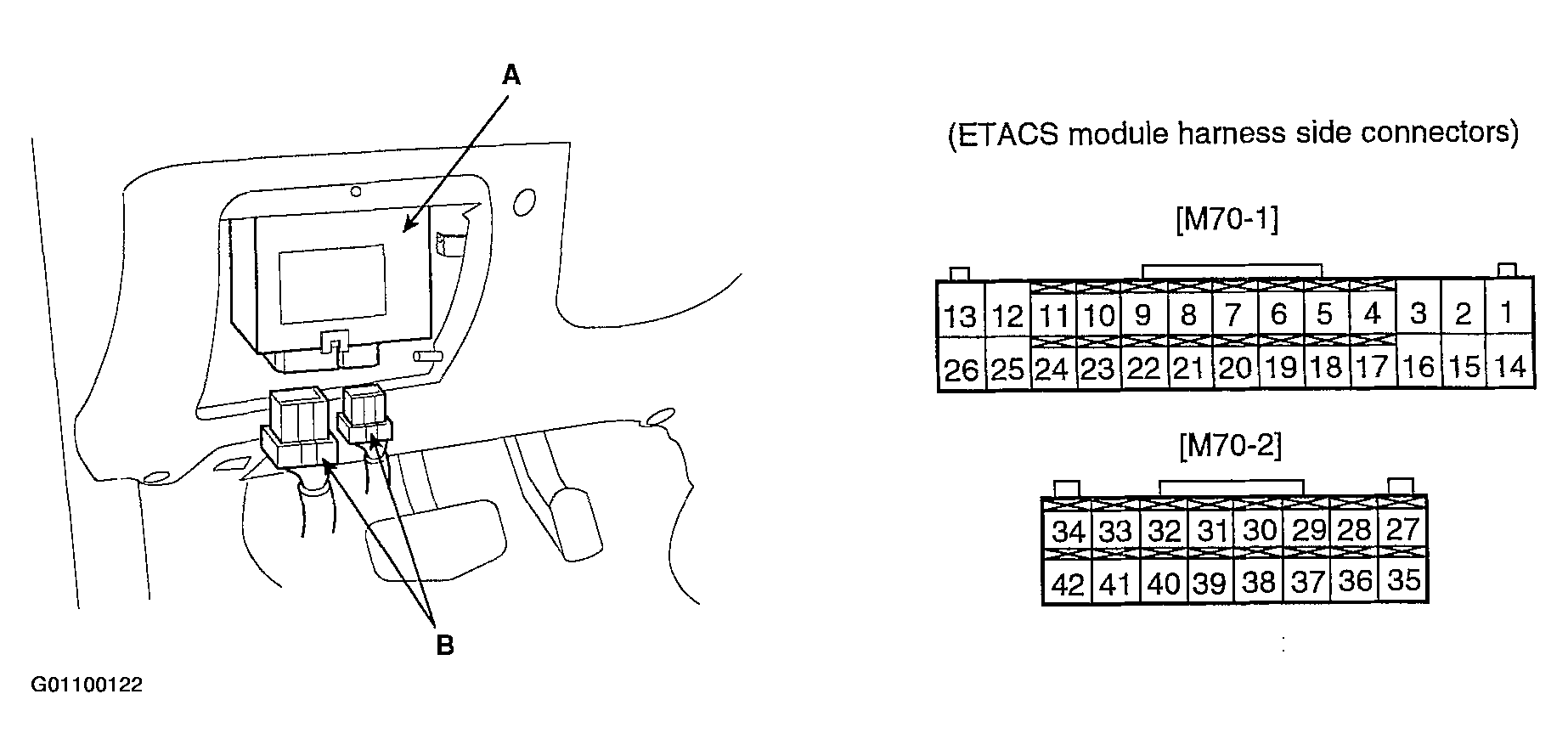

Fig 1: Identifying Electronic Time & Alarm Control Module & Connector Terminals
G01100122Courtesy of HYUNDAI MOTOR CO.
