Trouble Shooting

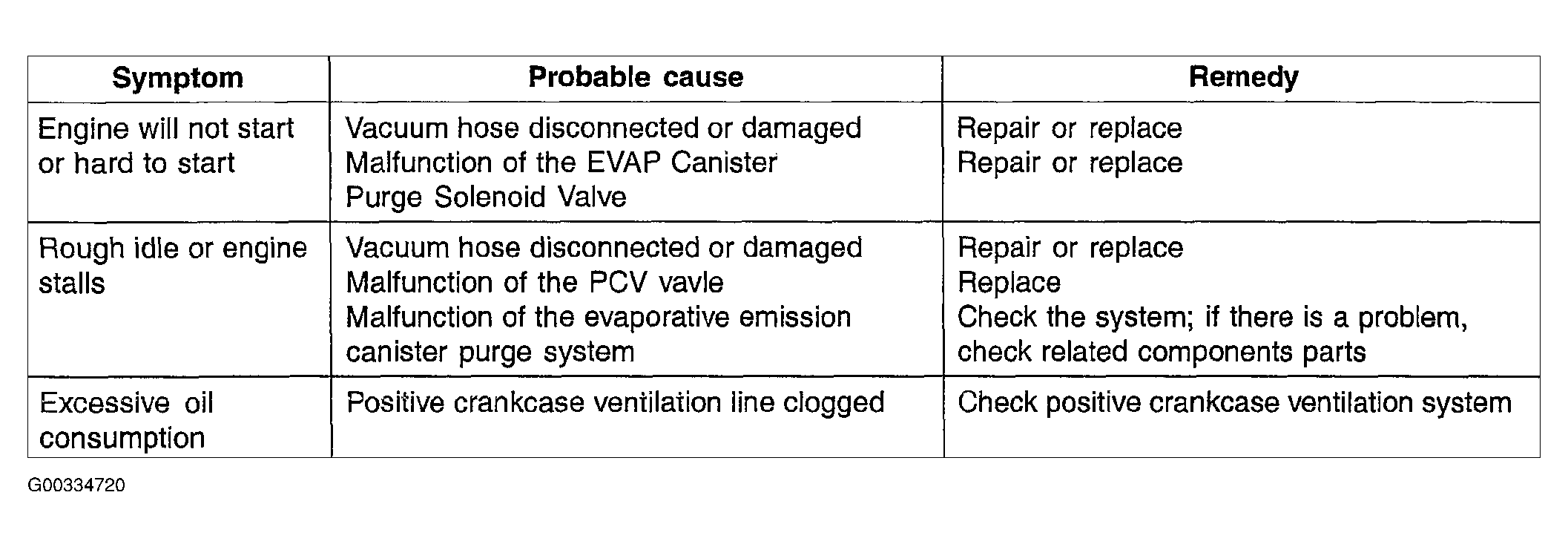

Fig 1: Trouble Shooting Symptom Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
