Hyundai
>>
2004
>>
Elantra GLS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System
>>
DTC Trouble Shooting Procedures
>>
DTC P0340: Camshaft Position Sensor (CMPS) Circuit Malfunction
>>
Schematic Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Schematic Diagram

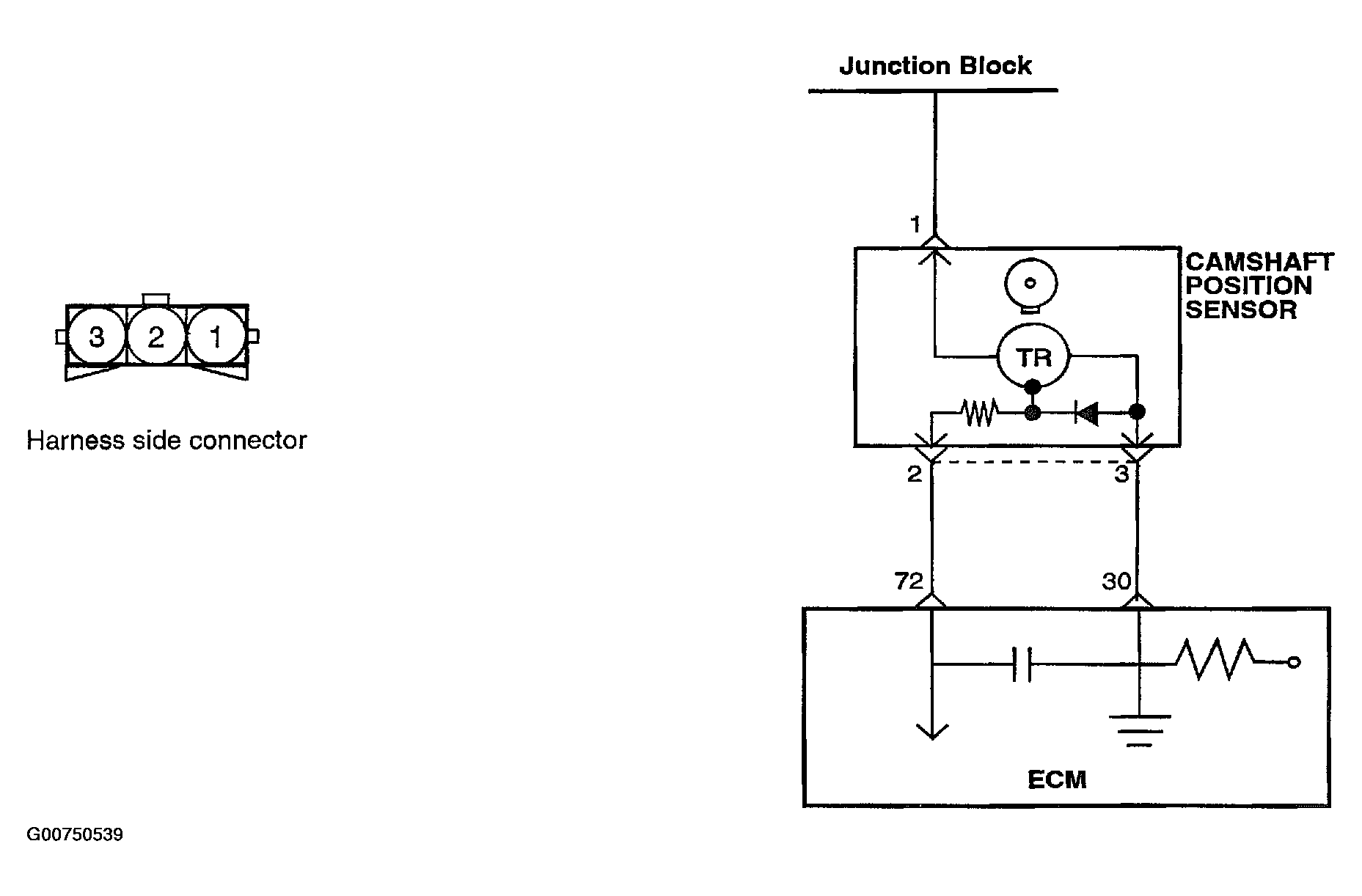

Fig 1: CMPS Schematic
Courtesy of HYUNDAI MOTOR CO.
