6. Check For Open In Harness

Turn ignition switch to OFF position and keep the injector and ECM connectors disconnected.
Measure resistance between terminal 2 of the injector harness connector and 61 of the ECM harness connector.

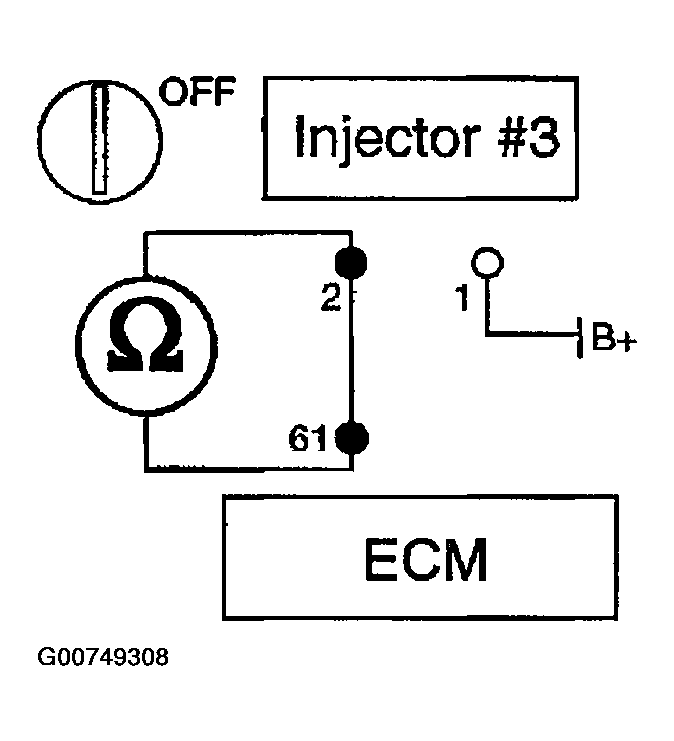

Fig 1: Checking Fuel Injector Harness For Open Circuit
Courtesy of HYUNDAI MOTOR CO.
- Specification: below 1Ω

Does resistance indicate continuity?

Yes: Proceed with ECM problem procedure.

No: Repair open in harness.
