Suspect Area Related To DTC
NOTE:
Suspect are as for each diagnostic item do not list all probable causes.

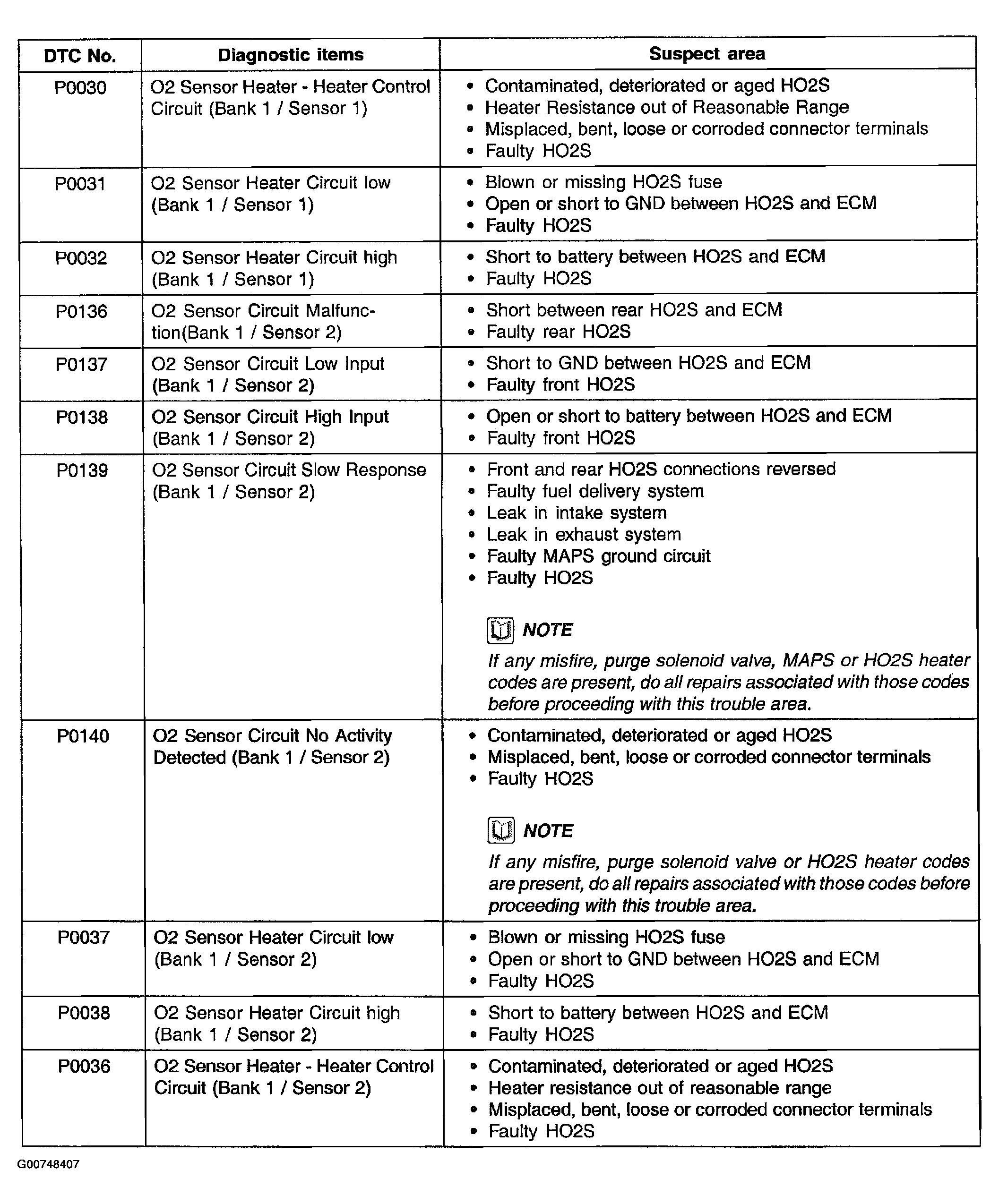

Fig 1: DTC Description/Probable Causes Table (1 Of 8)
Courtesy of HYUNDAI MOTOR CO.

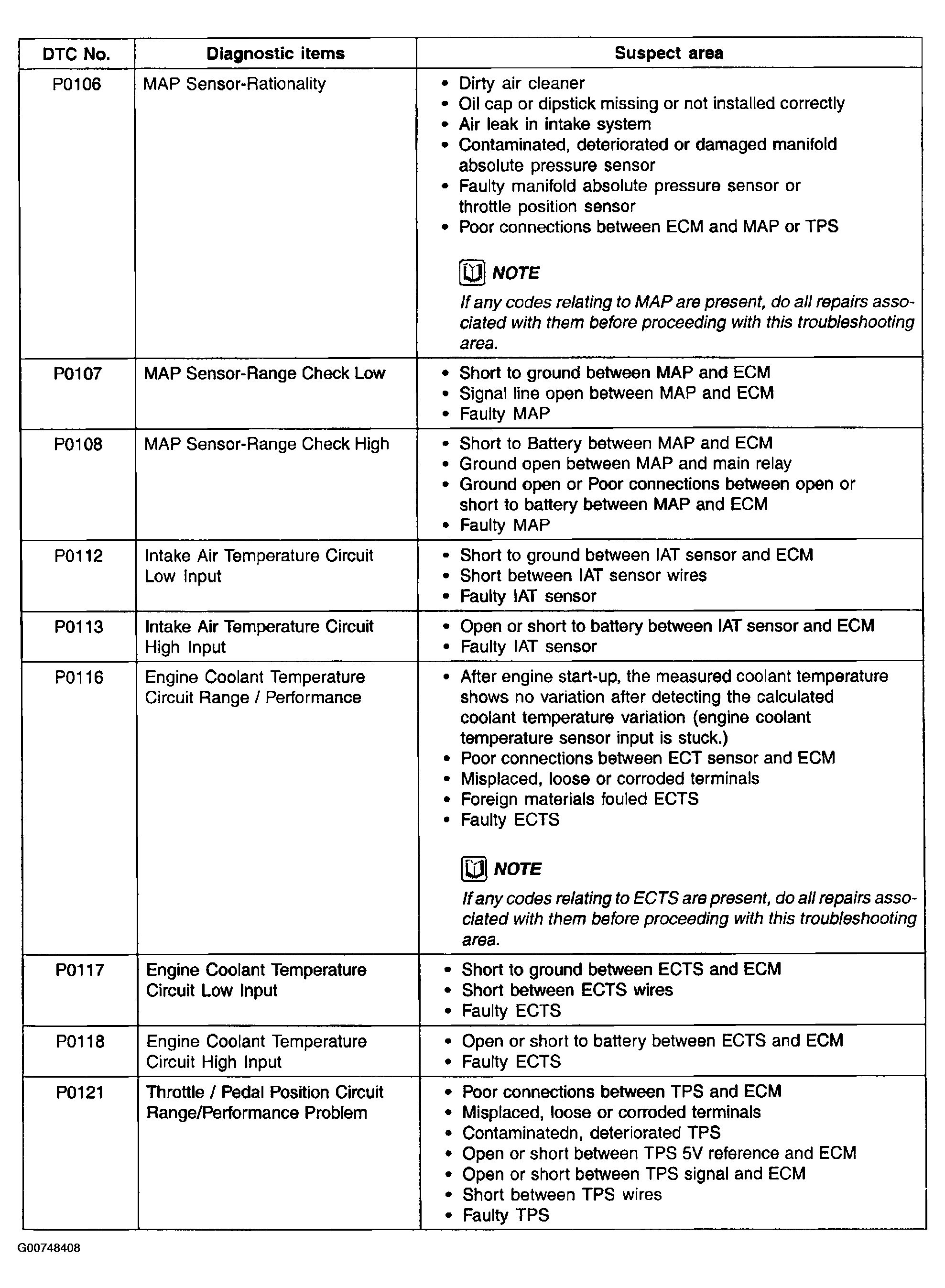

Fig 2: DTC Description/Probable Causes Table (2 Of 8)
Courtesy of HYUNDAI MOTOR CO.

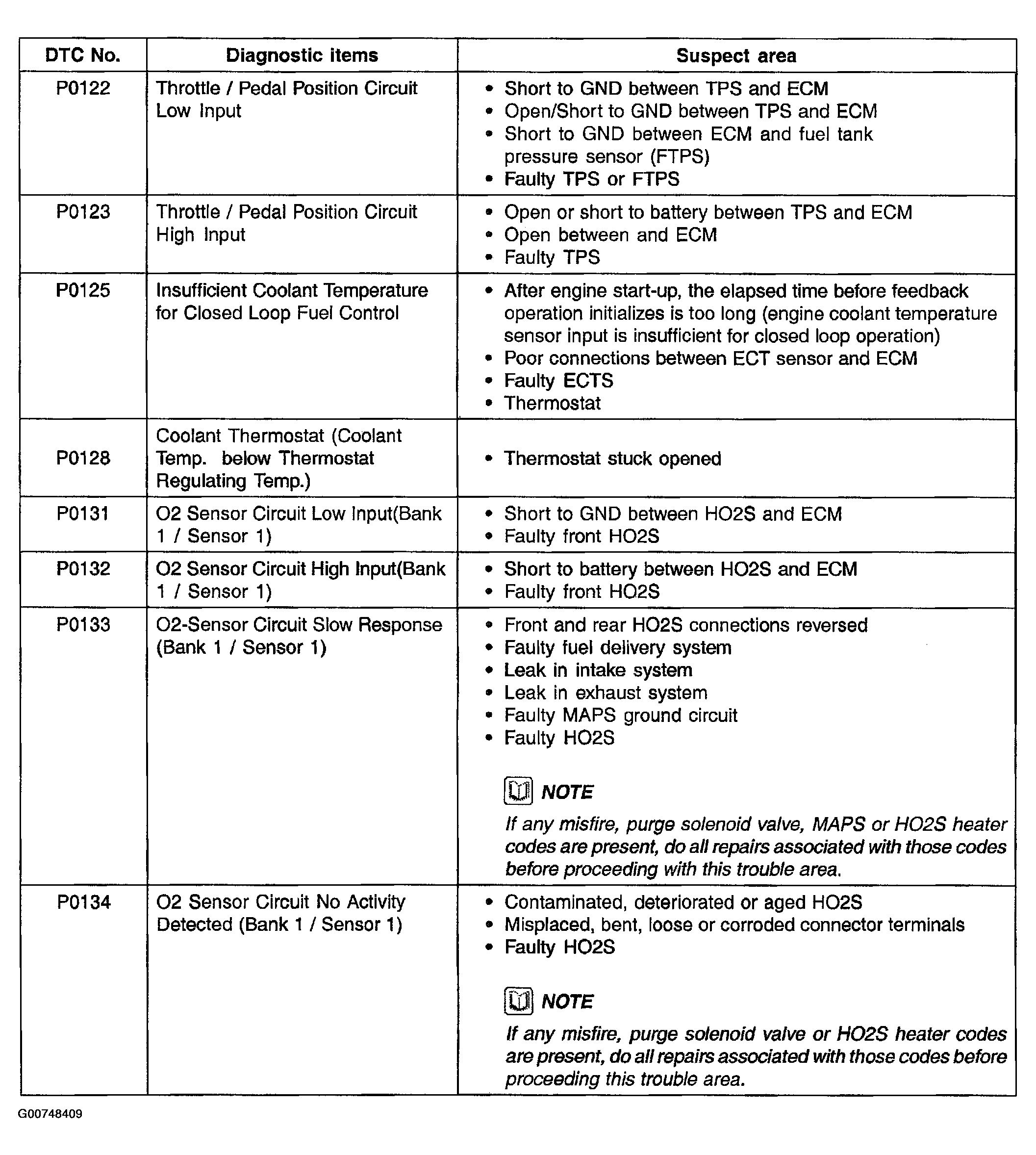

Fig 3: DTC Description/Probable Causes Table (3 Of 8)
Courtesy of HYUNDAI MOTOR CO.

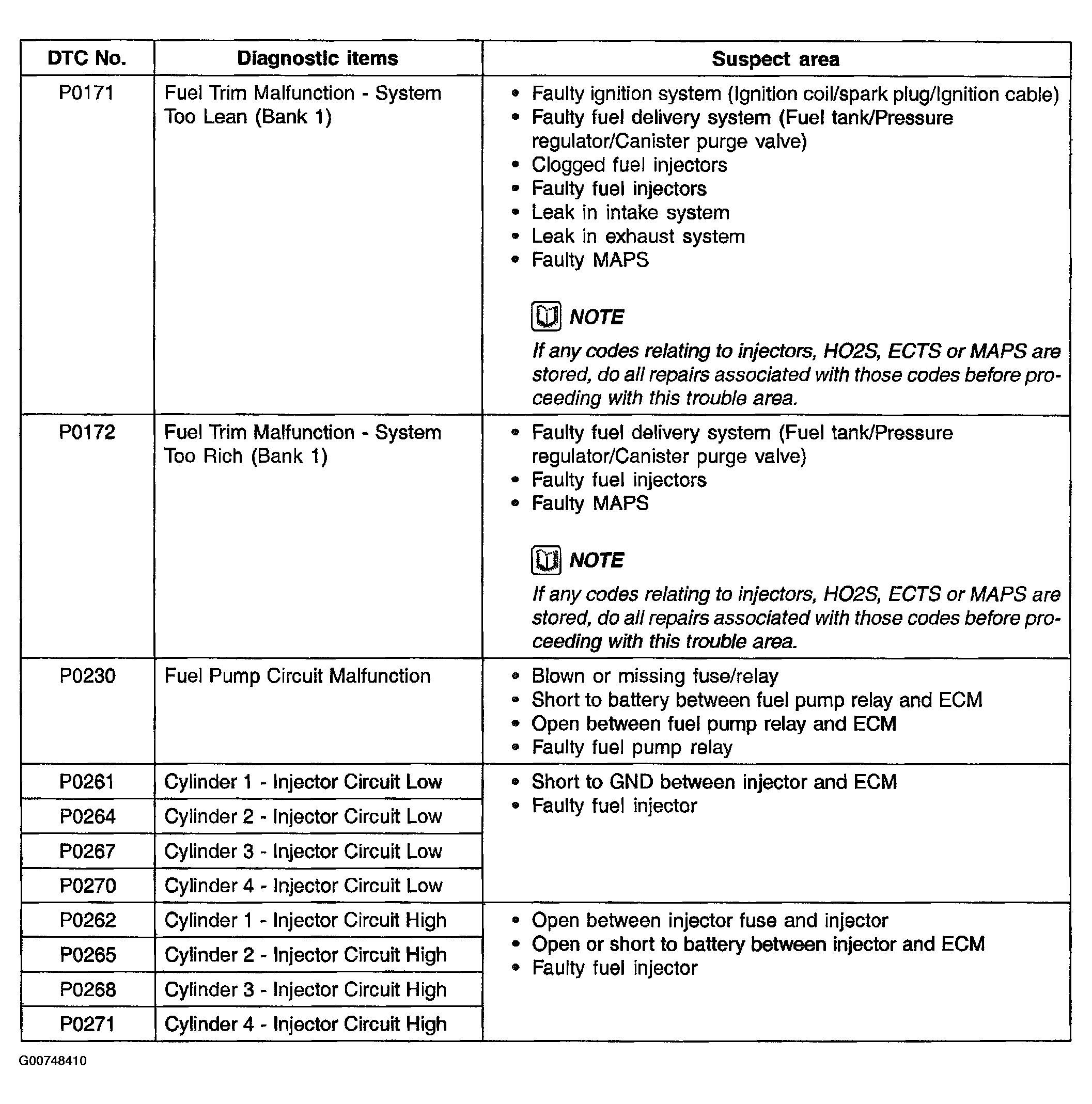

Fig 4: DTC Description/Probable Causes Table (4 Of 8)
Courtesy of HYUNDAI MOTOR CO.

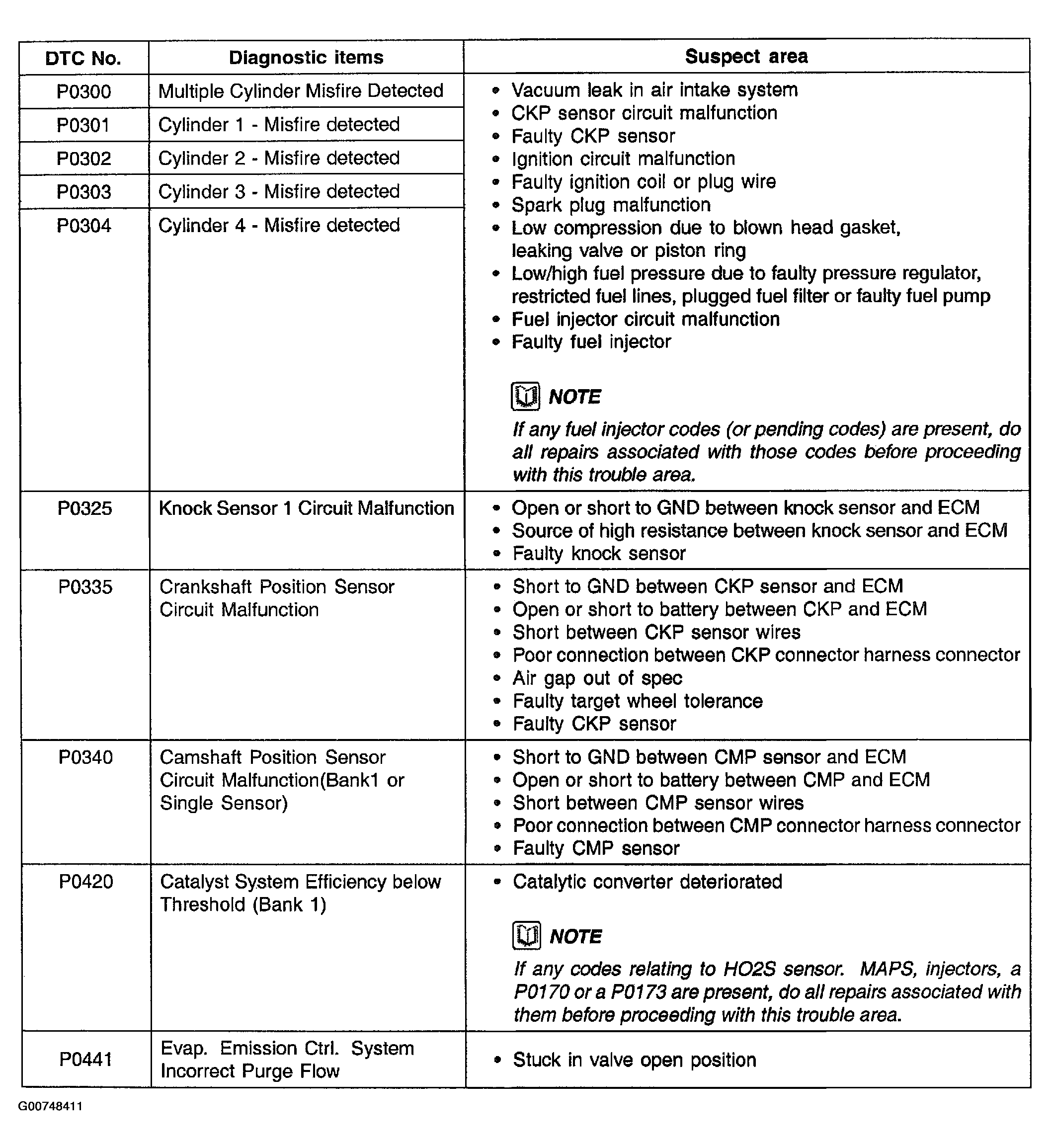

Fig 5: DTC Description/Probable Causes Table (5 Of 8)
Courtesy of HYUNDAI MOTOR CO.

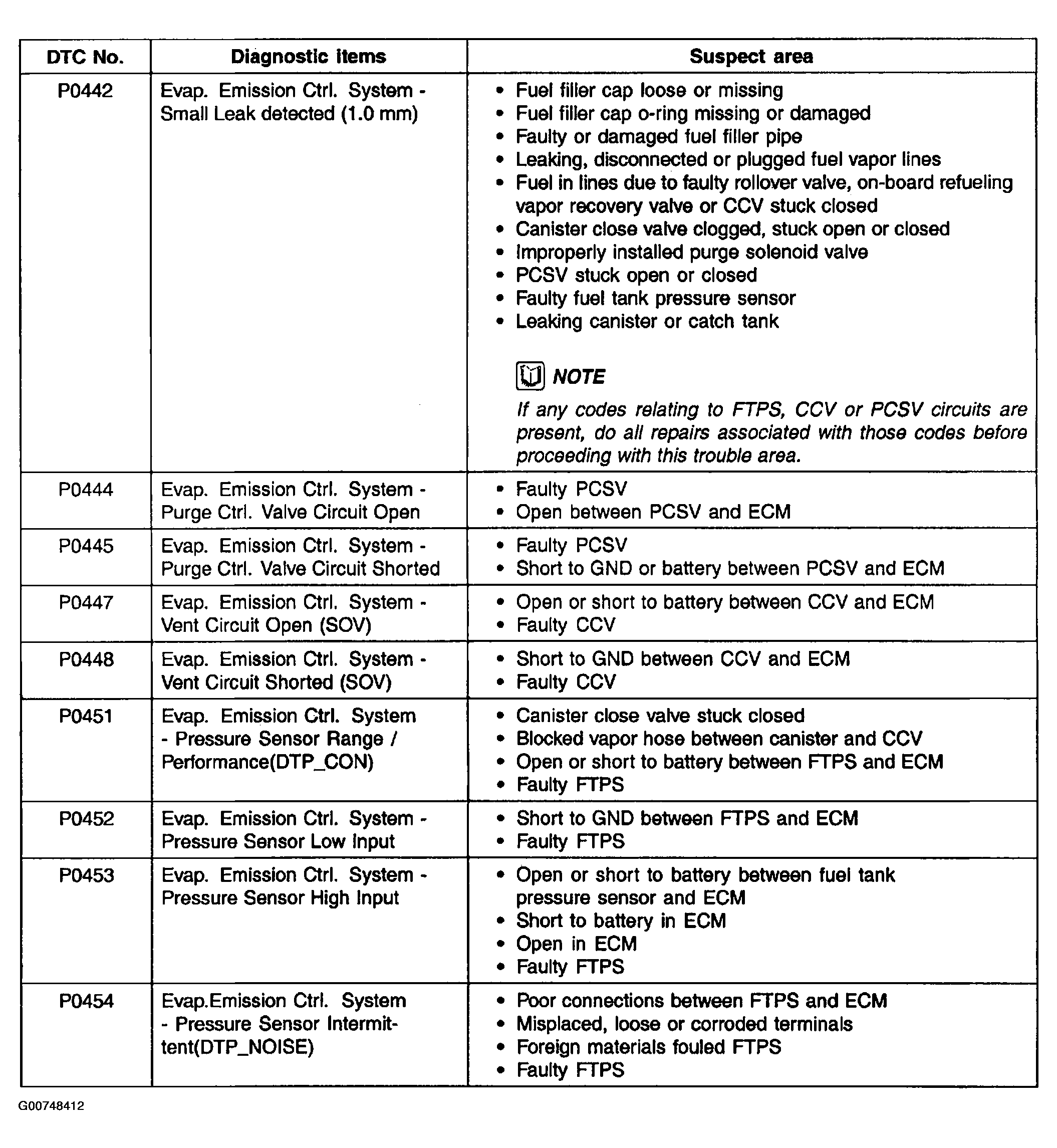

Fig 6: DTC Description/Probable Causes Table (6 Of 8)
Courtesy of HYUNDAI MOTOR CO.

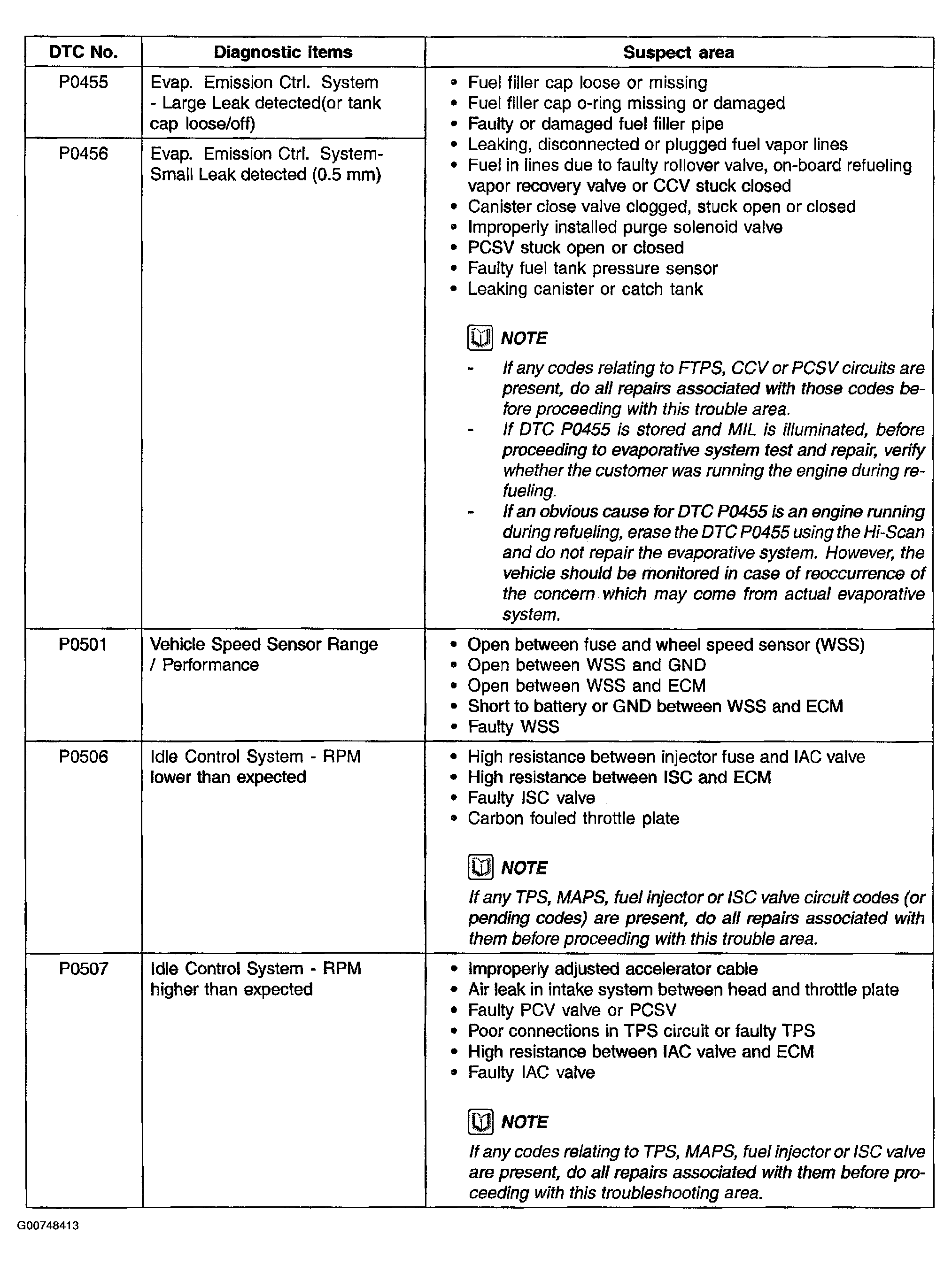

Fig 7: DTC Description/Probable Causes Table (7 Of 8)
Courtesy of HYUNDAI MOTOR CO.

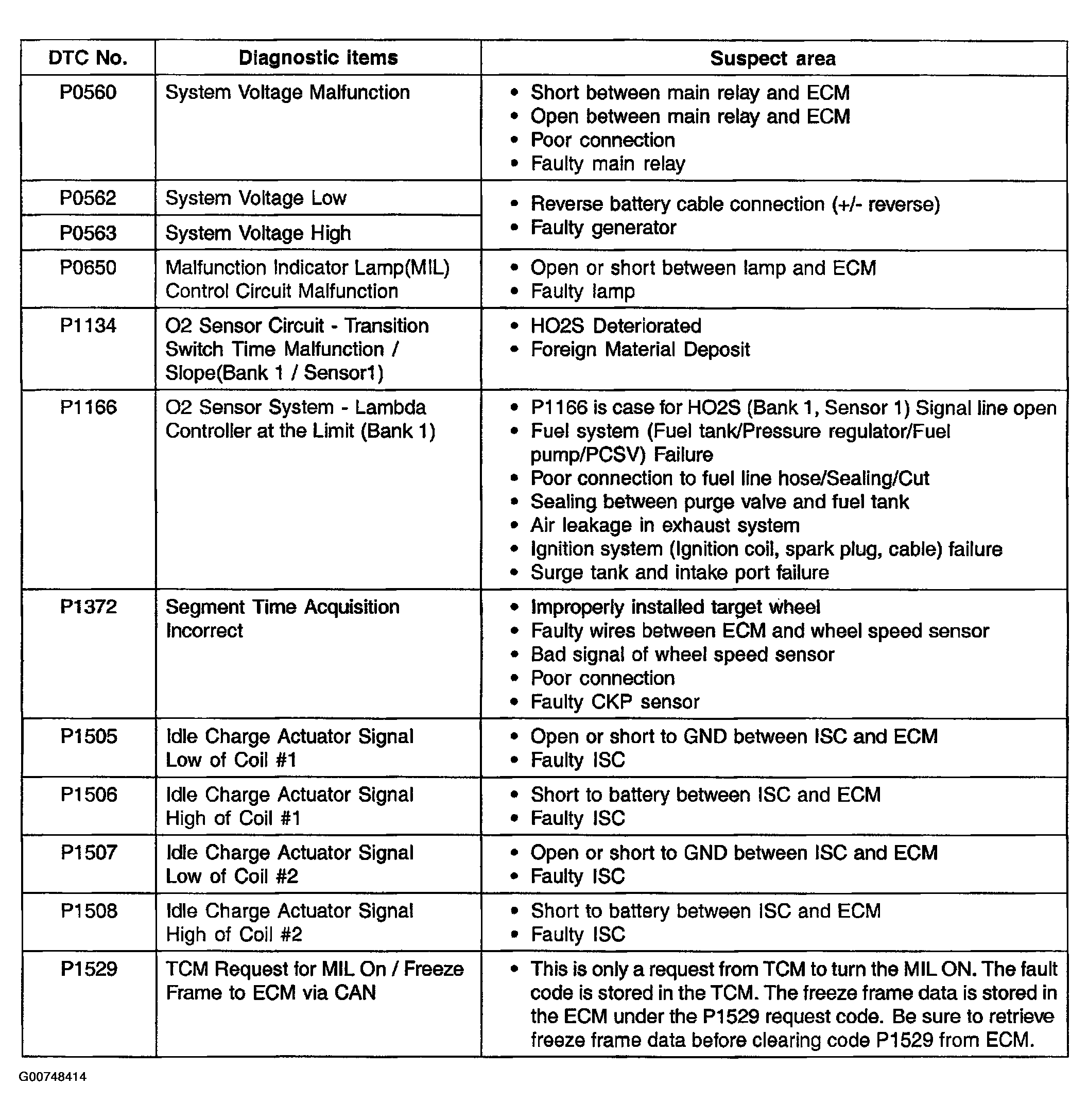

Fig 8: DTC Description/Probable Causes Table (8 Of 8)
