Crankshaft Position Sensor

  1. Disconnect the crankshaft position sensor connector.
  2. Remove the crankshaft position sensor (A).

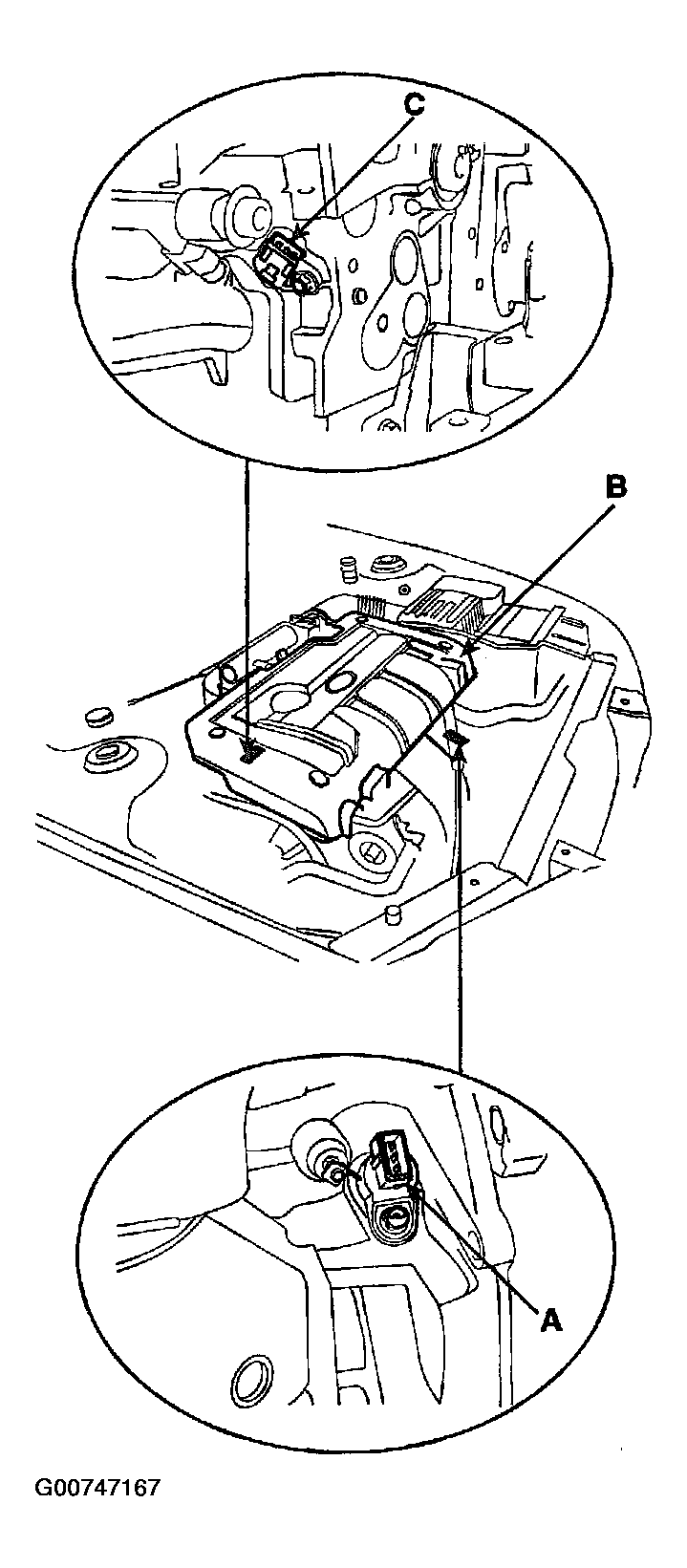

Fig 1: Removing & Installing CKP & CMP Sensors
G00747167Courtesy of HYUNDAI MOTOR CO.
