Power Door Lock Control Module: Testing and Inspection

INSPECTION

1. Remove the negative (-) battery terminal.
2. Remove the center facia panel then remove the audio and the heater control unit.

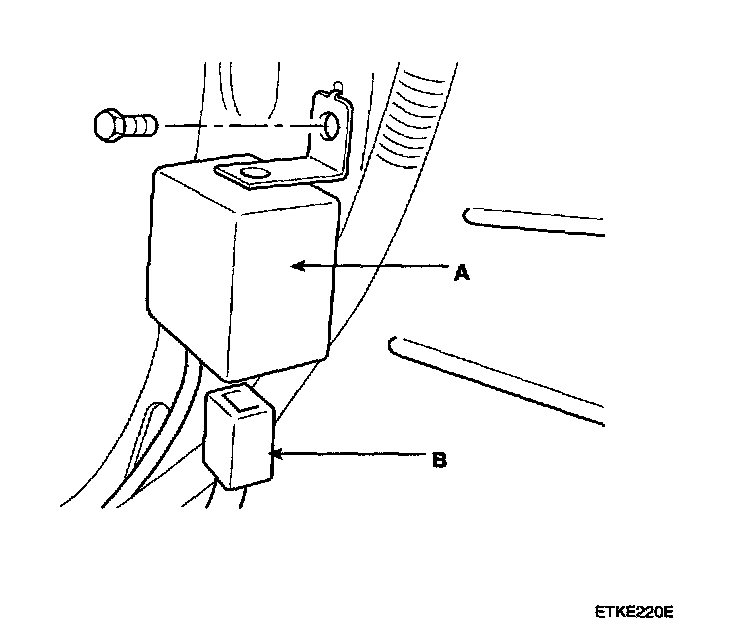

3. Remove the door lock control module (A) from the right side center support bracket.

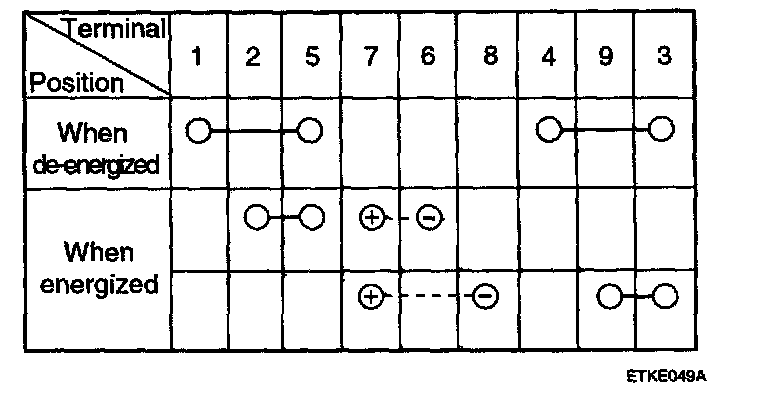

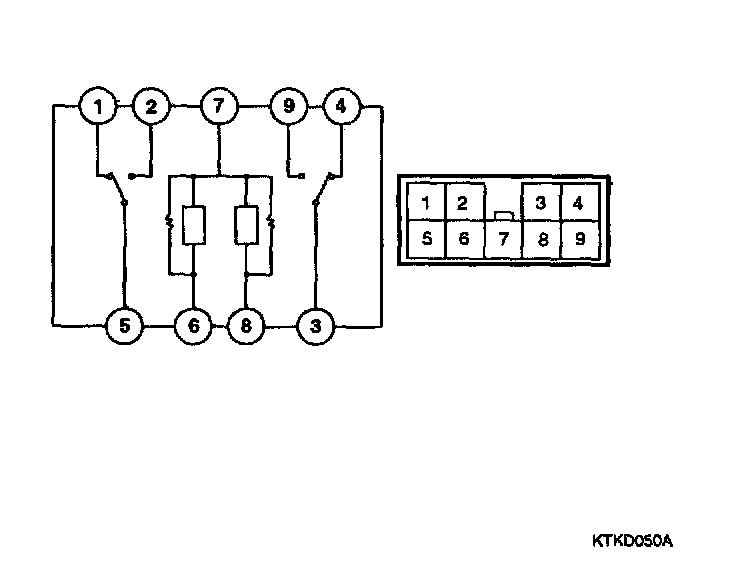

4. Disconnect the 9P connector (B) from the door lock control module, then check for continuity between the terminals.
