Timing Belt

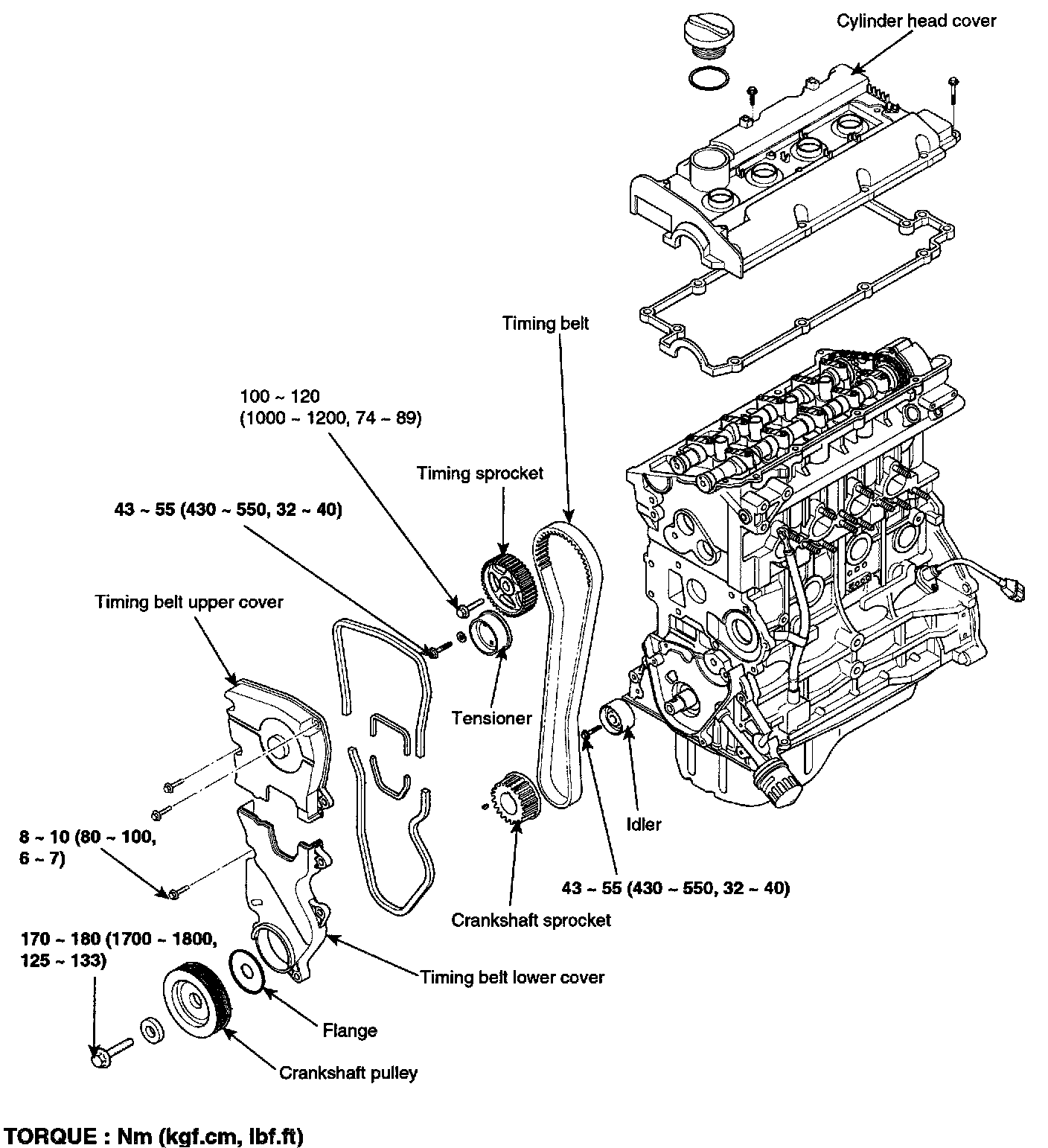

TIMING BELT

Timing Belt replacement interval

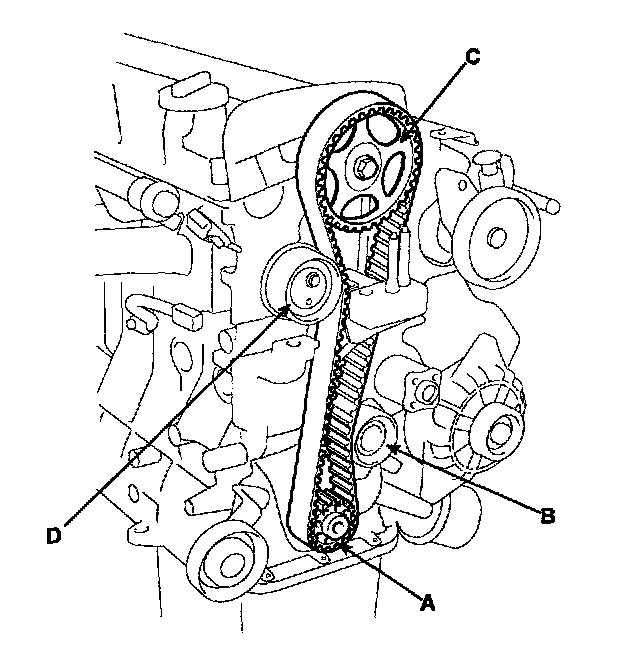

Belt so as not give slack at each center of shaft. Do as following procedures when installing timing belt. Crankshaft sprocket (A) -> Idler pulley (B) -> Camshaft sprocket (C) -> timing belt tensioner (D).
