Alignment: Service and Repair

CHECKING STEERING ANGLE

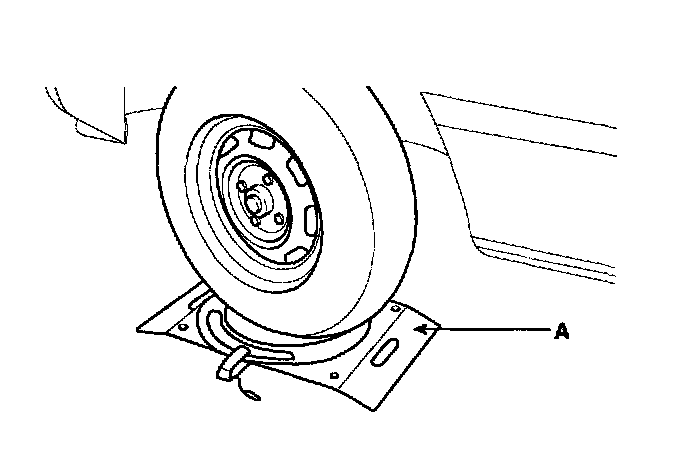

1. Place the front wheel on a turning radius gauge and measure the steering angle.
Standard value
Wheel angle
Inner wheel: 40°1' - 2°
Outer wheel: 33°45'
2. If the measured value is not within the standard value, adjust the linkage.
