Alignment

SERVICE STANDARD

FRONT WHEEL ALIGNMENT






NOTE: Difference between left and right camber angle is within 0°30'. Difference between left and right caster angle is also within 0°30'.

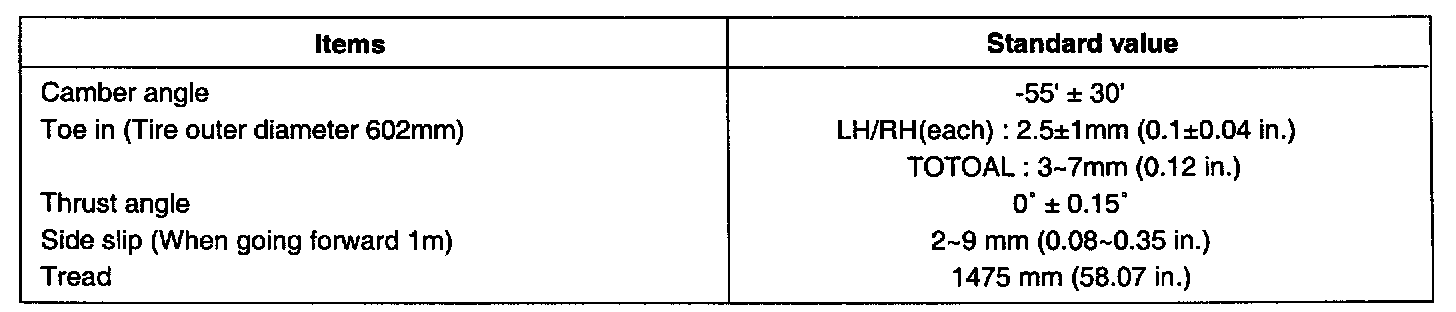

REAR WHEEL ALIGNMENT





NOTE: Difference between left and right camber angle is within 0°30'.
