System Specifications

TIGHTENING TORQUE
Crankshaft pulley bolt 170 - 180 Nm (1700 - 1800 kgf-cm, 125 - 113 ft. lbs.)
Camshaft sprocket bolt 100 - 120 Nm (1000 - 1200 kgf-cm, 74 - 89 ft. lbs.)
Timing belt tensioner bolts 43 - 550 Nm (430 - 550 kgf-cm, 31 - 40 ft. lbs.)
Timing belt cover bolts 8 - 10 Nm (80 - 100 kgf-cm, 6 - 7 ft. lbs.)
Front case bolts 20 - 27 Nm (200 - 270 kgf-cm, 14 - 20 ft. lbs.)
Timing belt idler bolt 43 - 55 Nm (430 - 550 kgf-cm, 31 - 40 ft. lbs.)

Timing Chain

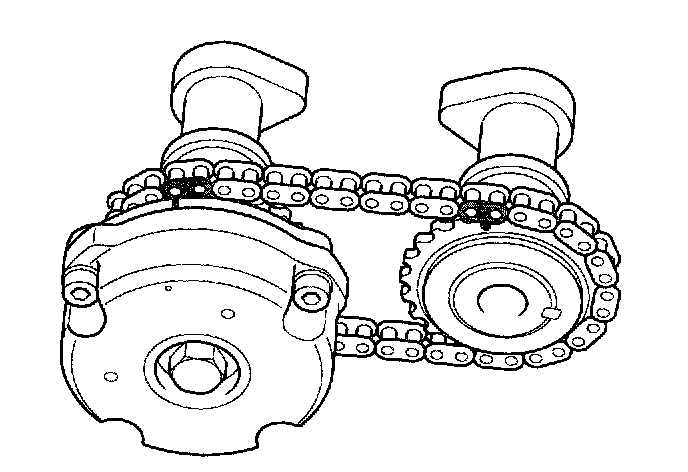

Align the camshaft timing chain with the intake timing chain sprocket and exhaust timing chain sprocket as shown.
