Crankcase Emission Control System: Components

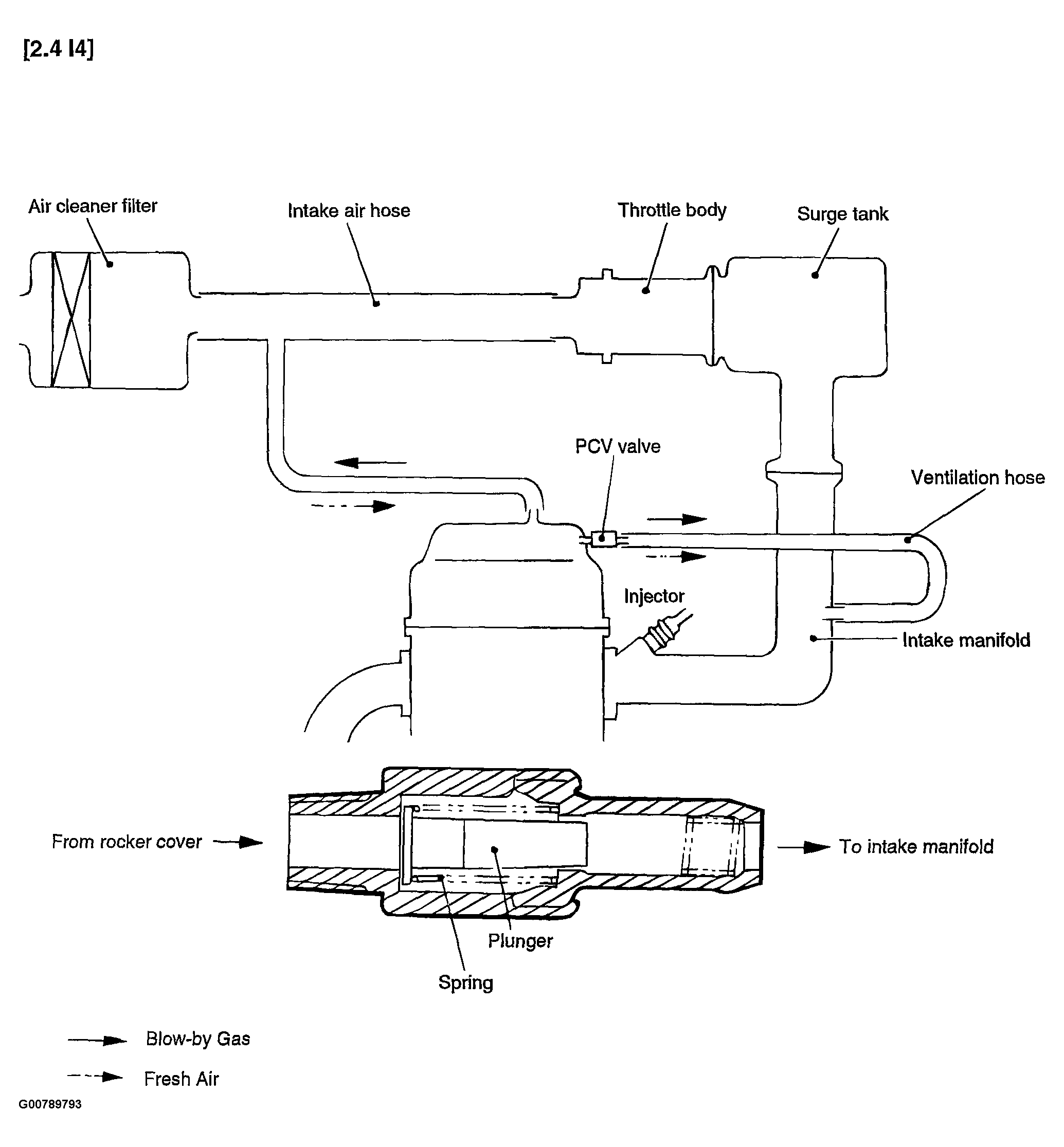

Fig 1: Crankcase Emission Control System Components (2.4L)
Courtesy of HYUNDAI MOTOR CO.

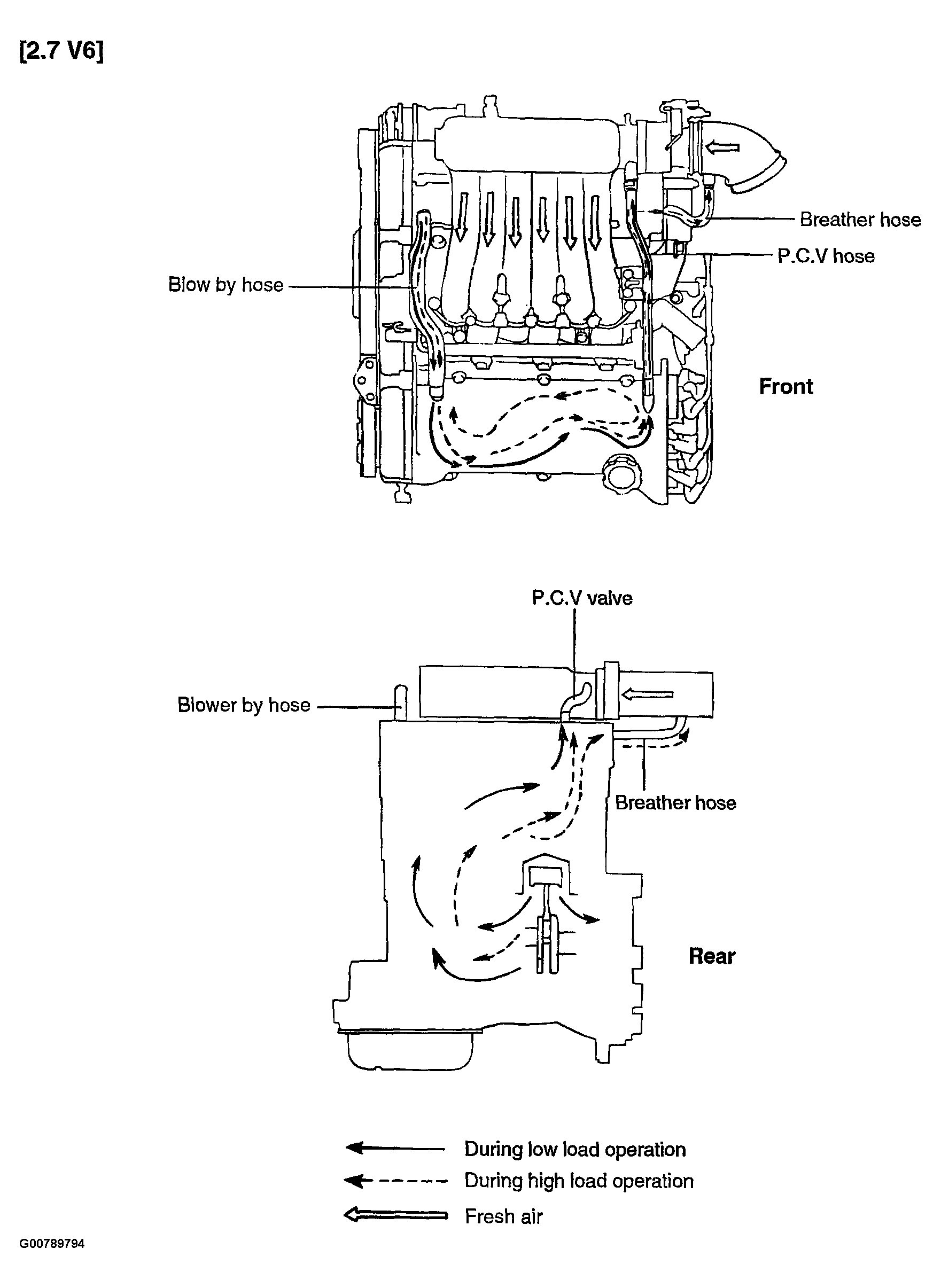

Fig 2: Crankcase Emission Control System Components (2.7L)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
