Rear Wheel Alignment

Rear Wheel Alignment
Toe-In
Standard value: 0 ±2 mm (0 ±0.08 inch)

Note:
1. The rear suspension lower arm mounting cam bolt should be turned an equal amount on both sides during adjustment.
Right wheel: Clockwise direction: toe-in
Left wheel: Clockwise direction: toe-out

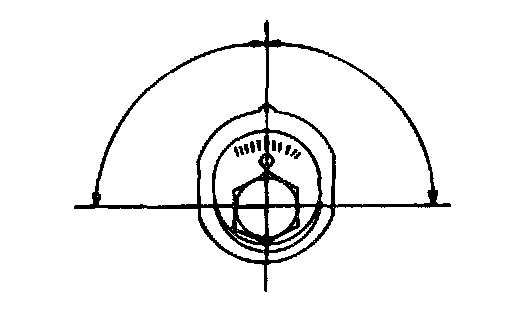

2. The cam bolt should be adjusted within a 90° range left and right from the center position.

Camber
Standard value: 0°30'±30'

Note
1. The rear suspension upper arm mounting cam bolt should be turned an equal amount on both sides during adjustment.
2. Install the left and right springs using the same ID color





3. The cam bolt should be adjusted within a 90° range left and right from the center position.
