Component Tests and General Diagnostics

ANTI-THEFT FUNCTION

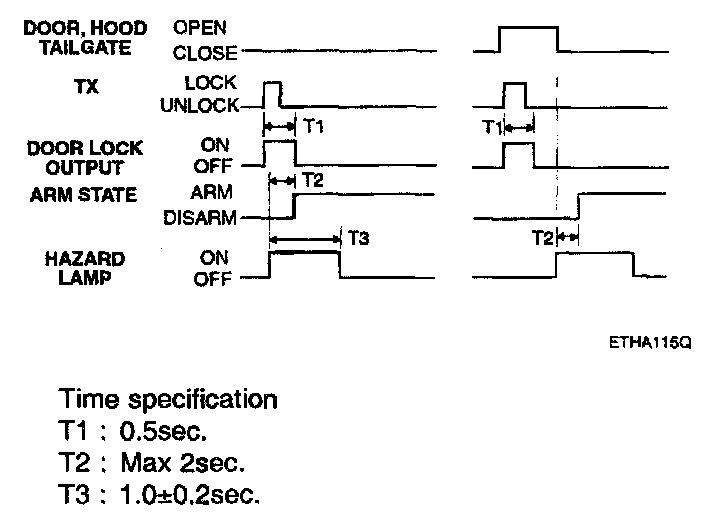

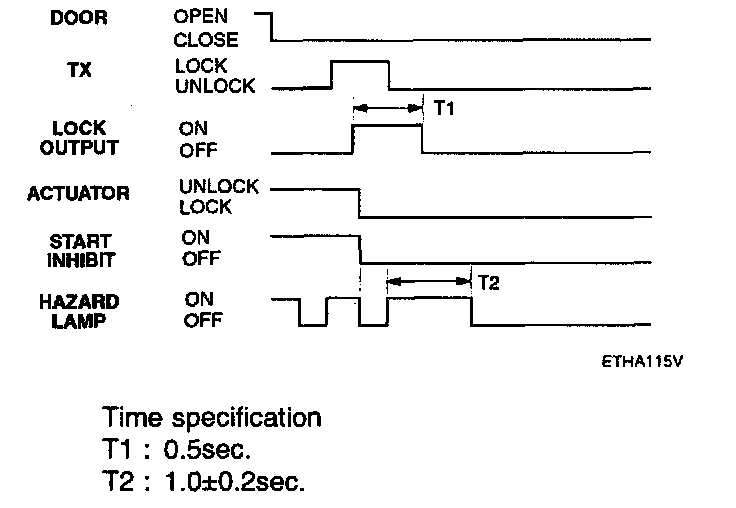

1. Arm function

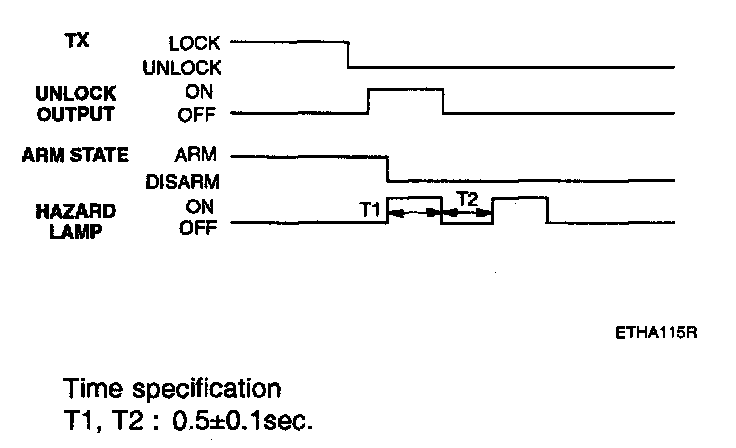

2. Disarm function

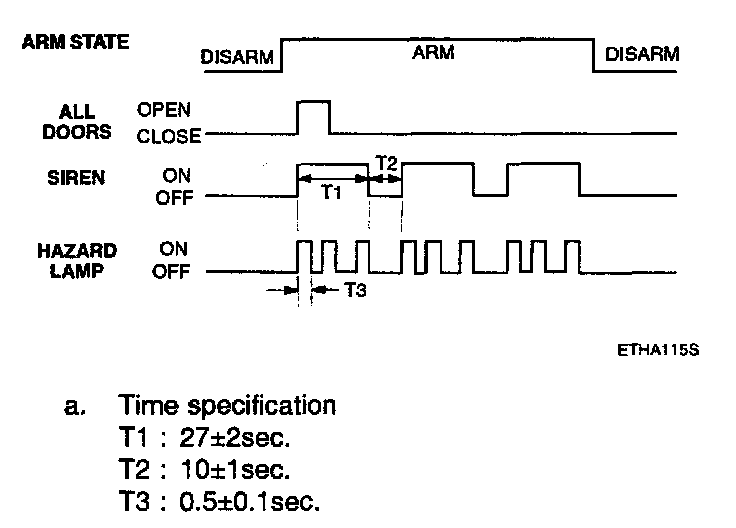

3. Alarm function

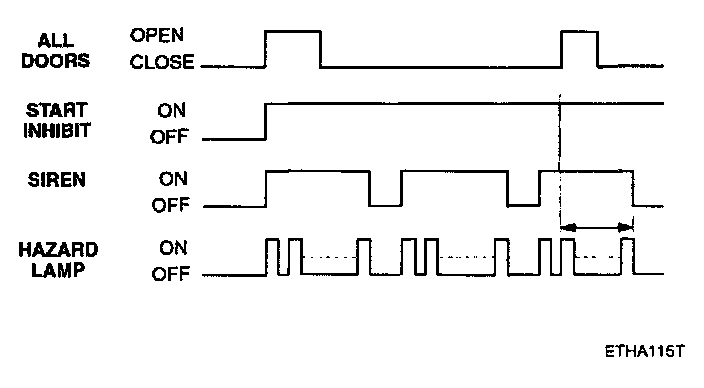

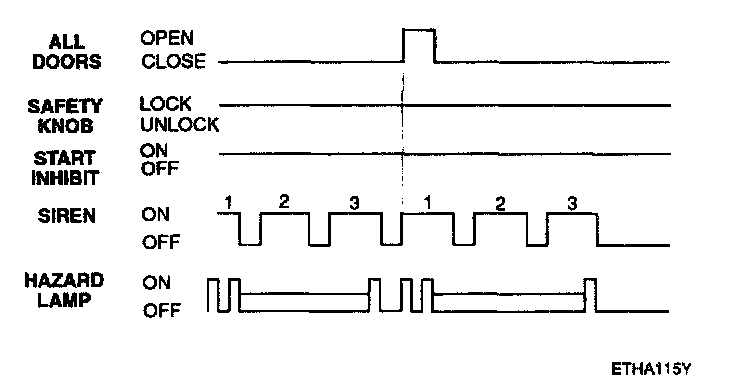

b. New alarm occurs while the alarm is sounding.

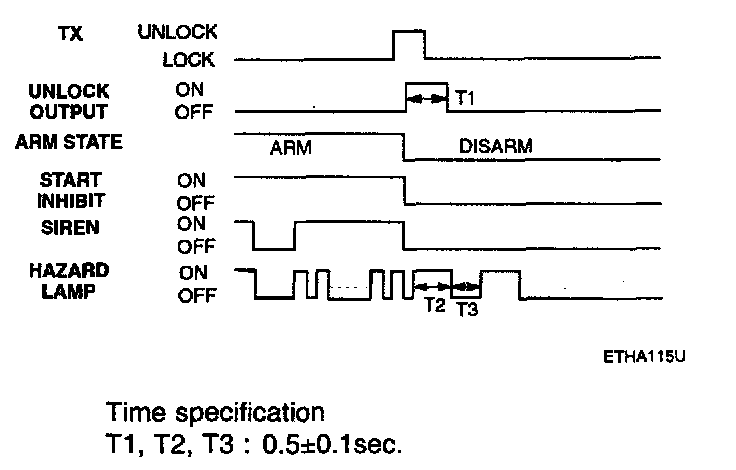

c. Disarmed with TX (Transmitter) while the alarm is sounding.




d. TX (Transmitter) lock button pressed when the door closed while the alarm is sounding.

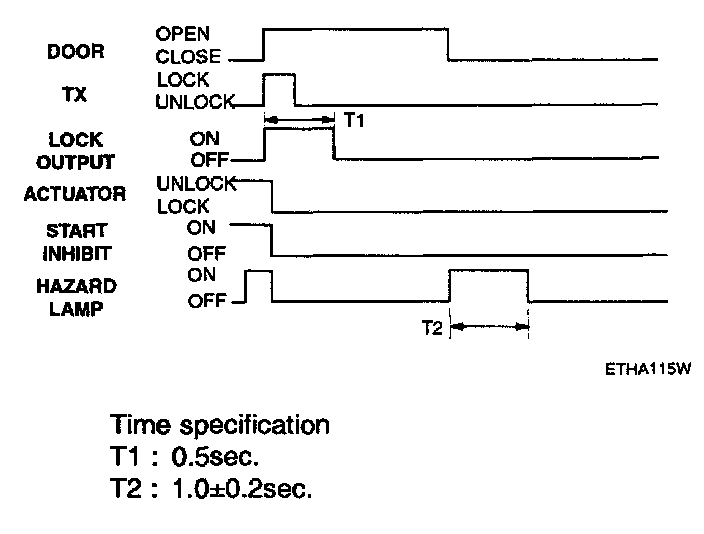

e. TX (Transmitter) lock button pressed when the door opened while the alarm is sounding.

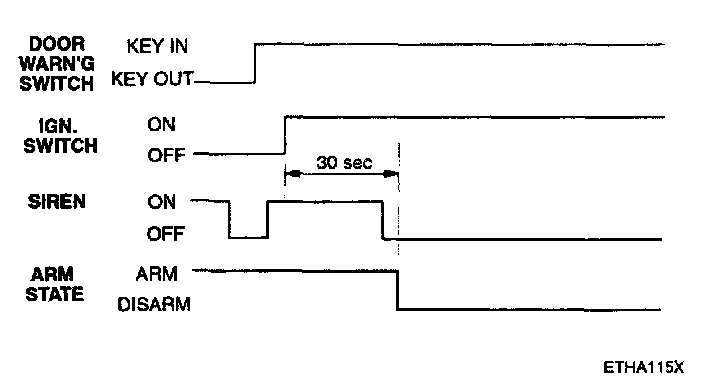

f. Disarmed after 30 sec when the ignition switch is turned on while the alarm is sounding.




g. Start inhibit is "ON" regardless of door latch lock state.

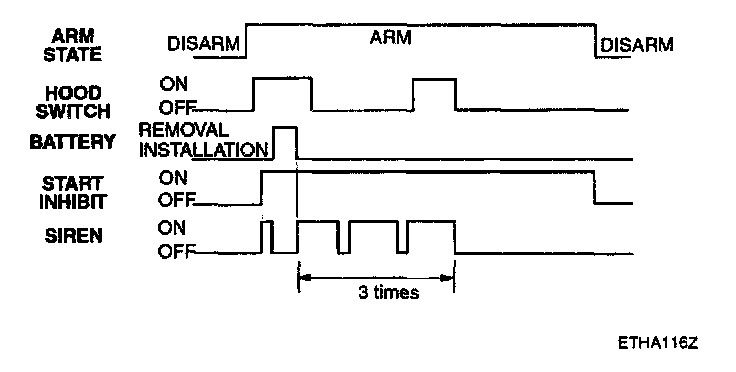

h. Battery is disconnected during the alarm state.
