Component Locations

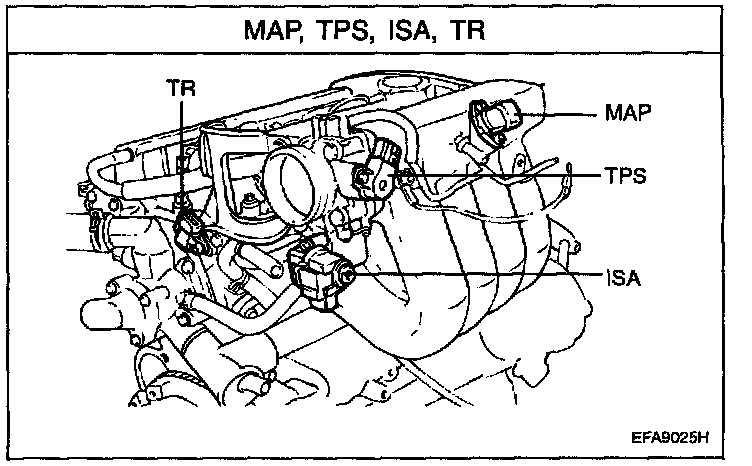

MAP, TPS, ISA, TR:

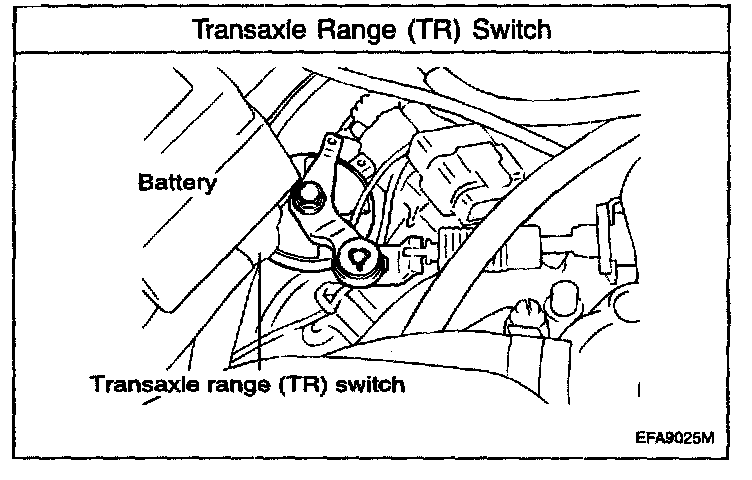

Transaxle Range (TR) Switch:

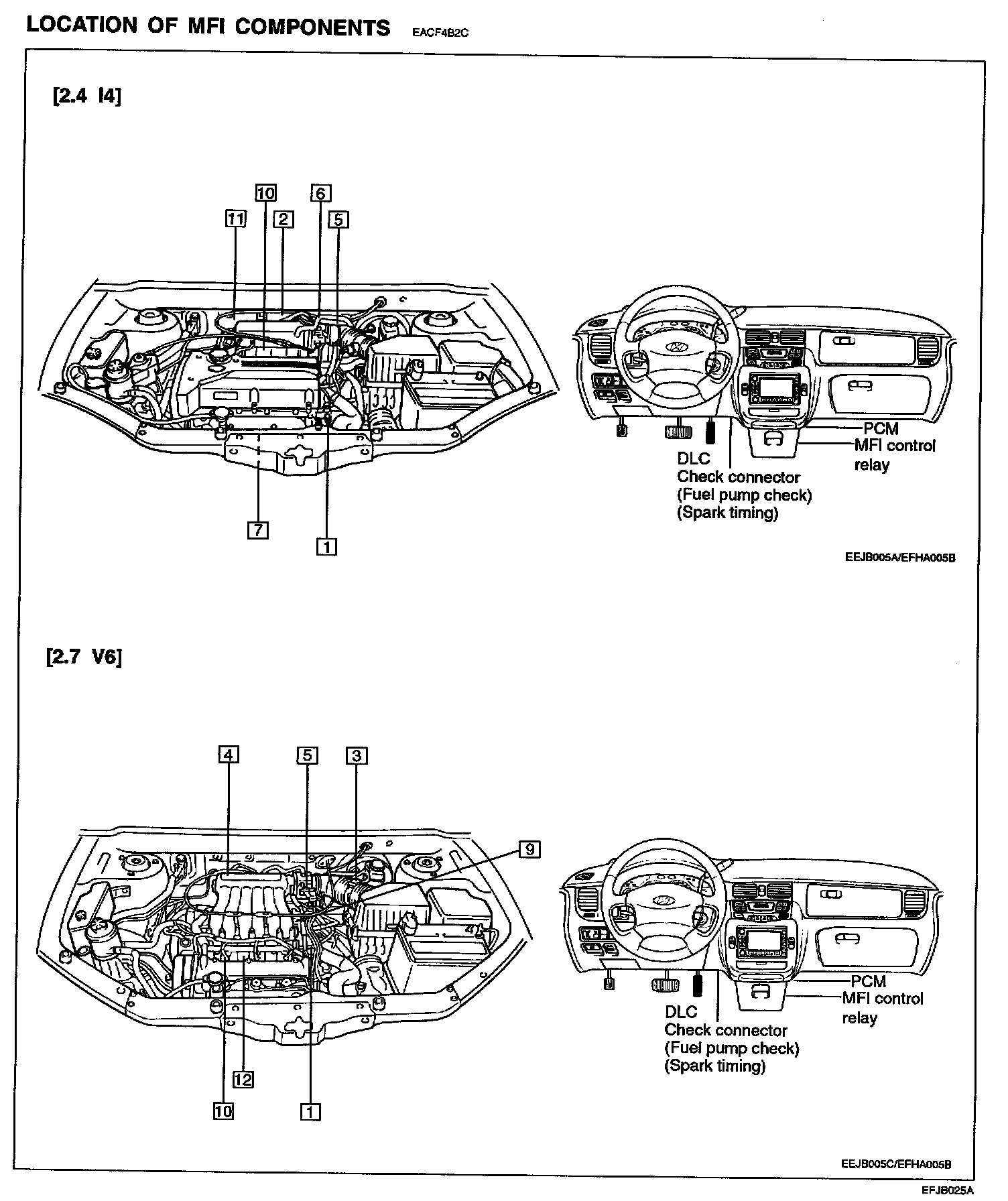

MFI Control System - Components:
