Ignition System
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Ignition System

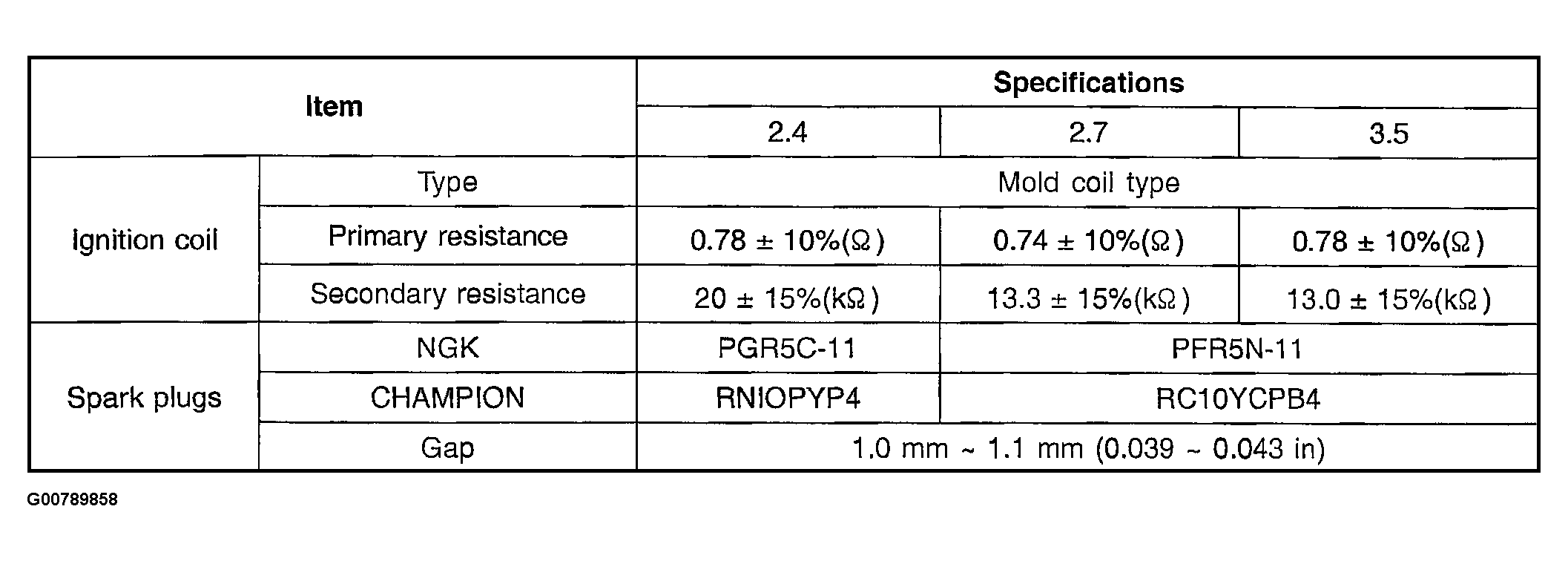

Fig 1: Ignition System Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
