HECU Block Diagram

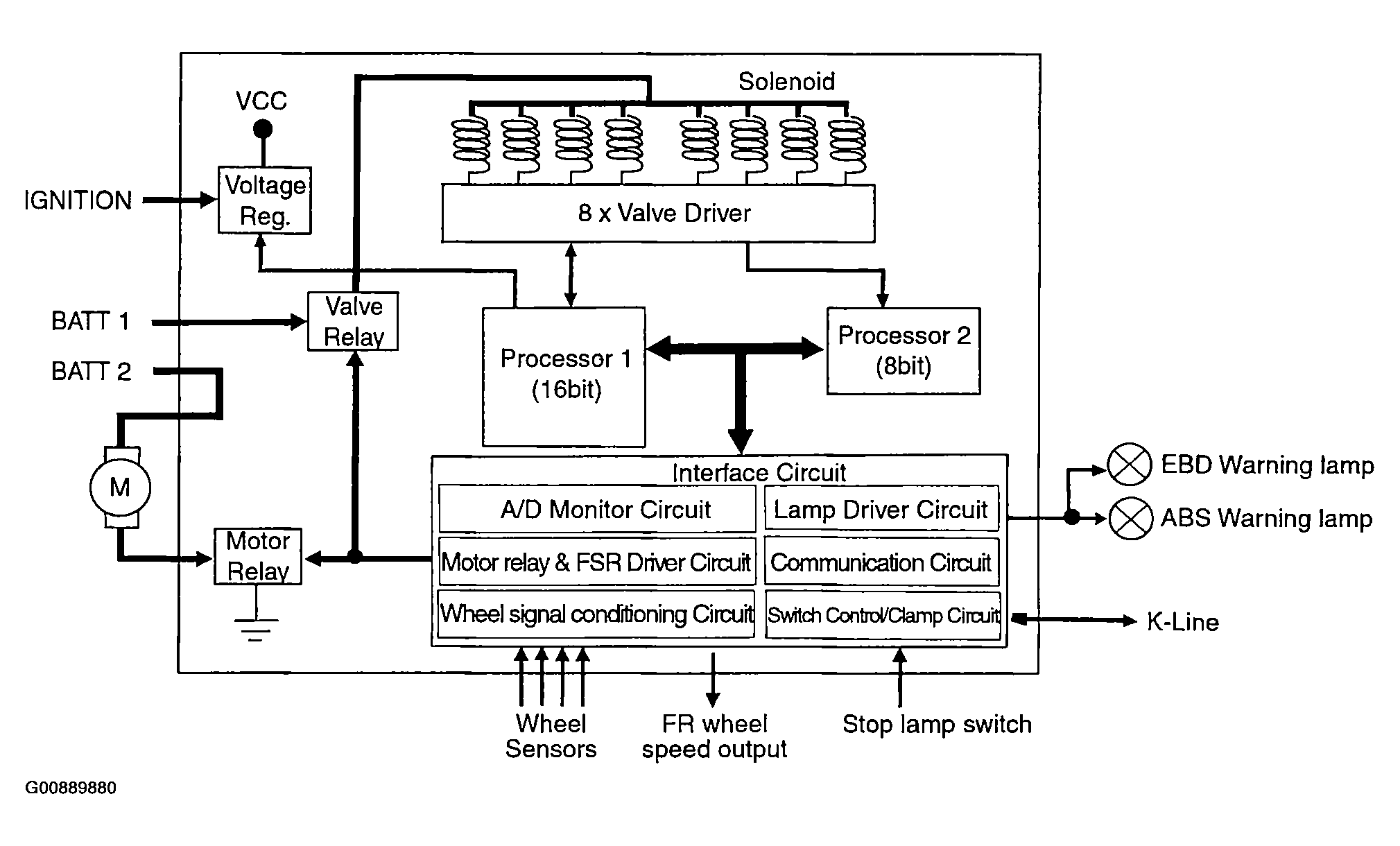

ABS ECU BLOCK DIAGRAM

Fig 1: ABS ECU Block Diagram
Courtesy of HYUNDAI MOTOR CO.

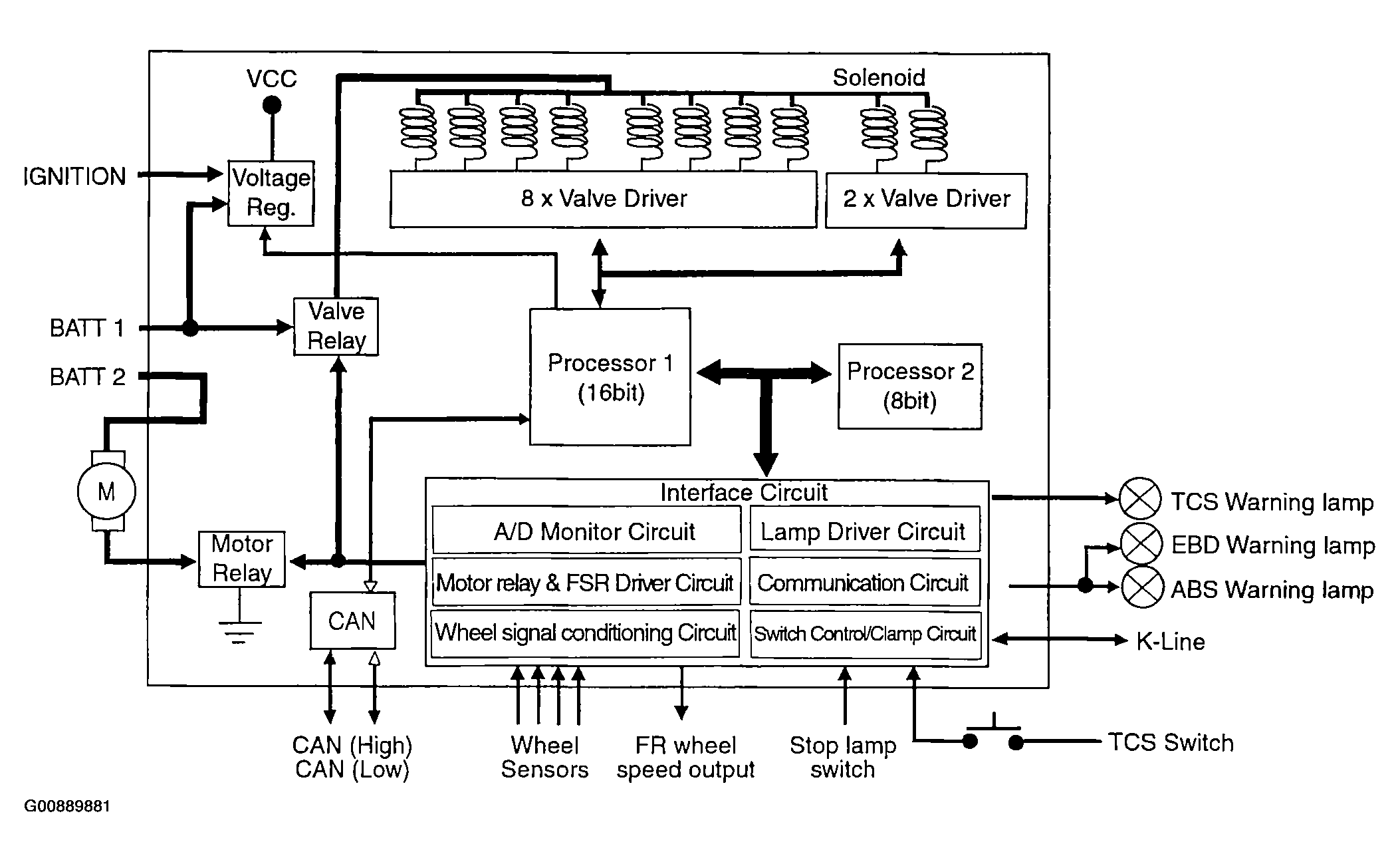

TCS ECU BLOCK DIAGRAM

Fig 2: TCS ECU Block Diagram

Courtesy of HYUNDAI MOTOR CO.
